PMT2 Series
Manufacturer: Delta Electronics
Beta
⌘K

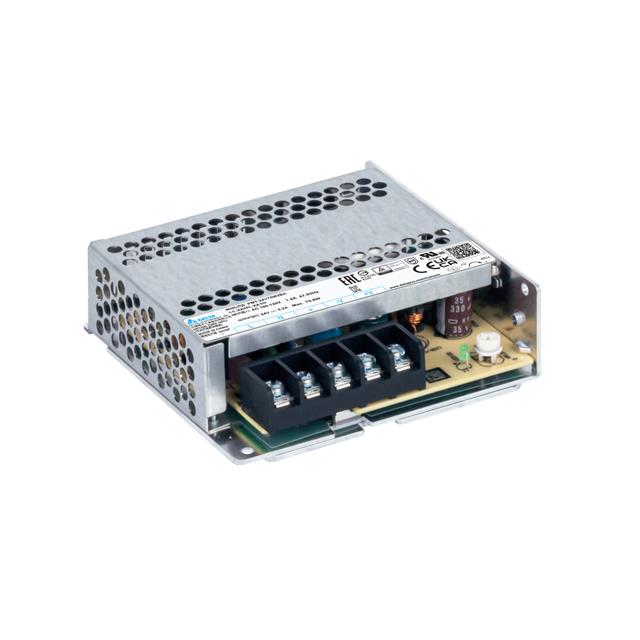

POWER SUPPLY, AC-DC, 15V, 2.4A ROHS COMPLIANT: YES
| Part | Type | Approval Agency | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Mounting Type | Voltage - Isolation | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Outputs | Features | Current - Output 1 | Efficiency | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Enclosed | CB CE cURus EAC KC TUV UKCA | 60335-1 60950-1 62368-1 | 264 VAC | 90 VAC | 3.9 " | 82 mm | 1.14 in | 28.9 mm | 99 mm | 3.23 in | 15 V | Chassis Mount | 4000 V | 36 W | -30 °C | 70 °C | Household Appliances ITE (Commercial) | 1 | Adjustable Output Universal Input | 2.4 A | 87 % | ||
 Delta Electronics | Enclosed | CB CE cURus EAC KC TUV UKCA | 60950-1 62368-1 | 264 VAC | 90 VAC | 3.9 " | 1.18 in | 99 mm | 3.82 in | 24 V | Chassis Mount | 4000 V | 75 W | -30 °C | 70 °C | ITE (Commercial) | 1 | Adjustable Output Universal Input | 3.2 A | 30 mm | 97 mm |
