176975 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
UNIV POWER HDR ASSY 2P BLUE ROHS COMPLIANT: YES
| Part | Applications | Number of Positions | Current Rating (Amps) | Connector Type | Number of Rows | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Style | Contact Finish - Post | Insulation Material | Termination | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Number of Positions Loaded | Shrouding | Contact Type | Fastening Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

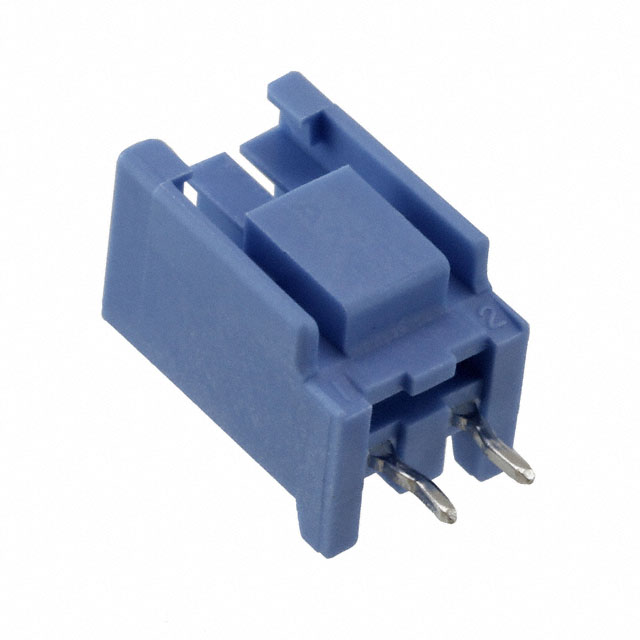

 TE Connectivity AMP Connectors | General Purpose | 2 | Varies by Wire Gauge | Header | 1 | Brass | Through Hole | -30 ░C | 105 ░C | Board to Cable/Wire | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Kinked Pin Solder | Blue | 3.96 mm | 0.156 in | Rectangular | 0.142 in | 3.6 mm | UL94 V-0 | All | Shrouded - 4 Wall | Tab | Locking Ramp | 14 mm | 0.551 " |

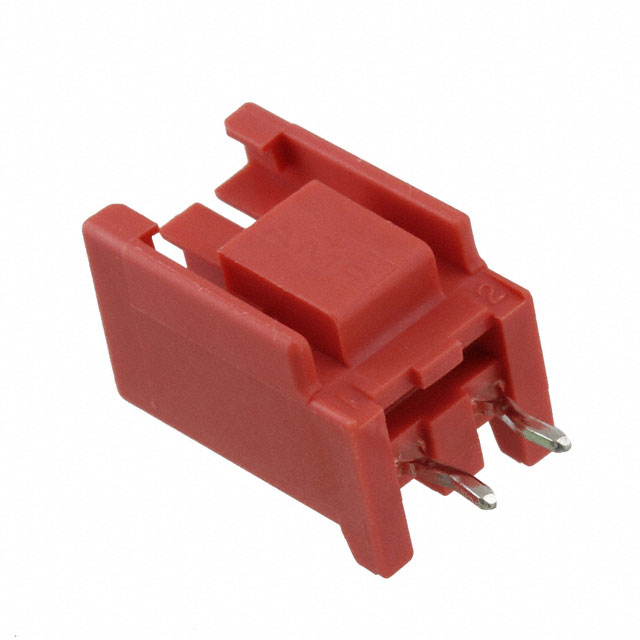

 TE Connectivity AMP Connectors | General Purpose | 2 | Varies by Wire Gauge | Header | 1 | Brass | Through Hole | -30 ░C | 105 ░C | Board to Cable/Wire | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Kinked Pin Solder | Red | 3.96 mm | 0.156 in | Rectangular | 0.142 in | 3.6 mm | UL94 V-0 | All | Shrouded - 4 Wall | Tab | Locking Ramp | 14 mm | 0.551 " |
 TE Connectivity AMP Connectors | General Purpose | 2 | Varies by Wire Gauge | Header | 1 | Brass | Through Hole | -30 ░C | 105 ░C | Board to Cable/Wire | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Solder | Natural | 3.96 mm | 0.156 in | Rectangular | 0.142 in | 3.6 mm | UL94 V-0 | All | Shrouded - 4 Wall | Tab | Locking Ramp | 14 mm | 0.551 " |
