829394 Series

Catalog

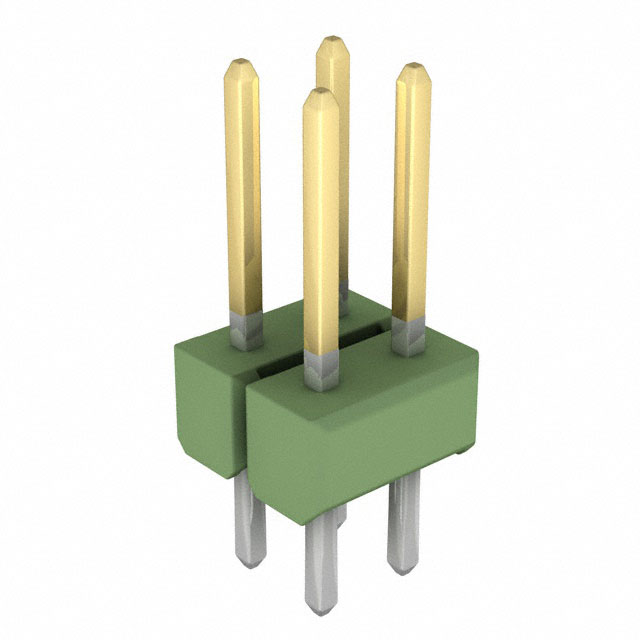

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Number of Rows [custom]	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Shape	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shrouding	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Style	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 829394-2	118.1 µin	3 µm	Push-Pull	All	0.1 in	2.54 mm	Solder	2	Gold	4	3.9 µin	0.099 µm	0.5 in	12.7 mm	5 A	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.268 in	6.8 mm	Header Breakaway	105 ░C	-65 ░C	Phosphor Bronze	Unshrouded	0.132 in	3.35 mm	Tin	Board to Board Cable	Through Hole	0.1 in	2.54 mm	Male Pin	Green	0.1 "	2.54 mm
