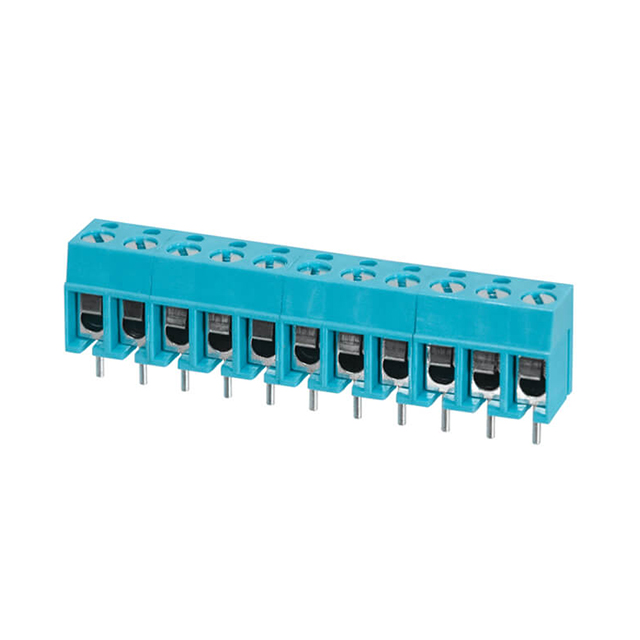

TB001 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREW TYPE, 5.00
| Part | Positions Per Level | Features | Current | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Wire Termination | Voltage | Color | Mating Orientation | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Contact Material - Plating | Housing Material | Torque - Screw | Torque - Screw | Screw Thread | Clamp Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 17 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | |||||||||
Same Sky (Formerly CUI Devices) | 19 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | |||||||||
Same Sky (Formerly CUI Devices) | 14 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 21 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 23 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 20 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
 Same Sky (Formerly CUI Devices) | 11 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 19 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 13 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
Same Sky (Formerly CUI Devices) | 22 | Interlocking (Side) | 15 A | 1 | 22 AWG | 12 AWG | Through Hole | Screw - Leaf Spring Wire Guard | 300 VDC | Blue | Horizontal with Board | 0.197 in | 5 mm | -40 C | 105 ░C | Steel - Zinc Plated | Copper Alloy - Tin Plated | Polybutylene Terephthalate (PBT) | 4.4 Lb-In | 0.5 Nm | M3 | Stainless Steel |
