AMP-HDI Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HIGH SPEED / MODULAR CONNECTORS HDI PIN ASSY 3 ROW 1

Part	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Connector Style	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Color	Connector Type	Number of Positions	Features	Termination	Contact Termination	Type	Pin or Socket
TE Connectivity AMP Connectors 533288-7	3 A	UL94 V-0	-65 ░C	125 °C	0.1 "	2.54 mm	3	Gold	High Density (HDC HDI HPC)	Right Angle Through Hole	30 Áin	0.76 Ám	All	Black	Header Male Pins	150	Mating Guide	Solder
TE Connectivity AMP Connectors 5-533289-5		UL94 V-0	-65 ░C	125 °C	0.1 "	2.54 mm	2	Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Natural	Receptacle Female Sockets	30		Solder

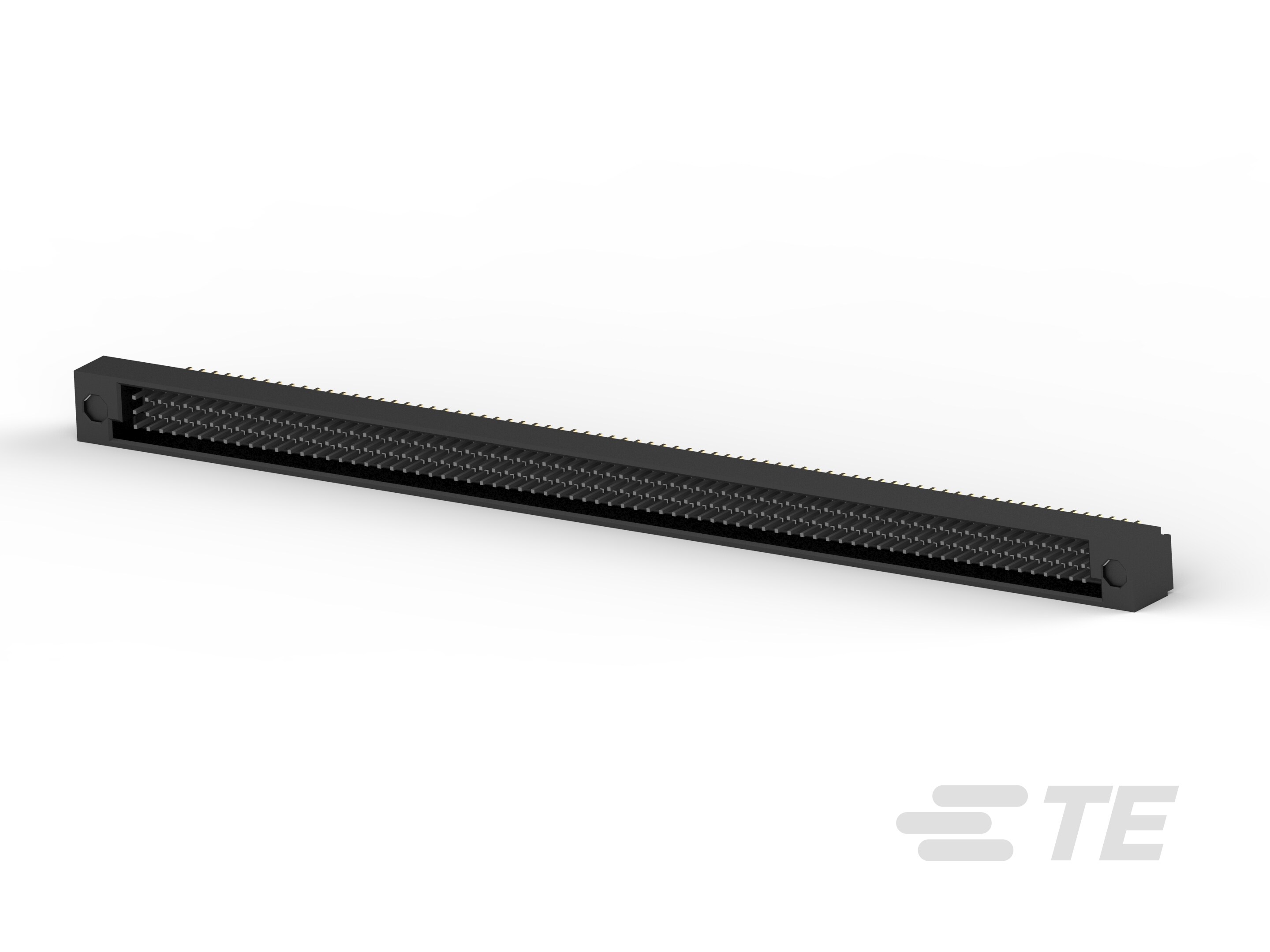

TE Connectivity AMP Connectors 1-532447-2					0.1 "	2.54 mm	3	Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Black	Header Male Pins	225	Mating Guide	Press-Fit
TE Connectivity AMP Connectors 1-532828-0	10 A																		Screw Mount	Power	Pin
TE Connectivity AMP Connectors 1-532433-1					0.1 "	2.54 mm	3	Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Black	Header Male Pins	210	Mating Guide	Solder
TE Connectivity AMP Connectors 1-532828-1								Gold			30 Áin	0.76 Ám							Screw Mount	Power	Pin

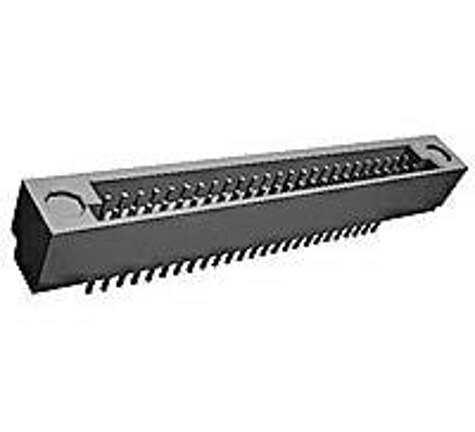

TE Connectivity AMP Connectors 5532430-5					0.1 "	2.54 mm	2	Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Natural	Header Male Pins	60	Mating Guide	Solder
TE Connectivity AMP Connectors 5532448-5					0.1 "	2.54 mm		Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Black	Header Male Pins	160	Mating Guide	Press-Fit
TE Connectivity AMP Connectors 533061-2					0.1 "	2.54 mm	3	Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Black	Header Male Pins	90	Mating Guide	Press-Fit

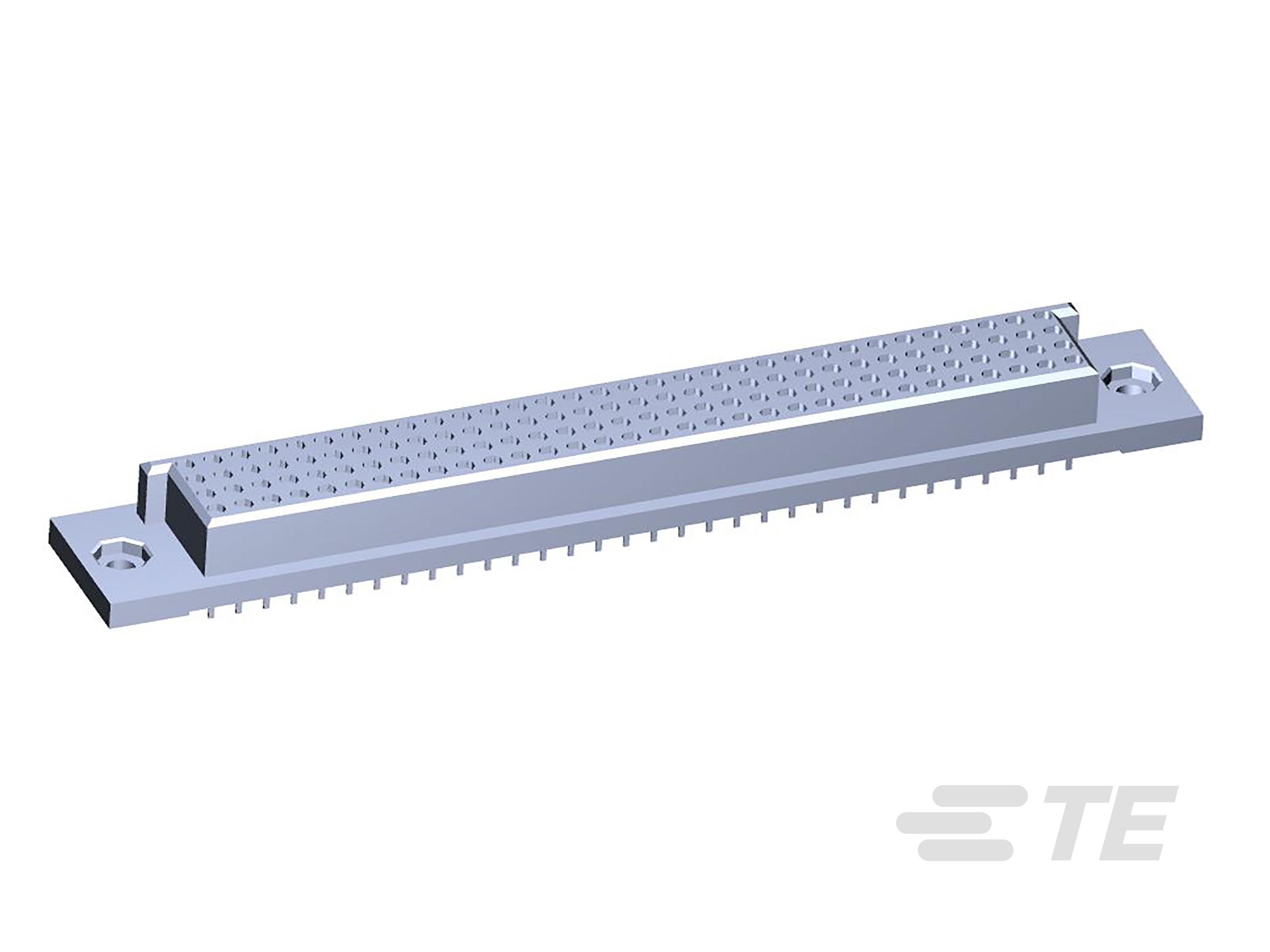

TE Connectivity AMP Connectors 533285-2	3 A		-65 ░C	125 °C	0.1 "	2.54 mm		Gold	High Density (HDC HDI HPC)	Through Hole	30 Áin	0.76 Ám	All	Natural	Receptacle Female Sockets	120	Mating Guide	Solder
