TA6MSH Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

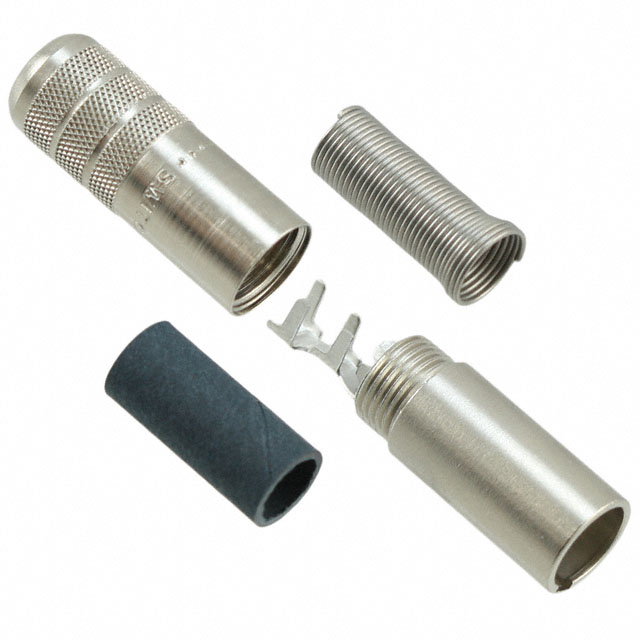

SHIELDED MINI XLR, 6 CONTACTS, MALE, SILVER PLATED CONTACTS, WITH FLEX RELIEF
| Part | Fastening Type | Number of Positions | Mounting Type | Contact Material | Insert Material | Features | Shell Size - Insert | Connector Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Applications | Contact Finish - Mating | Voltage Rating | Shell Material | Color | Shielding | Backshell Material, Plating | Primary Material | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Latch Lock | 6 | Free Hanging (In-Line) | Copper Alloy | Thermoplastic | Backshell Cable Clamp Ground Strain Relief | Mini XLR | Receptacle Male Pins | Keyed | -55 C | 85 °C | Nickel | Audio Medical | Silver | 125 VAC | Copper Alloy | Silver | Shielded | Copper Alloy Nickel | Metal | 1.5 A | UL94 V-0 |
