SZ1.5SMC27AT3G Series

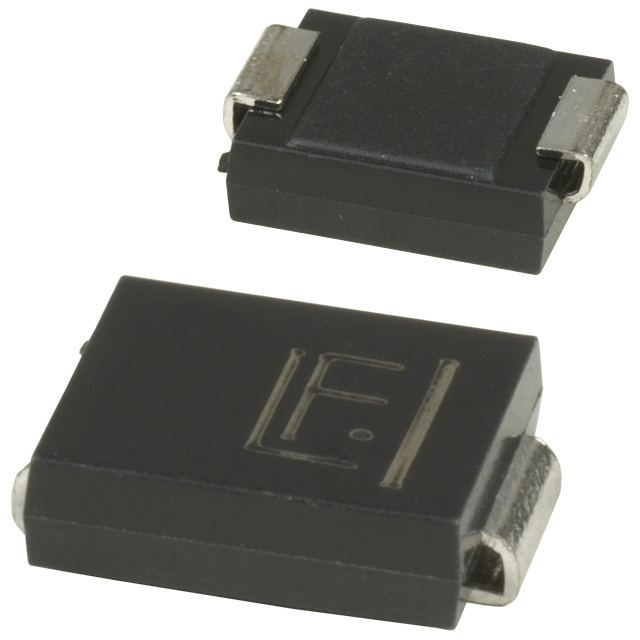

TVS 1.5KW 480V 10%UNI DO-214AB TR13 RoHS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

TVS 1.5KW 480V 10%UNI DO-214AB TR13 RoHS

...

Part	Mounting Type	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Applications	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp
Littelfuse/Commercial Vehicle Products 1.5SMC33	Surface Mount	1.5 kW	1500 W	33.3 A	1	29.75 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	28.2 V	DO-214AB (SMCJ)	47.99 V
Littelfuse/Commercial Vehicle Products 1.5SMC20A	Surface Mount	1.5 kW	1500 W	54.9 A	1	19 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	17.1 V	DO-214AB (SMCJ)	27.7 V
Littelfuse/Commercial Vehicle Products 1.5SMC51C	Surface Mount	1.5 kW	1500 W	21.7 A		45.95 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	43.6 V	DO-214AB (SMCJ)	73.61 V	1
Littelfuse/Commercial Vehicle Products 1.5SMC480	Surface Mount	1.5 kW	1500 W	2.3 A	1	432 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C		DO-214AB (SMCJ)	690.9 V
Littelfuse/Commercial Vehicle Products 1.5SMC6.8A	Surface Mount	1.5 kW	1500 W		1	6.45 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	5.8 V	DO-214AB (SMCJ)	10.5 V
Littelfuse/Commercial Vehicle Products 1.5SMC7.5AT3G	Surface Mount	1.5 kW	1500 W	132 A	1	7.13 V	General Purpose	DO-214AB SMC	Zener	-65 °C	150 °C	6.4 V	SMC	11.3 V
Littelfuse/Commercial Vehicle Products 1.5SMC12CA	Surface Mount	1.5 kW	1500 W	91 A		11.4 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	10.2 V	DO-214AB (SMCJ)	16.7 V	1
Littelfuse/Commercial Vehicle Products 1.5SMC220	Surface Mount	1.5 kW	1500 W	4.6 A	1	198 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C		DO-214AB (SMCJ)			344.4 V
Littelfuse/Commercial Vehicle Products 1.5SMC56CA	Surface Mount	1.5 kW	1500 W	19.7 A		53.2 V	General Purpose	DO-214AB SMC	Zener	-55 °C	150 °C	47.8 V	DO-214AB (SMCJ)		1	77 V
Littelfuse/Commercial Vehicle Products 1.5SMC68AT3G	Surface Mount	1.5 kW	1500 W	16.3 A	1	64.6 V	General Purpose	DO-214AB SMC	Zener	-65 °C	150 °C	58.1 V	SMC	92 V

Catalog

TVS 1.5KW 480V 10%UNI DO-214AB TR13 RoHS

Key Features

• 1.5 kW peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %

• Excellent clamping capability

• Low incremental surge resistance

• Typical IRless than 1μA when VBRmin>12V

• For surface mounted applications to optimize board space

• Low profile package

• Built-in strain relief

• Typical failure mode is short from over-specified voltage or current

• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

• IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)

Description

This series will be End of Life (EOL) on December 31, 2017 and is not recommended for new designs. Replacement will be the 1.5SMC series . The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in Littelfuse's exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
