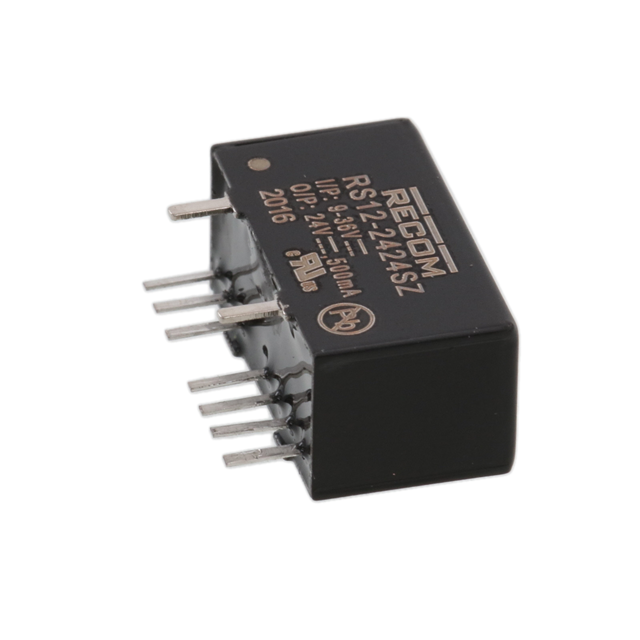

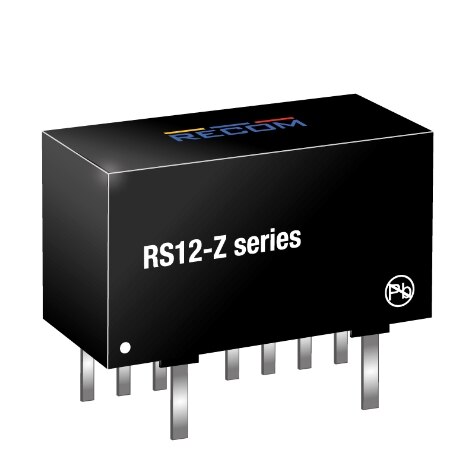

RS12-Z Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 4:1, 12 W, 1 OUTPUT, 12 V
| Part | Approval Agency | Number of Outputs | Features | Current - Output (Max) [Max] | Standard Number | Voltage - Output 1 | Package / Case | Efficiency | Voltage - Input (Min) [Min] | Power (Watts) | Type | Voltage - Input (Max) [Max] | Mounting Type | Control Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | CB cURus | 1 | Remote On/Off | 1 A | 62368-1 | 12 V | 8-SIP Module 7 Leads | 88 % | 9 V | 12 W | Isolated Module | 36 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 1 A | 62368-1 | 12 V | 8-SIP Module 7 Leads | 88 % | 18 V | 12 W | Isolated Module | 75 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 500 mA | 62368-1 | 24 V | 8-SIP Module 7 Leads | 89 % | 9 V | 12 W | Isolated Module | 36 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
 Recom Power | CB cURus | 1 | Remote On/Off | 2.4 A | 62368-1 | 3.3 V | 8-SIP Module 7 Leads | 85 % | 18 V | 7.9 W | Isolated Module | 75 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
 Recom Power | CB cURus | 1 | Remote On/Off | 0.8 A | 62368-1 | 15 V | 8-SIP Module 7 Leads | 88 % | 18 V | 12 W | Isolated Module | 75 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 2.4 A | 62368-1 | 3.3 V | 8-SIP Module 7 Leads | 85 % | 9 V | 7.9 W | Isolated Module | 36 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 2.4 A | 62368-1 | 5 V | 8-SIP Module 7 Leads | 88 % | 18 V | 12 W | Isolated Module | 75 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
 Recom Power | CB cURus | 1 | Remote On/Off | 0.8 A | 62368-1 | 15 V | 8-SIP Module 7 Leads | 88 % | 9 V | 12 W | Isolated Module | 36 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 2.4 A | 62368-1 | 5 V | 8-SIP Module 7 Leads | 88 % | 9 V | 12 W | Isolated Module | 36 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
Recom Power | CB cURus | 1 | Remote On/Off | 500 mA | 62368-1 | 24 V | 8-SIP Module 7 Leads | 89 % | 18 V | 12 W | Isolated Module | 75 V | Through Hole | Active Floating Enable | 12.6 mm | 0.38 " | 21.8 mm | 0.49 " | 9.6 mm | 0.86 " | -40 C | 75 ░C | 3000 V | ITE (Commercial) |
