AEP190 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

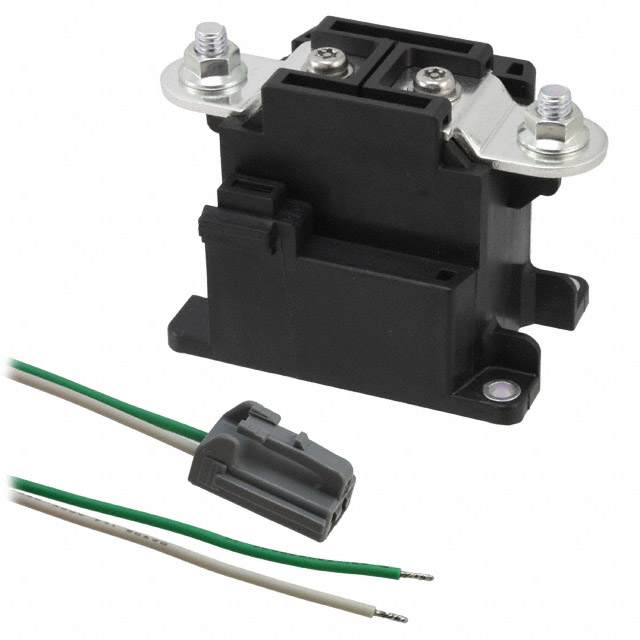

POWER RELAY, SPST-NO, 24VDC, FLANGE ROHS COMPLIANT: YES
| Part | Coil Resistance | Mounting Type | Coil Current | Load - Max Switching | Seal Rating | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Voltage | Release Time | Contact Form | Contact Rating (Current) | Relay Type | Operate Time | Must Operate Voltage | Termination Style | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 12.63 Ohms | Chassis Mount | 1.9 A | 83100 VA | Sealed - Hermetically | 277 VAC 400 VDC | 80 °C | -40 C | Non Latching | 24 VDC | 30 ms | SPST-NO (1 Form A) | 300 A | General Purpose | 50 ms | 18 VDC | Stud | 1.92 VDC |
