C5P0304 Series

Catalog

SWITCH ROTARY 2-4POS 1A 125V

Part	Panel Cutout Dimensions [diameter]	Depth Behind Panel [z]	Actuator Length [x]	Contact Material	Angle of Throw	Contact Finish	Termination Style	Contact Timing	Circuit per Deck	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Number of Poles per Deck	Features	Current Rating (Amps)	Number of Decks [custom]	Number of Positions [Min]	Number of Positions [Max]	Index Stops	Actuator Type
Electroswitch C5P0304N-RA	9.78 mm	14.1 mm	14.29 mm	Brass	30 °	Silver	PC Pin	Non-Shorting (BBM)	3P4T	125 V	28 V	Panel Mount Through Hole	3	Sealed	1 A	1	2	4	Adjustable	Flatted (6.35mm Dia)

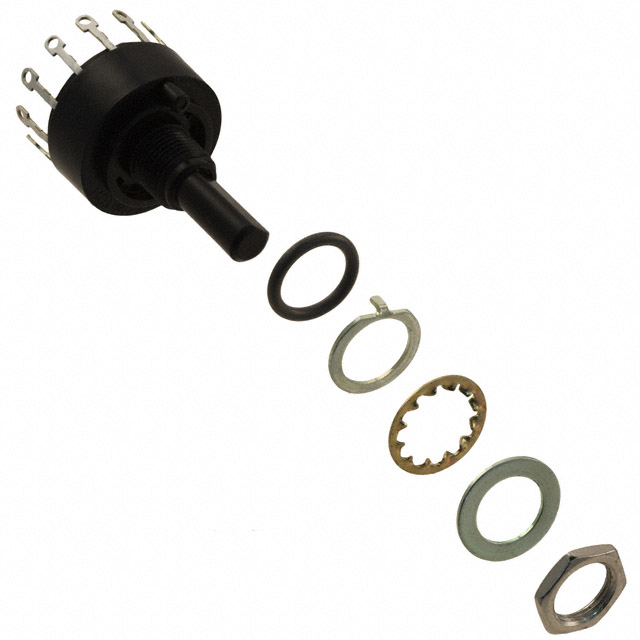

Electroswitch C5P0304N-A	9.78 mm	20.07 mm	14.29 mm	Brass	30 °	Silver	Solder Lug	Non-Shorting (BBM)	3P4T	125 V	28 V	Panel Mount	3	Sealed	1 A	1	2	4	Adjustable	Flatted (6.35mm Dia)
