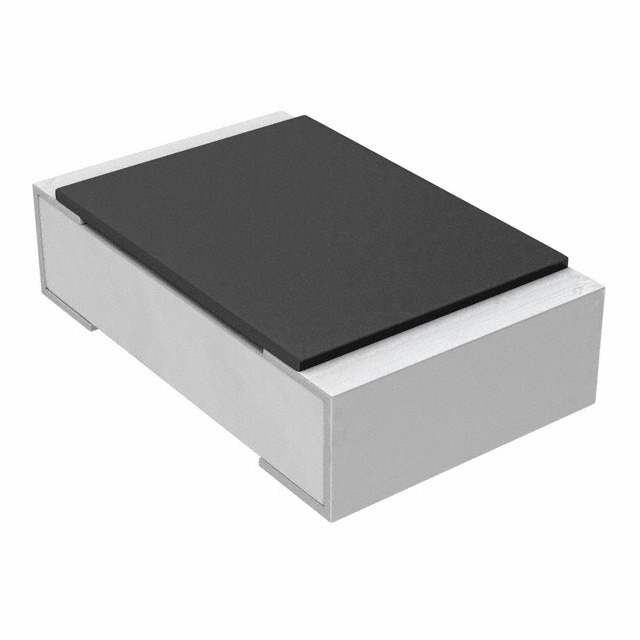

AC Series

Manufacturer: YAGEO

Catalog

Catalog

THICK FILM RESISTORS - SMD 10 OHMS 62.5 MW 0402 5% AEC-Q200 STANDARD POWER VERSION

...

Part	Features	Composition	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Resistance	Tolerance	Ratings	Supplier Device Package	Size / Dimension [y]	Package / Case
YAGEO AC0402JR-0710RL	Automotive AEC-Q200 Moisture Resistant	Thick Film	0402	0.015 "	0.37 mm	100 ppm/°C	2	155 C	-55 C	0.063 W	0.0625 W	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	10 Ohms	5 %
YAGEO AC0402FR-7W5K36L	Automotive AEC-Q200 Moisture Resistant	Thick Film	0402	0.015 "	0.37 mm	100 ppm/°C	2	155 C	-55 C	0.125 W	0.125 W	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	5.36 kOhms	1 %	AEC-Q200
YAGEO AC2010FK-7W510RL	Automotive AEC-Q200 Moisture Resistant	Thick Film		0.026 in	0.65 mm	100 ppm/°C	2	155 C	-55 C	1.25 W		0.098 in	2.5 mm	0.197 in	5 mm	2010 (5025 Metric)	510 Ohms	1 %	AEC-Q200	2010
YAGEO AC0402FR-7W82RL	Automotive AEC-Q200 Moisture Resistant	Thick Film	0402	0.015 "	0.37 mm	100 ppm/°C	2	155 C	-55 C	0.125 W	0.125 W	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	82 Ohms	1 %	AEC-Q200
YAGEO AC0402FR-7W93R1L	Automotive AEC-Q200 Moisture Resistant	Thick Film	0402	0.015 "	0.37 mm	100 ppm/°C	2	155 C	-55 C	0.125 W	0.125 W	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	93.1 Ohms	1 %
YAGEO AC0402FR-071M15L	Automotive AEC-Q200 Moisture Resistant	Thick Film	0402	0.015 "	0.37 mm	100 ppm/°C	2	155 C	-55 C	0.063 W	0.0625 W	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	1.15 MOhms	1 %	AEC-Q200
YAGEO AC0603FR-134K7L		Thick Film		0.022 in	0.55 mm	100 ppm/°C	2	155 C	-55 C	0.1 W	0.1 W	0.031 in		0.063 "	1.6 mm	0603	4.7 kOhms	1 %			0.8 mm	1608 Metric
YAGEO AC0805JR-0711KL	Automotive AEC-Q200 Moisture Resistant	Thick Film	0805	0.024 in	0.6 mm	100 ppm/°C	2	155 C	-55 C	0.125 W	0.125 W	0.049 "	1.25 mm	0.079 in	2 mm	0805	11 kOhms	5 %
YAGEO AC2512JK-074R7L	Automotive AEC-Q200 Moisture Resistant	Thick Film		0.026 in	0.65 mm	200 ppm/°C	2	155 C	-55 C	1 W		0.122 in	3.1 mm	0.25 in	6.35 mm	2512 2512 (6432 Metric)	4.7 Ohms	5 %	AEC-Q200	2512		6332 Metric
YAGEO AC0603FR-0730K1L	Automotive AEC-Q200 Moisture Resistant	Thick Film		0.022 in	0.55 mm	100 ppm/°C	2	155 C	-55 C	0.1 W	0.1 W	0.031 in		0.063 "	1.6 mm	0603	30.1 kOhms	1 %			0.8 mm	1608 Metric
