BAT-HLD Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
BATTERY HOLDER, CR2032/2025, TH ROHS COMPLIANT: YES
| Part | Height Above Board [z] | Height Above Board [z] | Battery Cell Size | Battery Cell Size | Style | Battery Series | Termination Style | Number of Cells | Mounting Type | Battery Series [custom] | Battery Cell Size [diameter] | Battery Type, Function | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4.2 mm | 0.165 in | 20 mm | Coin | Retainer | 2025 2032 | PC Pin | 1 | ||||||
 TE Connectivity AMP Connectors | 3.9 mm | 0.154 in | 20 mm | Coin | Retainer | SMD (SMT) Tab | 1 | PCB Surface Mount | 2016 2020 2025 2032 | |||||
 TE Connectivity AMP Connectors | 4.2 mm | 0.165 in | 20 mm | Coin | Retainer | 2025 2032 | SMD (SMT) Tab | 1 | PCB Surface Mount | |||||
 TE Connectivity AMP Connectors | 2.8 mm | 0.11 in | 20 mm | Coin | Retainer | 2016 | PC Pin | 1 | ||||||
 TE Connectivity AMP Connectors | 3.2 mm | 0.126 in | Coin | Retainer | 1216 1220 1225 | SMD (SMT) Tab | 1 | PCB Surface Mount | 12.5 mm | |||||

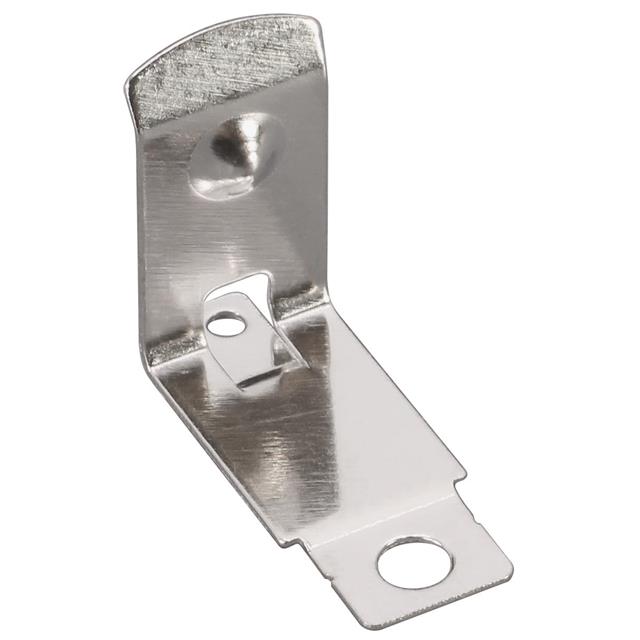

 TE Connectivity AMP Connectors | 6.35 mm | 0.25 in | AA | SMD (SMT) Tab | PCB Surface Mount | Contact (Single) Cylindrical | 85 °C | -25 °C | ||||||
 TE Connectivity AMP Connectors | 20 mm | Coin | Retainer | PC Pin | 1 | 2016 2020 2025 2032 | ||||||||
 TE Connectivity AMP Connectors | 3.81 mm | 0.15 in | 16 mm | Coin | Holder (Open) | 1620 1632 F3 iButton® | PC Pin | 1 | Coin Cell Holder | 85 °C | -25 °C | |||

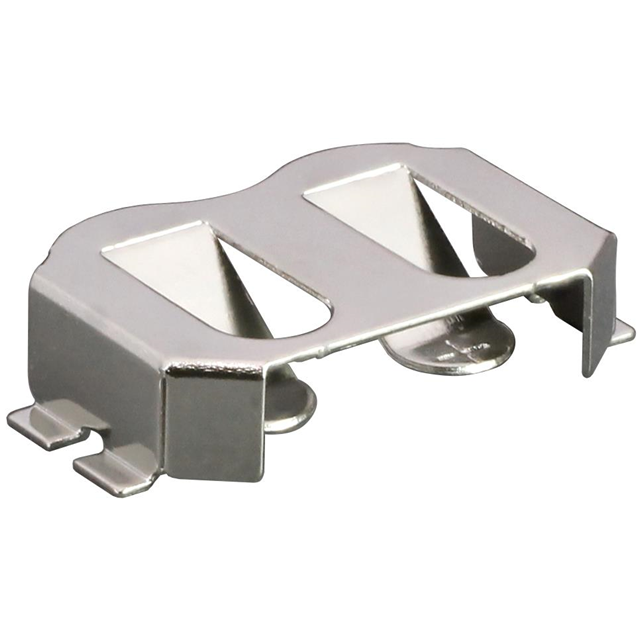

 TE Connectivity AMP Connectors | 3.55 mm | 0.14 in | 12 mm | Coin | Retainer | 1216 1225 | SMD (SMT) Tab | 1 | PCB Surface Mount | |||||
 TE Connectivity AMP Connectors | 6.88 mm | 0.271 in | 24.5 mm | Coin | Retainer | 2450 | SMD (SMT) Tab | 1 | PCB Surface Mount |
