M4698 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

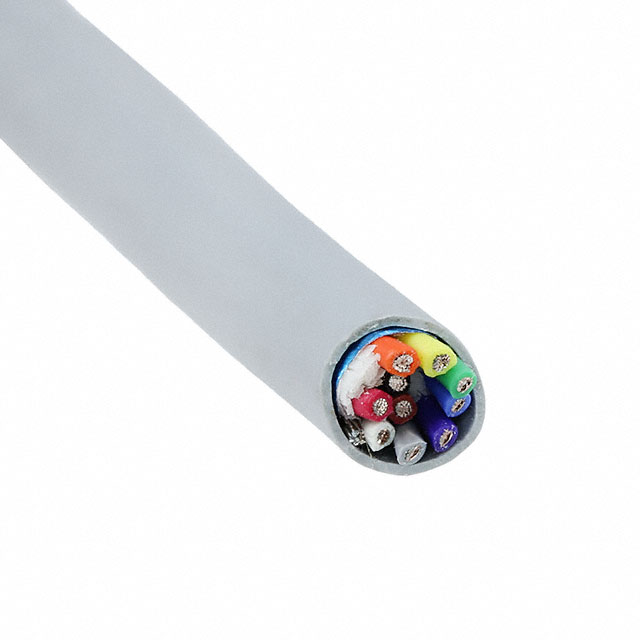

CABLE 10COND 18AWG SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Cable Type | Length [x] | Length [x] | Voltage | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Wire Gauge | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 16 | 30 AWG | Slate | Multi-Conductor | 100 ft | 30.5 m | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 0.387 in | 9.83 mm | UL Style 2464 | 18 AWG | Copper Tinned | 80 °C | -20 ░C | 10 |
