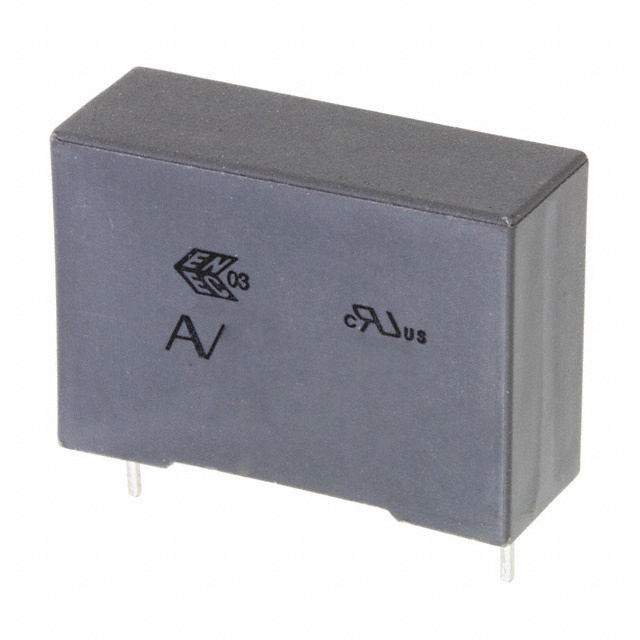

R49AN Series

Manufacturer: KEMET

Catalog

CAP FILM 0.33UF 20% 800VDC RAD

Part	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Mounting Type	Package / Case	Termination	Lead Spacing	Lead Spacing	Voltage Rating - AC	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Capacitance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
KEMET R49AN33300001M	EMI RFI Suppression	10 mm	0.394 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	310 V	20 %	18.5 mm	0.728 in	Polypropylene (PP) Metallized	0.33 µF	X1	-40 C	110 °C
KEMET R49AN347050B1M	EMI RFI Suppression	10 mm	0.394 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	330 V	20 %	0.732 in		Polypropylene (PP) Metallized	0.47 µF	X1	-40 C	110 °C	18.6 mm
KEMET R49AN31005001K	EMI RFI Suppression	6 mm	0.236 "	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	310 V	10 %	15.1 mm	0.594 in	Polypropylene (PP) Metallized	100000 pF	X1	-40 C	110 °C
KEMET R49AN347040B1M	EMI RFI Suppression	10 mm	0.394 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	330 V	20 %	0.732 in		Polypropylene (PP) Metallized	0.47 µF	X1	-40 C	110 °C	18.6 mm
KEMET R49AN322000B1M	EMI RFI Suppression	7 mm	0.276 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	330 V	20 %			Polypropylene (PP) Metallized	0.22 µF	X1	-40 C	110 °C		16.1 mm	0.634 "

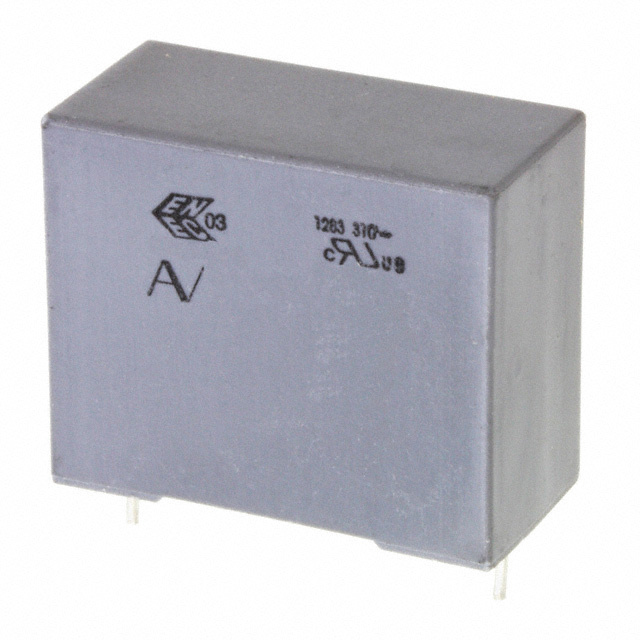

KEMET R49AN368000B1M	EMI RFI Suppression	13 mm	0.512 "	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	310 V	20 %			Polypropylene (PP) Metallized	0.68 µF	X1	-40 C	110 °C				0.866 in	22 mm
KEMET R49AN32205001K	EMI RFI Suppression	7 mm	0.276 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	310 V	10 %			Polypropylene (PP) Metallized	0.22 µF	X1	-40 C	110 °C		16.1 mm	0.634 "
KEMET R49AN32204001K	EMI RFI Suppression	8.5 mm	0.335 in	26.5 mm	1.043 in	800 V	Through Hole	Radial	PC Pins	0.886 in	22.5 mm	310 V	10 %	0.673 in		Polypropylene (PP) Metallized	0.22 µF	X1	-40 C	110 °C	17.1 mm
