DC37S064 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

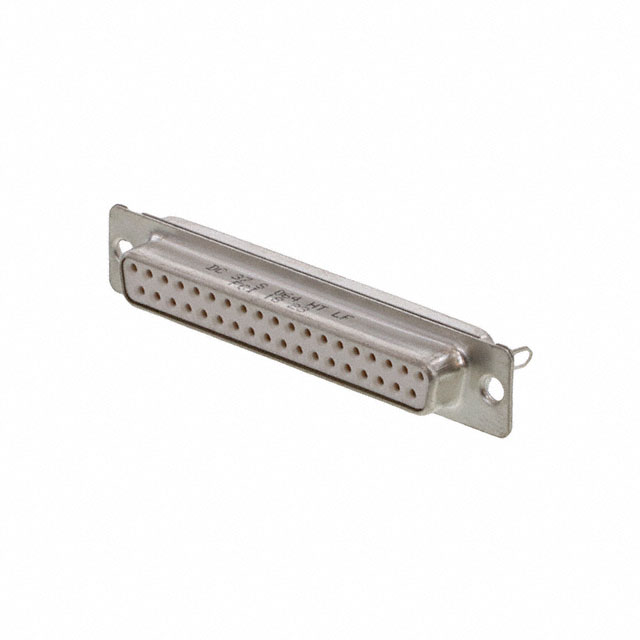

DSUB SIGNAL STC 37SOCKET
| Part | Color | Mounting Type | Number of Positions | Current Rating (Amps) | Number of Rows | Dielectric Material | Contact Type | Shell Size, Connector Layout | Contact Finish Thickness | Voltage Rating | Contact Finish | Flange Feature | Connector Type | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Features | Material Flammability Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Natural | Free Hanging (In-Line) | 37 | 5 A | 2 | Thermoplastic | Signal | 4 (DC C) | Flash | 300 VDC | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | D-Sub | -55 °C | 125 °C | |||
Amphenol ICC (FCI) | Natural | Free Hanging (In-Line) | 37 | 5 A | 2 | Thermoplastic | Signal | 4 (DC C) | Flash | 300 VDC | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | D-Sub | -55 °C | 125 °C | Shielded | ||
 Amphenol ICC (FCI) | Natural | Free Hanging (In-Line) | 37 | 5 A | 2 | Thermoplastic | Signal | 4 (DC C) | Flash | 300 VDC | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | D-Sub | -55 °C | 125 °C | Shielded | UL94 V-0 | Copper Alloy |
