ECE-S2 Series

Catalog

CAP ALUM 680UF 20% 250V SNAP TH

Part	Voltage - Rated	Package / Case	Ripple Current @ Low Frequency	Tolerance	Applications	Size / Dimension	Size / Dimension [diameter]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Polarization	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)
Panasonic Electronic Components ECE-S2EU681U	250 V	Radial Can - Snap-In	1.5 A	20 %	General Purpose	30 mm	1.181 "	2000 Hrs	85 °C	-40 C	1.969 in	50 mm	Through Hole	Polar	2.1 A	680 µF	0.394 in	10 mm
Panasonic Electronic Components ECE-S2DU471M	200 VDC	Radial Can - Snap-In	1.3 A	20 %	General Purpose		0.984 "	2000 Hrs	85 °C	-40 C	1.575 in	40 mm	Through Hole	Polar	1.82 A	470 µF	0.394 in	10 mm	25 mm
Panasonic Electronic Components ECE-S2GP471EX	400 V	Radial Can - Snap-In	2.39 A	20 %	General Purpose		1.378 "	3000 Hrs	85 °C	-25 °C	1.575 in	40 mm	Through Hole	Polar	3.346 A	470 µF	0.394 in	10 mm	35 mm	388 mOhm
Panasonic Electronic Components ECE-S2EG681Z	250 V	Radial Can - Snap-In	1.8 A	20 %	General Purpose		1.378 "	2000 Hrs	105 ░C	-40 C	1.969 in	50 mm	Through Hole	Polar	2.25 A	680 µF	0.394 in	10 mm	35 mm

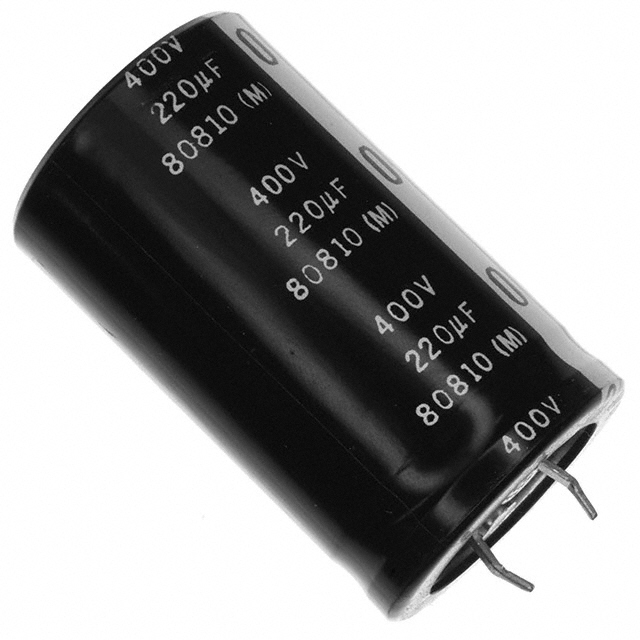

Panasonic Electronic Components ECE-S2GG221U	400 V	Radial Can - Snap-In	1 A	20 %	General Purpose	30 mm	1.181 "	2000 Hrs	105 ░C	-25 °C	1.969 in	50 mm	Through Hole	Polar	1.25 A	220 µF	0.394 in	10 mm
