R22270 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

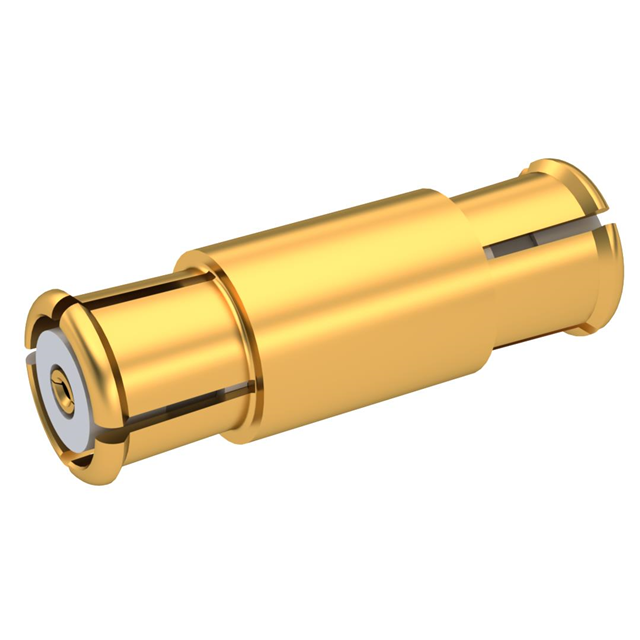

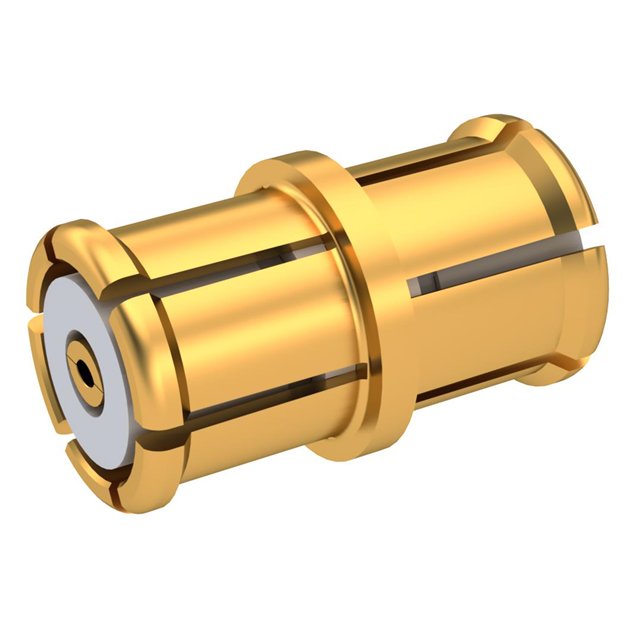

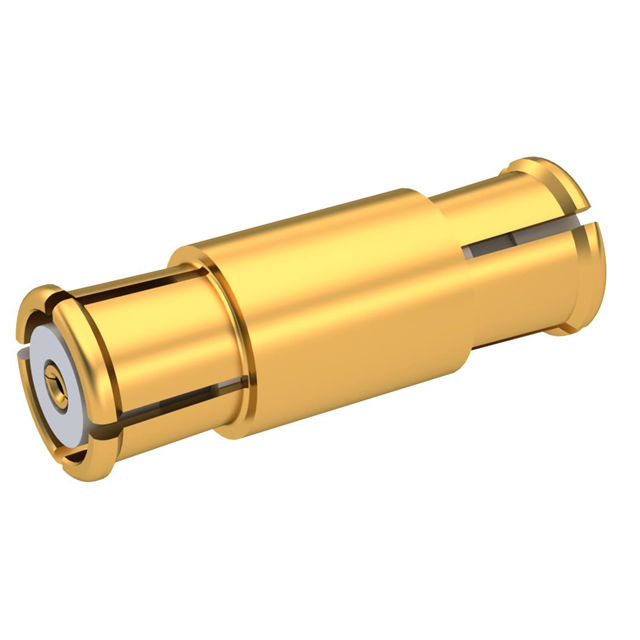

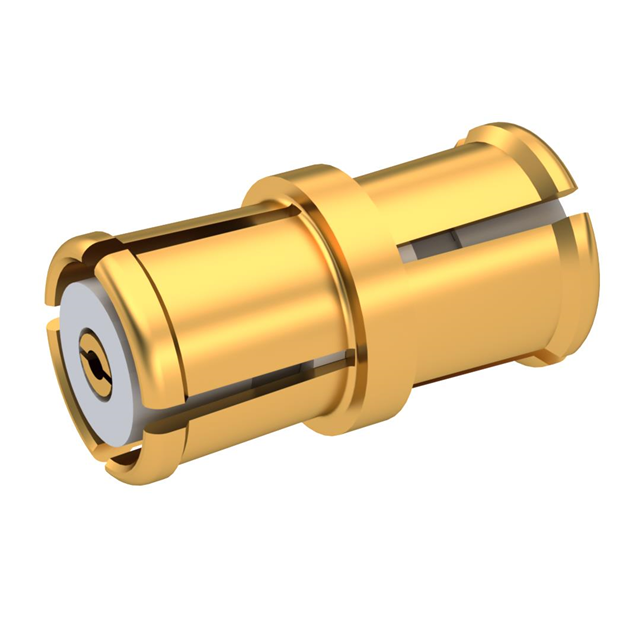

SMP / FEMALE - FEMALE ADAPTER LG
| Part | Center Contact Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Convert To (Adapter End) | Center Contact Plating | Convert From (Adapter End) | Adapter Type | Mounting Type | Adapter Series | Center Gender | Conversion Type | Frequency - Max [Max] | Style | Fastening Type | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
 Radiall USA, Inc. | Beryllium Copper | Gold | Beryllium Copper | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | SMP Jack Female Socket | Gold | Female Socket SMP Jack | Jack to Jack | Free Hanging (In-Line) | SMP to SMP | Female to Female | Same Series | 40 GHz | Straight | Snap-On | Snap-On | 50 Ohms |
