OSTVF24 Series

Catalog

TERM BLOCK HDR 24POS VERT 5.08MM

Part	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Housing Material	Positions Per Level	Number of Positions	Termination Style	Pitch	Pitch	Voltage - UL	Color	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Header Orientation	Number of Levels	Current - UL	Contact Mating Finish
On Shore Technology Inc. OSTVF245250	Brass	0.866 in	22 mm	UL94 V-0	3.9 mm	0.154 in	Thermoplastic	12	24	Solder	5.08 mm	0.2 in	300 V	Green	Mating Flange	Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (4 Side)	Vertical	2
On Shore Technology Inc. OSTVF247150	Brass	0.866 in	22 mm	UL94 V-0	3.9 mm	0.154 in	Thermoplastic	12	24	Solder	5 mm	0.197 in	300 V	Green		Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (4 Side)	Vertical	2
On Shore Technology Inc. OSTVF245150	Copper	0.866 in	22 mm	UL94 V-0	3.9 mm	0.154 in	Thermoplastic	12	24	Solder	5.08 mm	0.2 in	300 V	Green		Through Hole	-40 C	115 °C	Header Male Pins Shrouded (4 Side)	Vertical	2	10 A	Tin
On Shore Technology Inc. OSTVF245151	Brass	0.933 "	23.7 mm	UL94 V-0	4 mm	0.157 in	Thermoplastic	12	24	Solder	5.08 mm	0.2 in	300 V	Green		Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (4 Side)	90° Right Angle	2
On Shore Technology Inc. OSTVF245251	Brass	0.933 "	23.7 mm	UL94 V-0	4 mm	0.157 in	Thermoplastic	12	24	Solder	5.08 mm	0.2 in	300 V	Green	Mating Flange	Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (4 Side)	90° Right Angle	2
On Shore Technology Inc. OSTVF245050	Brass	0.866 in	22 mm	UL94 V-0	3.9 mm	0.154 in	Thermoplastic	12	24	Solder	5.08 mm	0.2 in	300 V	Green	Interlocking (Side)	Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (2 Side)	Vertical	2

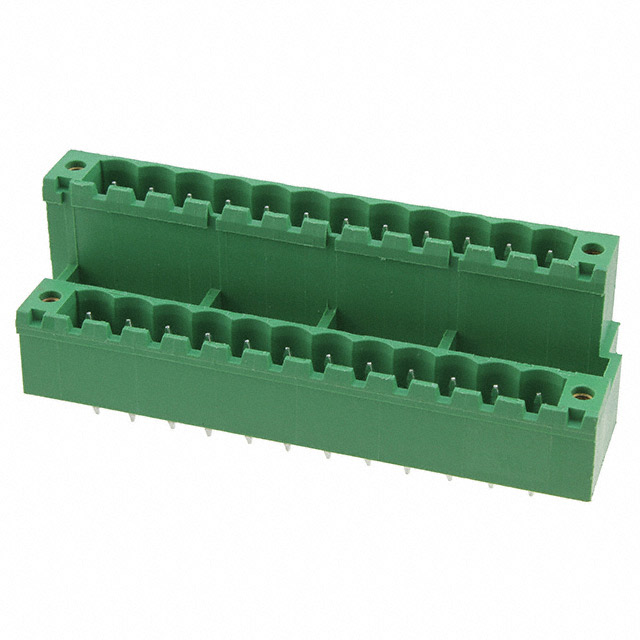

On Shore Technology Inc. OSTVF247250	Brass	0.866 in	22 mm	UL94 V-0	3.9 mm	0.154 in	Thermoplastic	12	24	Solder	5 mm	0.197 in	300 V	Green	Mating Flange	Through Hole	-30 ░C	105 ░C	Header Male Pins Shrouded (4 Side)	Vertical	2
