0672-2 Series

Catalog

CONN RECEPT PIN .015-.025" .084"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 0672-2-15-01-30-14-10-0	-55 C	125 °C	Swage	0.219 in	5.56 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.049 in	1.24 mm	Gold	2.67 mm	0.105 in	0.25 Ám	10 Áin	Beryllium Copper	1.77 mm	0.07 in	No Tail
Mill-Max Manufacturing Corp. 0672-2-15-80-30-84-10-0	-55 C	125 °C	Swage	0.219 in	5.56 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.049 in	1.24 mm	Tin	2.67 mm	0.105 in	2.54 µm	100 µin	Beryllium Copper	1.78 mm	0.07 in	No Tail
Mill-Max Manufacturing Corp. 0672-2-15-80-30-14-10-0	-55 C	125 °C	Swage	0.219 in	5.56 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.049 in	1.24 mm	Gold	2.67 mm	0.105 in	0.25 Ám	10 Áin	Beryllium Copper	1.78 mm	0.07 in	No Tail

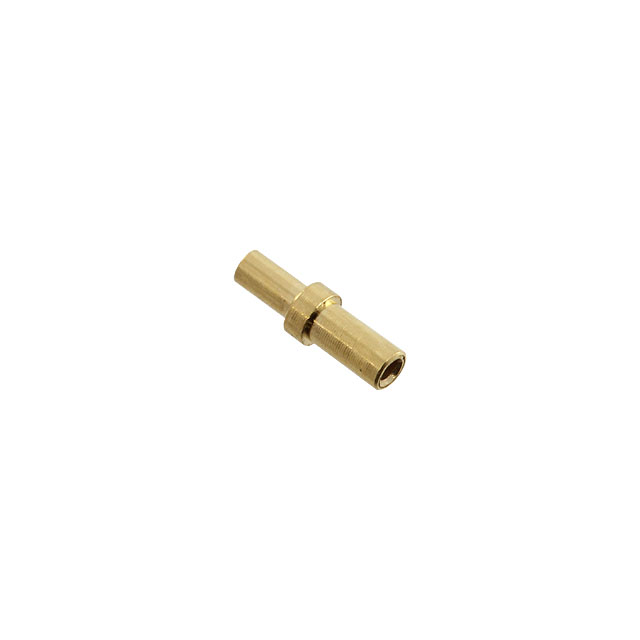

Mill-Max Manufacturing Corp. 0672-2-15-15-30-27-10-0	-55 C	125 °C	Swage	0.219 in	5.56 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.049 in	1.24 mm	Gold	2.67 mm	0.105 in	0.76 Ám	30 Áin	Beryllium Copper	1.77 mm	0.07 in	No Tail

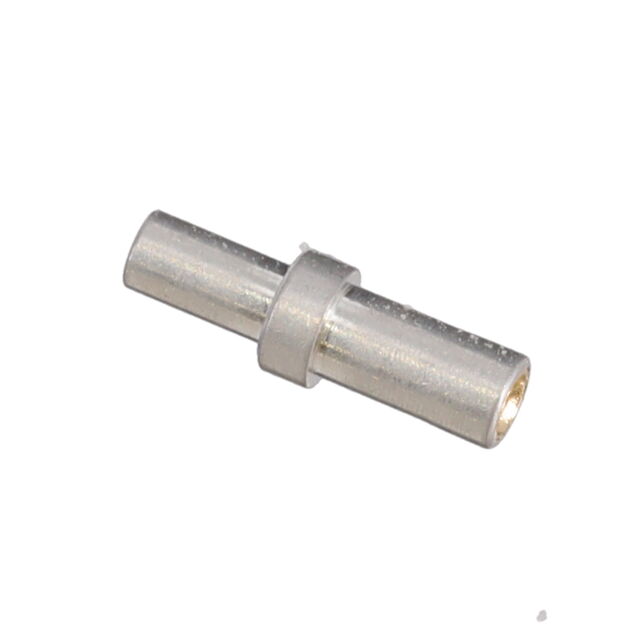

Mill-Max Manufacturing Corp. 0672-2-15-01-30-27-10-0	-55 C	125 °C	Swage	0.219 in	5.56 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	0.049 in	1.24 mm	Gold	2.67 mm	0.105 in	0.76 Ám	30 Áin	Beryllium Copper	1.77 mm	0.07 in	No Tail
