TSM-103 Series

Catalog

CONN HEADER SMD 3POS 2.54MM

...

Part	Style	Contact Type	Contact Material	Contact Shape	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Features	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Mounting Type	Contact Finish - Post	Shrouding	Insulation Material	Material Flammability Rating	Fastening Type	Insulation Color	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-103-01-T-SV-A-P-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	105 ░C	-55 °C	Board Guide Pick and Place	0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All

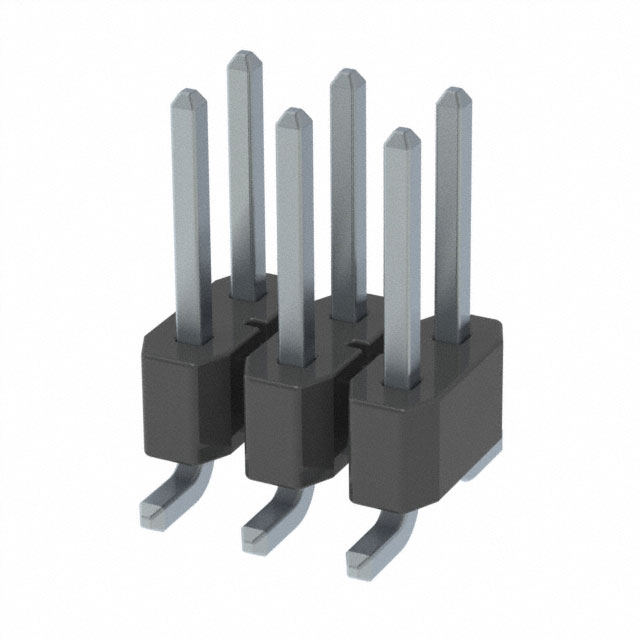

Samtec Inc. TSM-103-01-TM-DV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	105 ░C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	2	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6

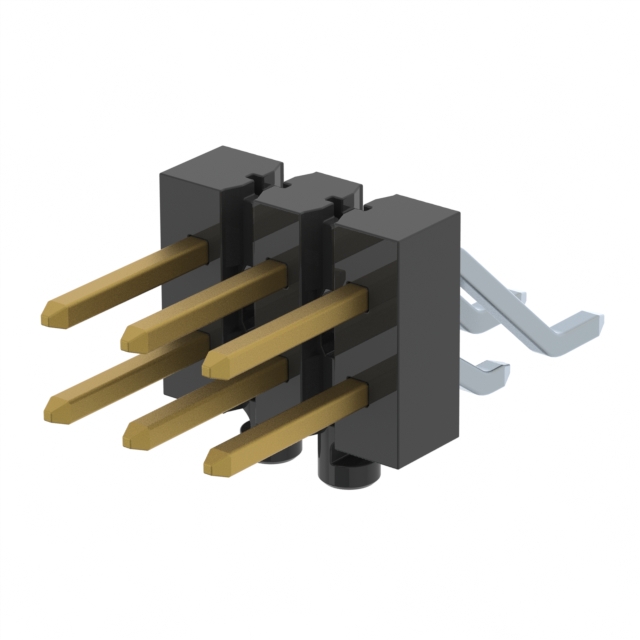

Samtec Inc. TSM-103-01-S-DH-SL	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.24 in	6.1 mm	125 °C	-55 °C	Solder Retention	0.1 in	2.54 mm	Solder	Header	0.23 in	5.84 mm	2	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6	Gold	30 Áin	0.76 Ám

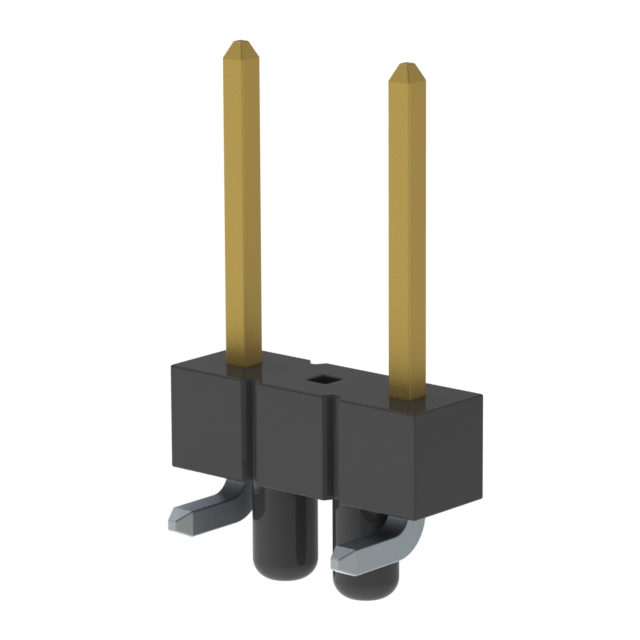

Samtec Inc. TSM-103-02-L-SV-A-002	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Cuttable Header		8.13 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black					Gold	10 çin	0.25 çm	0.32 in	2
Samtec Inc. TSM-103-01-G-SV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	1	Surface Mount	Gold	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All				Gold	10 çin	0.25 çm			3 µin	0.076 µm

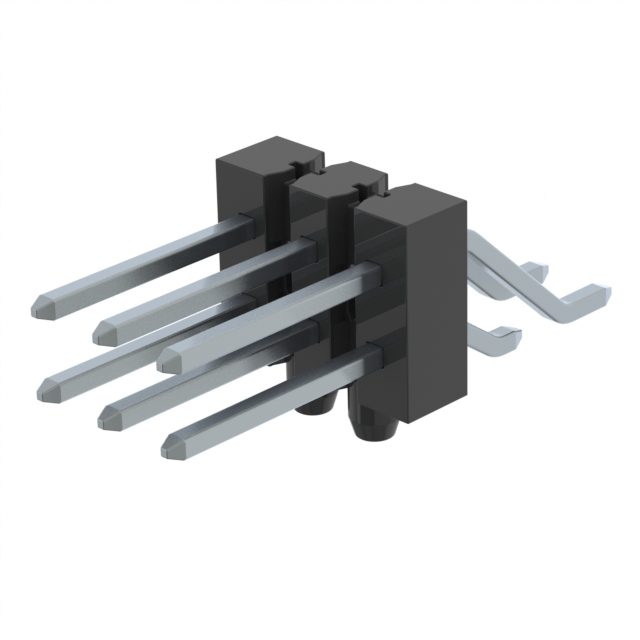

Samtec Inc. TSM-103-02-T-DH-A	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.24 in	6.1 mm	105 ░C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Header		8.13 mm	2	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6				0.32 in

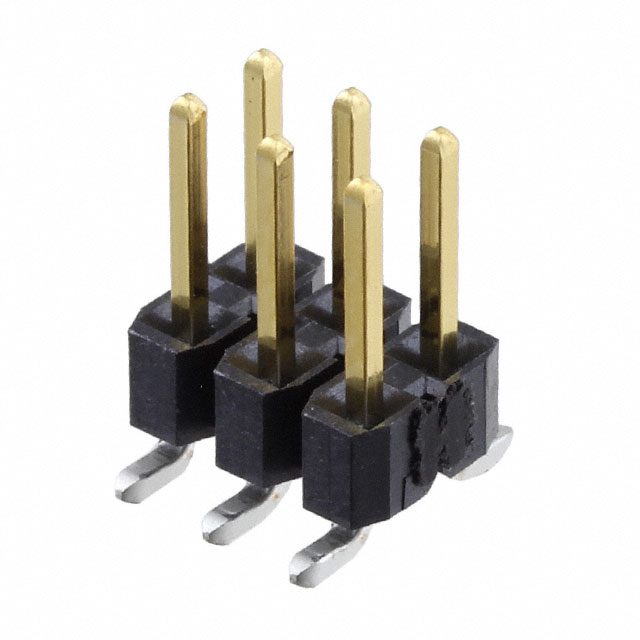

Samtec Inc. TSM-103-01-F-DV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	2	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6	Gold	3 µin	0.076 µm

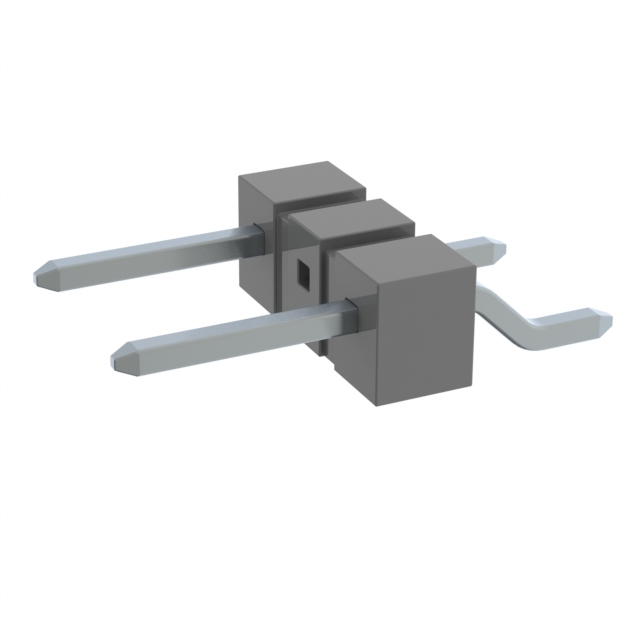

Samtec Inc. TSM-103-01-T-SH-002	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.12 in	3.05 mm	105 ░C	-55 °C		0.1 in	2.54 mm	Solder	Header	0.23 in	5.84 mm	1	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black									2

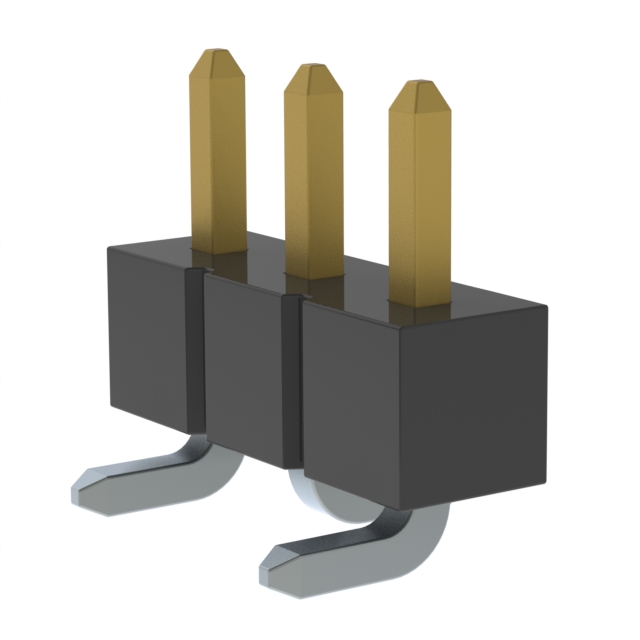

Samtec Inc. TSM-103-04-F-SV-P-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C	Pick and Place	0.1 in	2.54 mm	Solder	Cuttable Header		3.05 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All				Gold	3 µin	0.076 µm	0.12 in

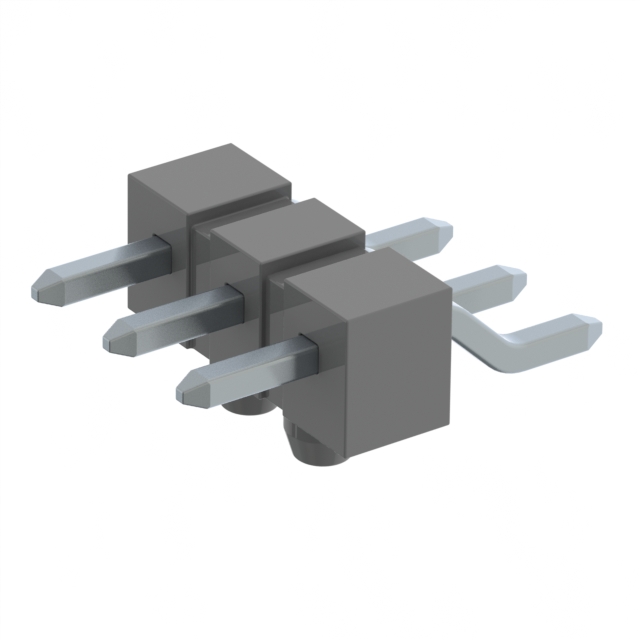

Samtec Inc. TSM-103-04-TM-SH-A	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.12 in	3.05 mm	105 ░C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Header		3.05 mm	1	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All							0.12 in
