74LVC1G04 Series
Manufacturer: UMW
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

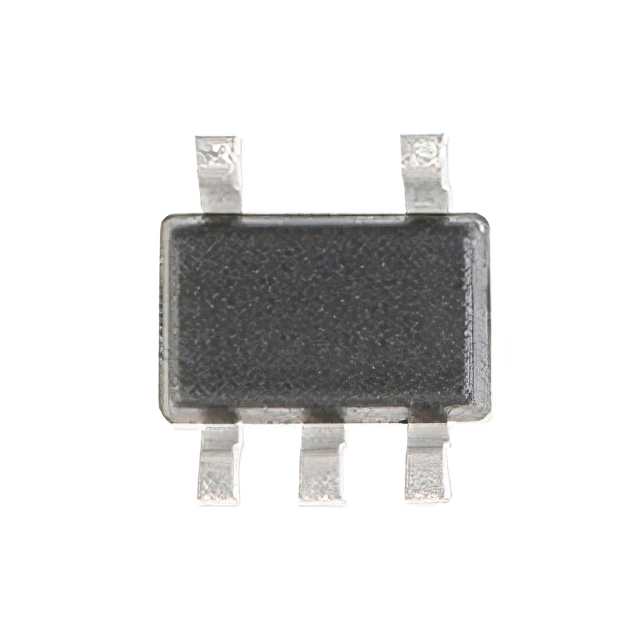

IC INVERTER 1CH 1-INP SOT23-5
| Part | Package Name | Mounting Type | Input Logic Level - High (Max) | Input Logic Level - High (Min) | Max Propagation Delay | Max CL | Number of Circuits | Logic Type | Input Logic Level - Low (Max) | Input Logic Level - Low (Min) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Current - Quiescent (Max) | Number of Inputs | Current - Output High | Current - Output Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SOT-23-5 | Surface Mount | 3.85 V | 1.07 V | 10 ns | 15 pF | 1 | Inverter | 1.65 V | 0.58 V | 1.65 V | 5.5 V | 105 °C | -40 °C | 10 µA | 1 | 32 mA | 32 mA |
