5035-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

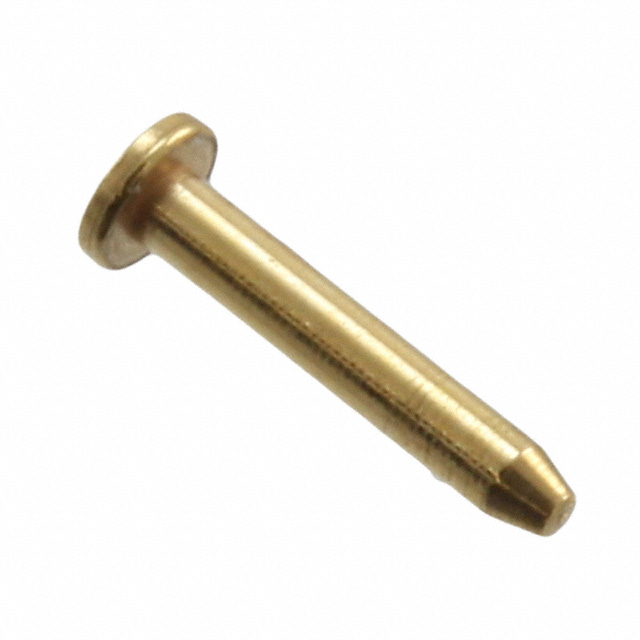

CONN PC PIN CIRC 0.025DIA GOLD
| Part | Contact Finish | Termination | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter | Flange Diameter | Contact Material | Terminal Style | Length - Above Flange | Length - Above Flange [x] | Insulation | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | Solder | 0.16 in | 4.06 mm | 0.029 in | 0.74 mm | 0.05 in | 1.27 mm | Brass Alloy | Nail Head Single End | 3.81 mm | 0.15 in | Non-Insulated | PC Pin | 0.64 mm | 0.025 in | 0.25 Ám | 10 Áin | Through Hole |
