A8L-11-14 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Electrical Life | Mechanical Life | Circuit | Current Rating (Amps) | Voltage Rating - AC | Actuator Marking | Termination Style | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Mounting Type | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

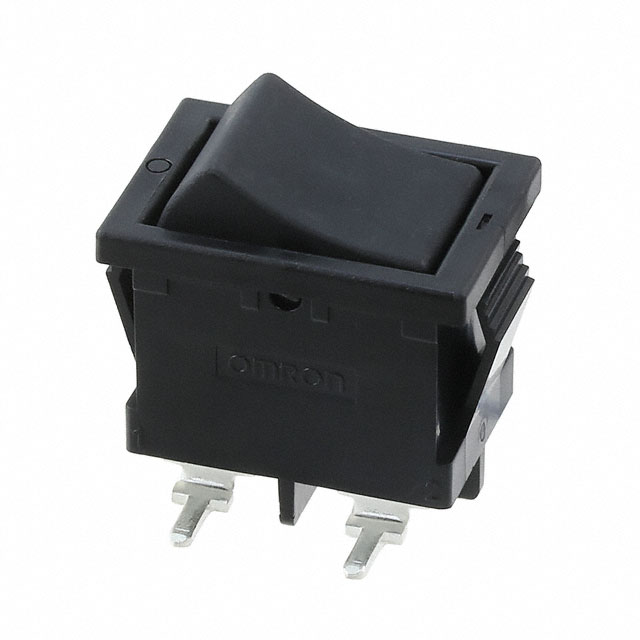

 Omron Electronics Inc-EMC Div | 10000 Cycles | 50000 Cycles | SPST | 10 A | 125 V | No Marking | PC Pin | Black | 55 °C | -20 ░C | 19.2 mm | 17.5 mm | cULus EN UL | Panel Mount Right Angle Snap-In | On-Off | Concave (Curved) |

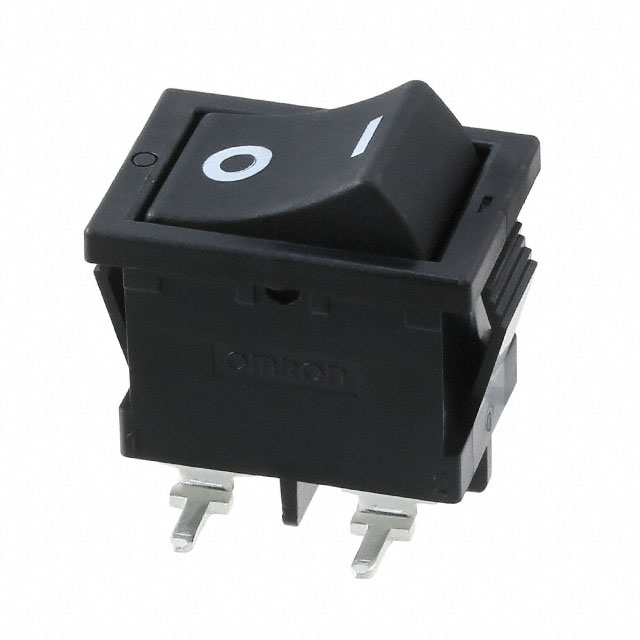

 Omron Electronics Inc-EMC Div | 10000 Cycles | 50000 Cycles | SPST | 10 A | 125 V | O I | PC Pin | Black | 55 °C | -20 ░C | 19.2 mm | 17.5 mm | cULus EN UL | Panel Mount Right Angle Snap-In | On-Off | Concave (Curved) |
