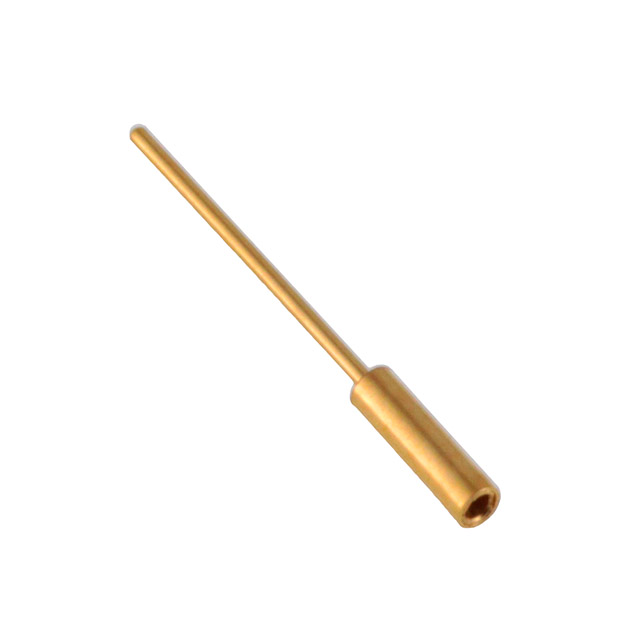

6464-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
RCPT STNDRD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Tail Type | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.014 in | 0.36 mm | Gold | 0.028 in | 0.71 mm | 0.94 mm | 0.037 in | 30 Áin | 0.76 Ám | Standard Tail | Solder | 10.16 mm | 0.4 in | Beryllium Copper | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 1.52 mm | 0.06 in |
