842-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K

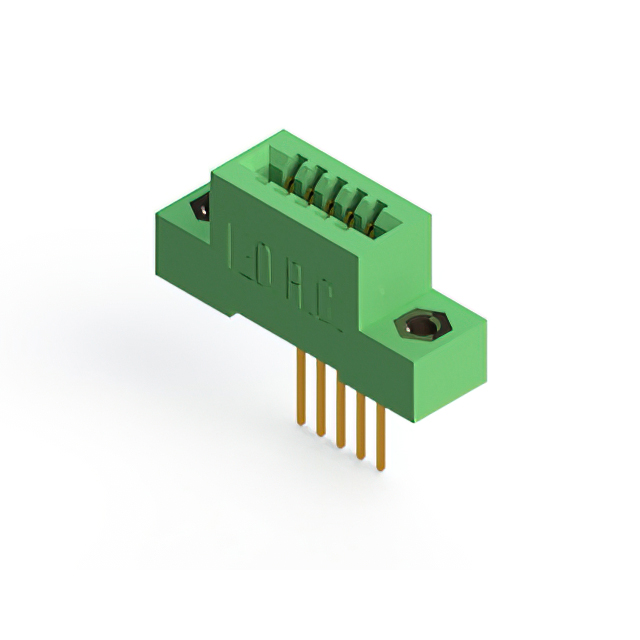

CONN EDGE SINGLE FML 5POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Termination | Number of Positions/Bay/Row | Contact Type | Read Out | Mounting Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Card Type | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Gender | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Solder | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Gold | Wire Wrap | 5 | Cantilever | Single | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 5 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 125 °C | -40 C | 1 | Female | Copper Alloy | 0.156 " | 3.96 mm |
