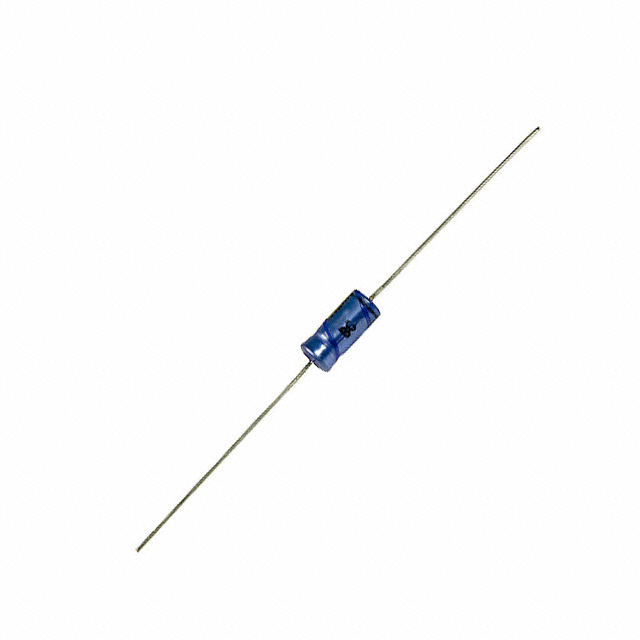

021 ASM Series

Catalog

ELECTROLYTIC CAPACITOR, MINIATURE, 150 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Part	Ripple Current	Size / Dimension Length	Size / Dimension Diameter	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Lifetime	Applications	Voltage - Rated	Tolerance	Polarization	ESR (Equivalent Series Resistance)	Capacitance	Impedance
Vishay Dale MAL202135151E3	168 mA	0.394 in	0.236 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	16 V	20 %	Polar	1.7 Ohm	150 µF	1.1 Ohms
Vishay Dale MAL202127479E3	110 mA	0.394 in	0.236 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	40 V	20 %	Polar	3.8 Ohm	47 µF	1.5 Ohm
Vishay Dale MAL202128101E3	250 mA	0.709 in	0.315 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	63 V	20 %	Polar	1.3 Ohm	100 µF	550 mOhms
Vishay Dale MAL202137479E3	143 mA	0.394 in	0.236 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	40 V	20 %	Polar	3.8 Ohm	47 µF	1.5 Ohm
Vishay Dale MAL202117681E3	1.04 A	1.181 in	0.492 in	Through Hole	-40 °C	85 °C	Axial Can	8000 Hrs	General Purpose	40 V	20 %	Polar	297 mOhm	680 µF	110 mOhm
Vishay Dale MAL202137229E3	78 mA	0.394 in	0.177 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	40 V	20 %	Polar	8 Ohm	22 µF	3.2 Ohms
Vishay Dale MAL202190544E3	160 mA	0.433 in	0.315 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	63 V	20 %	Polar	1.9 Ohm	68 µF	810 mOhms
Vishay Dale MAL202126222E3	1.18 A	1.181 in	0.591 in	Through Hole	-40 °C	85 °C	Axial Can	8000 Hrs	General Purpose	25 VAC	20 %	Polar	132 mOhm	2200 ĄF	70 mOhms
Vishay Dale MAL202138689E3	238 mA	0.709 in	0.256 in	Through Hole	-40 °C	85 °C	Axial Can	2000 Hrs	General Purpose	63 V	20 %	Polar	1.9 Ohm	68 µF	810 mOhms
Vishay Dale MAL202139229E3	140 mA	0.709 in	0.256 in	Through Hole	-40 °C	85 °C	Axial Can	2500 Hrs	General Purpose	100 VAC/DC	20 %	Polar	5.8 Ohm	22 µF	4.1 Ohms
