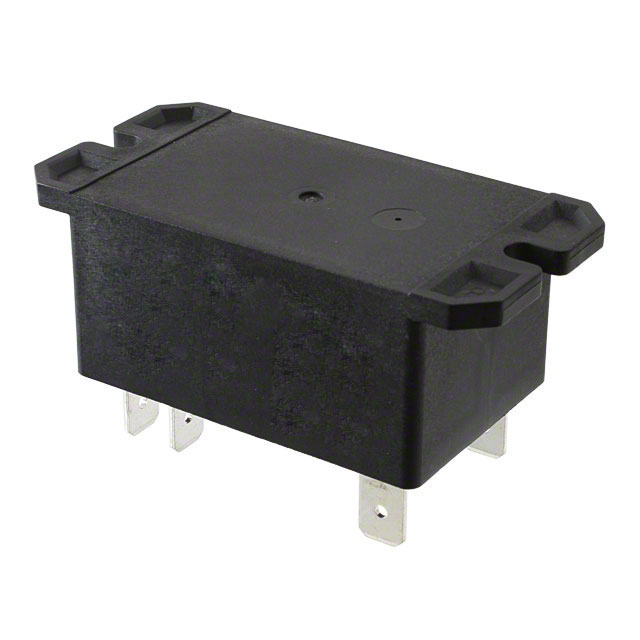

T92P7 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPST 30A 110V
| Part | Coil Resistance | Switching Voltage [Max] | Contact Rating (Current) | Coil Insulation | Approval Agency | Mounting Type | Contact Material | Coil Type | Must Release Voltage | Coil Voltage | Termination Style | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Release Time | Coil Current | Relay Type | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7.25 kOhms | 600 VAC | 30 A | Class F | CSA TUV UL UR VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Non Latching | 11 VDC | 110 VDC | Quick Connect - 0.250" (6.3mm) | 82.5 VDC | -55 C | 85 °C | 15 ms | 15 ms | 15.5 mA | General Purpose | DPST-NO (2 Form A) | |
 TE Connectivity AMP Connectors | 86 Ohms | 600 VAC | 30 A | Class F | CSA TUV UL UR VDE | Socketable | Silver Tin Oxide Indium Oxide (AgSnOInO) | Non Latching | 1.2 VDC | 12 VDC | Plug In | 9 VDC | -55 C | 85 °C | 25 ms | 25 ms | 140 mA | General Purpose | DPST-NO (2 Form A) | |
TE Connectivity AMP Connectors | 950 Ohms | 600 VAC | 30 A | Class F | CSA TUV UL UR VDE | Chassis Mount | Silver Tin Oxide Indium Oxide (AgSnOInO) | Non Latching | 12 VAC | 120 VAC | Quick Connect - 0.250" (6.3mm) | 96 VAC | -55 C | 65 °C | 25 ms | 25 ms | 126.3 mA | General Purpose | DPST-NO (2 Form A) | |
TE Connectivity AMP Connectors | 10.83 kOhms | 600 VAC | 30 A | Class F | CSA TUV UL UR VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Non Latching | 20.8 VAC | 208 VAC | Quick Connect - 0.250" (6.3mm) | 166.4 VAC | -55 C | 65 °C | 15 ms | 15 ms | 19.2 mA | General Purpose | DPST-NO (2 Form A) | |
 TE Connectivity AMP Connectors | 950 Ohms | 600 VAC | 30 A | CSA TUV UL UR VDE | Through Hole | Silver Cadmium Oxide (AgCdO) | Non Latching | 12 VAC | 120 VAC | PC Pin | 96 VAC | -55 C | 85 °C | 25 ms | 25 ms | 33.3 mA | General Purpose | DPST-NO (2 Form A) | ||
 TE Connectivity AMP Connectors | 350 Ohms | 600 VAC | 30 A | Class F | CSA TUV UL UR VDE | Chassis Mount | Silver Tin Oxide Indium Oxide (AgSnOInO) | Non Latching | 2.4 VDC | 24 VDC | Quick Connect - 0.250" (6.3mm) | 18 VDC | -55 C | 85 °C | 15 ms | 15 ms | 70.8 mA | General Purpose | DPST-NO (2 Form A) | |
TE Connectivity AMP Connectors | 36.6 Ohms | 600 VAC | 40 A | CSA TUV UL UR VDE | Chassis Mount | Silver Cadmium Oxide (AgCdO) | Non Latching | 24 VAC | 24 VAC | Quick Connect - 0.250" (6.3mm) | 192 VAC | -55 C | 85 °C | 25 ms | 25 ms | General Purpose | DPST-NO (2 Form A) | 24000 VA |
