ANT-315 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF ANT 315MHZ CHIP SOLDER SMD

Part	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Number of Bands	Antenna Type	VSWR	Termination	Height (Max) [z]	Height (Max) [z]	Frequency (Center/Band)	Mounting Type	Applications	RF Family/Standard	Gain	Height (Max) [z]	Height (Max) [z]

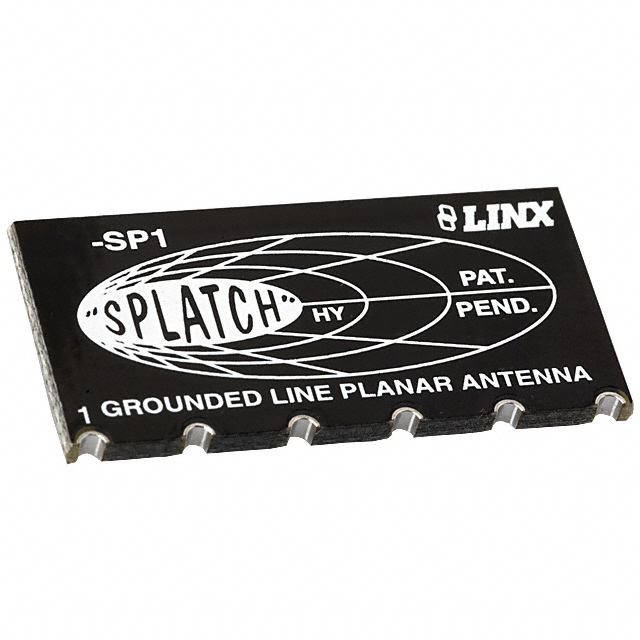

TE Connectivity AMP Connectors ANT-315-SP	312 MHz	317 MHz	1 GHz	UHF	300 MHz	1	Chip	1.9	Solder	1.5 mm	0.059 in	315 MHz	Surface Mount	Alarms ISM Remote Control Security Systems	General ISM

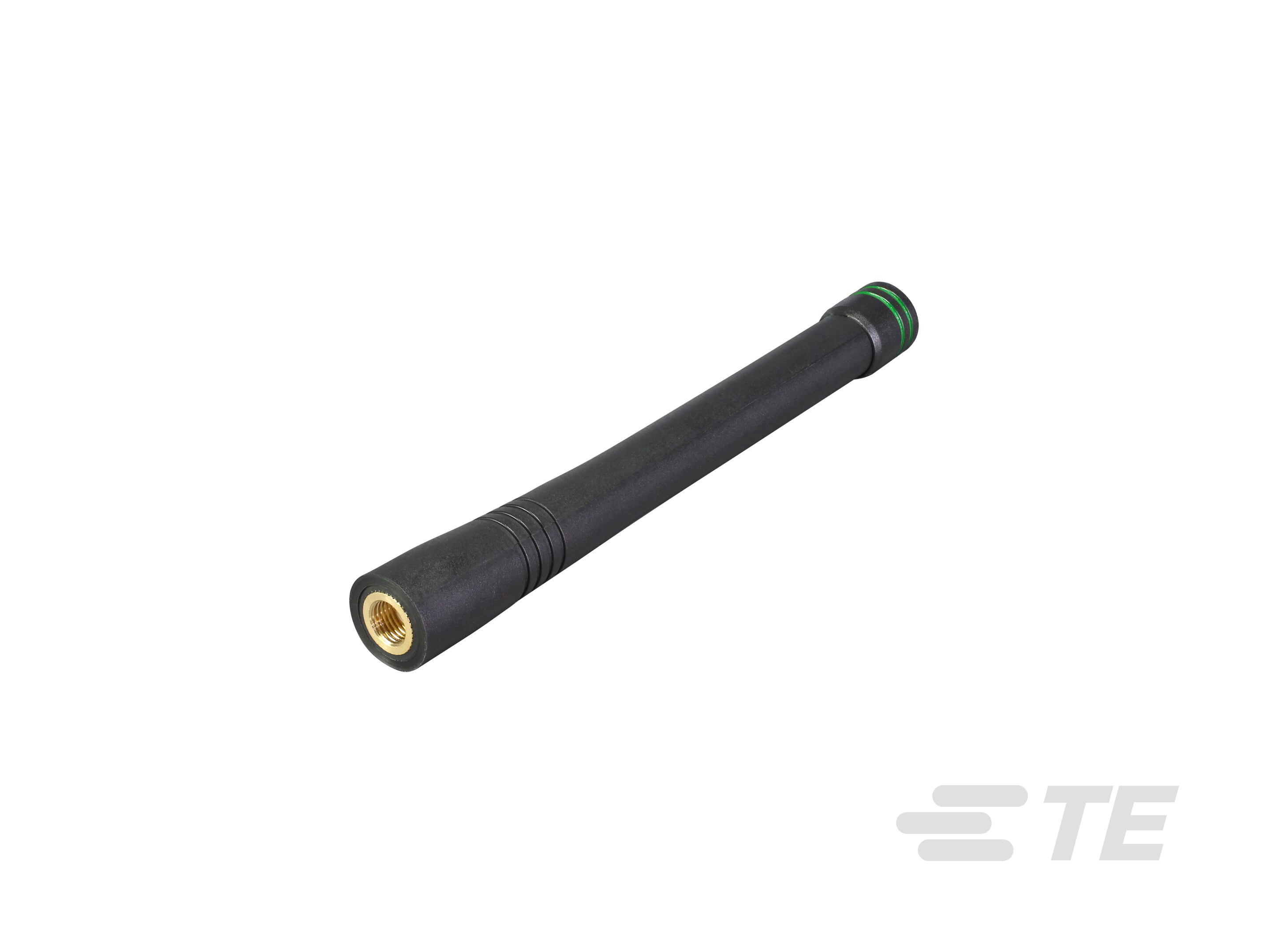

TE Connectivity AMP Connectors ANT-315-CW-HD	310 MHz	320 MHz	1 GHz	UHF	300 MHz	1	Whip Straight	2	RP-SMA Male	117 mm	4.606 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM
TE Connectivity AMP Connectors ANT-315-PW-LP	312 MHz	318 MHz	1 GHz	UHF	300 MHz	1	Whip Straight	1.9	Screw-Mount	50.5 mm	1.988 in	315 MHz	Panel Mount	Alarms ISM Remote Control Security Systems	General ISM	-4 dBi

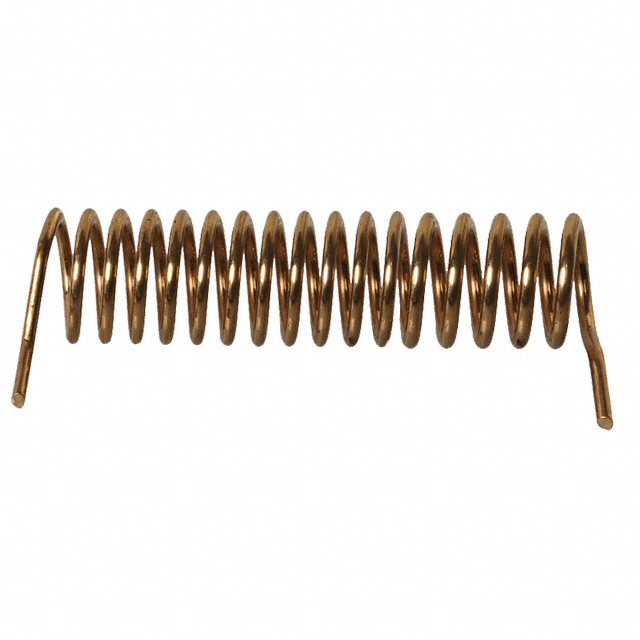

TE Connectivity AMP Connectors ANT-315-HETH	305 MHz	325 MHz	1 GHz	UHF	300 MHz	1	Helical	2	Solder	0.35 in		315 MHz	Through Hole	Alarms ISM Remote Control Security Systems	General ISM		8.89 mm

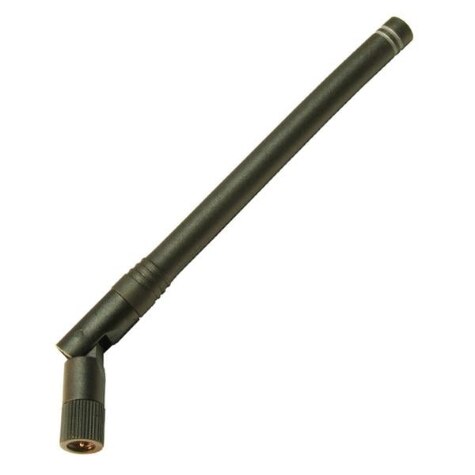

TE Connectivity AMP Connectors ANT-315-CW-HWR-SMA	305 MHz	325 MHz	1 GHz	UHF	300 MHz	1	Tilt Whip	2		142 mm	5.591 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	0 dBi

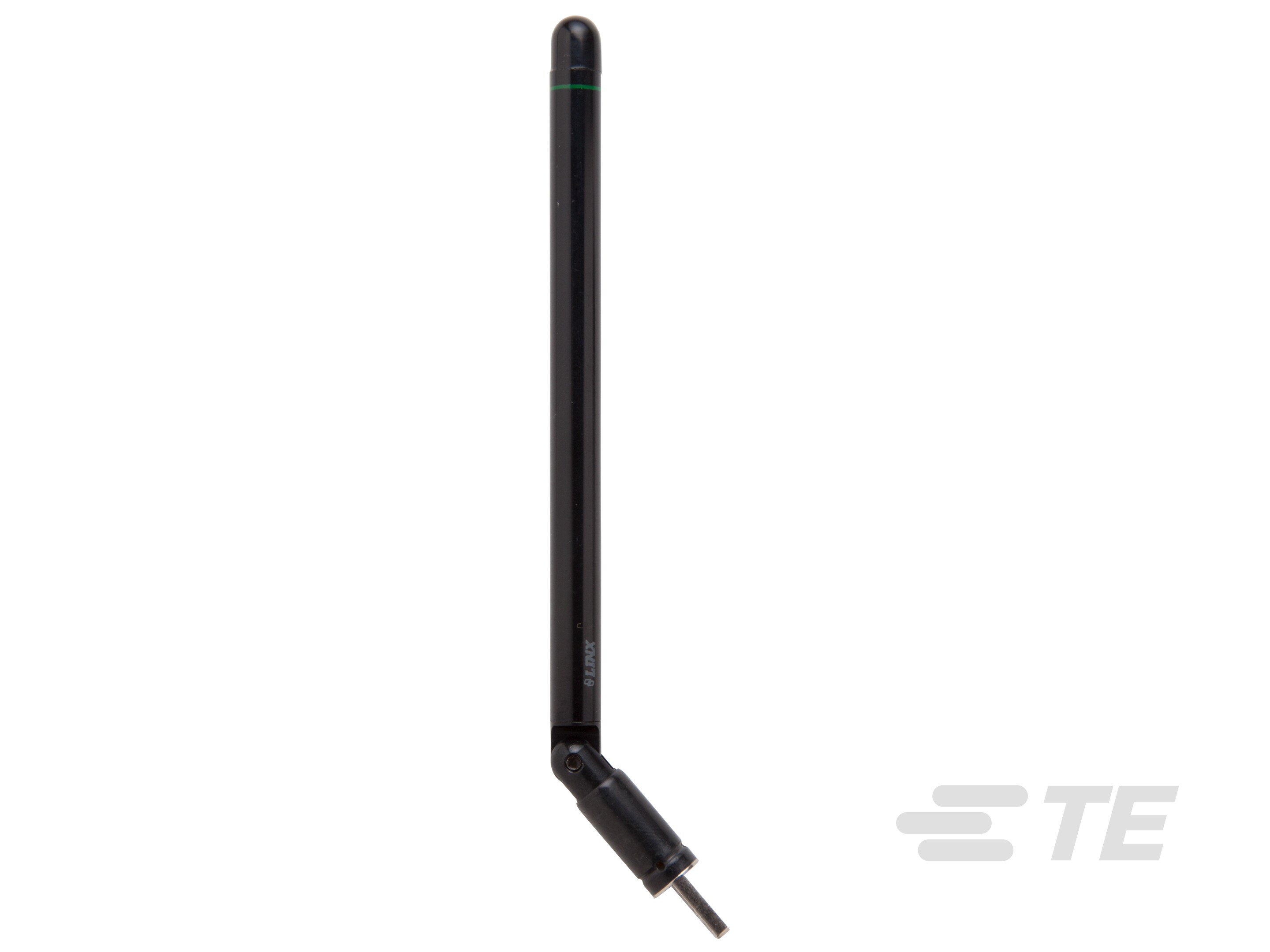

TE Connectivity AMP Connectors ANT-315-PW-RA			1 GHz	UHF	300 MHz	1	Tilt Whip	2	Screw-Mount	131.57 mm	5.18 in	315 MHz	Panel Mount	Alarms ISM Remote Control Security Systems	General ISM

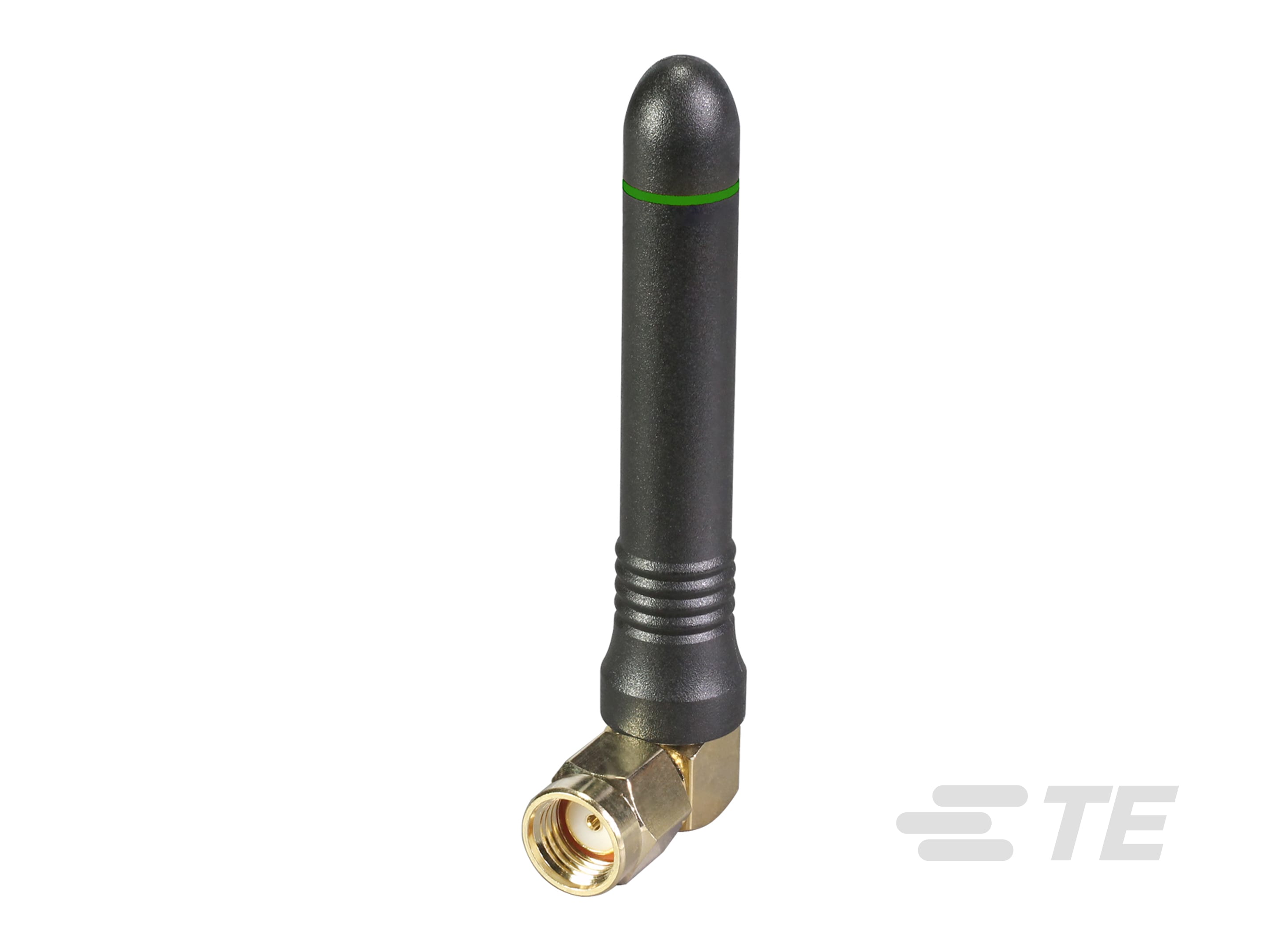

TE Connectivity AMP Connectors ANT-315-CW-RCS	310 MHz	320 MHz	1 GHz	UHF	300 MHz	1	Right Angle Whip	2	RP-SMA Male	2.106 in		315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM		53.5 mm

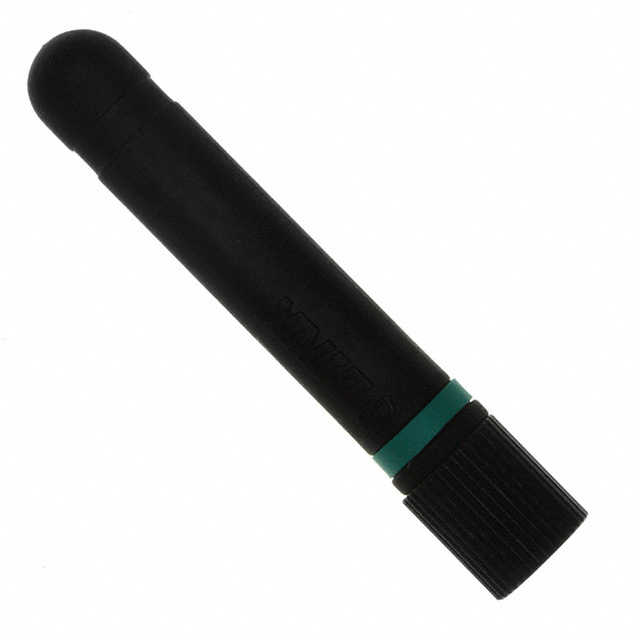

TE Connectivity AMP Connectors ANT-315-CW-RH-SMA	310 MHz	320 MHz	1 GHz	UHF	300 MHz	1	Whip Straight	1.9		51 mm		315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM			2.008 in

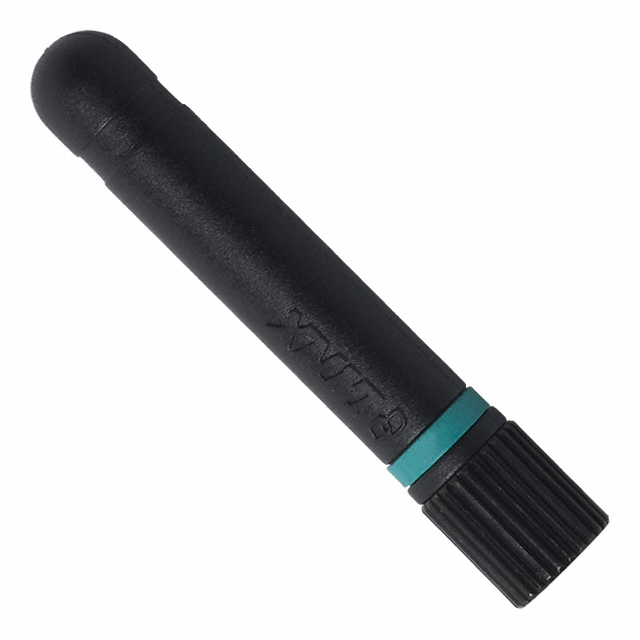

TE Connectivity AMP Connectors ANT-315-CW-RH	310 MHz	320 MHz	1 GHz	UHF	300 MHz	1	Whip Straight	1.9	RP-SMA Male	51 mm		315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM			2.008 in
TE Connectivity AMP Connectors ANT-315-CW-HWR-RPS	305 MHz	325 MHz	1 GHz	UHF	300 MHz	1	Tilt Whip	2	RP-SMA Male	142 mm	5.591 in	315 MHz	Connector Mount	Alarms ISM Remote Control Security Systems	General ISM	0 dBi
