MFA350 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 24V 350W

Part	Voltage - Output 1	Mounting Type	Approval Agency	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Standard Number	Features	Voltage - Isolation	Type	Applications	Size / Dimension [y]	Size / Dimension [z]
XP Power MFA350PS24	24 V	Chassis Mount	CB CE	14.5 A	70 °C	-10 °C	87 %	350 W	361 W	38.1 mm	3.2 "	81.3 mm	172.7 mm	1.5 in	6.8 "	1	62368-1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	3000 V	Open Frame	ITE (Commercial)
XP Power MFA350PS48	48 V	Chassis Mount	CB CE	7.3 A	70 °C	-10 °C	88 %	350 W	364 W	38.1 mm	3.2 "	81.3 mm	172.7 mm	1.5 in	6.8 "	1	62368-1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	3000 V	Open Frame	ITE (Commercial)

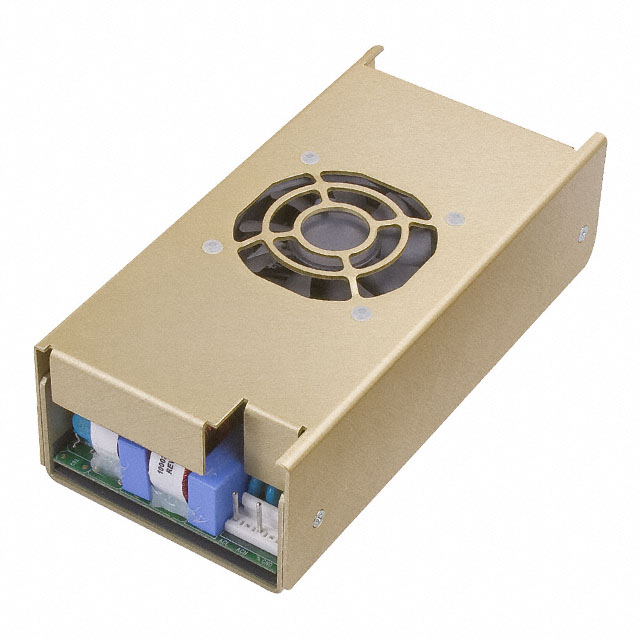

XP Power MFA350PS48-STF	48 V	Chassis Mount	CB CE	7.3 A	70 °C	-10 °C	88 %	350 W	364 W		3.33 "		172.7 mm	2.8 in	6.8 "	1	62368-1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	3000 V	Enclosed	ITE (Commercial)	84.5 mm	52.8 mm
XP Power MFA350PS24-STF	24 V	Chassis Mount	CB CE	14.5 A	70 °C	-10 °C	87 %	350 W	361 W		3.33 "		172.7 mm	2.8 in	6.8 "	1	62368-1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	3000 V	Enclosed	ITE (Commercial)	84.5 mm	52.8 mm
XP Power MFA350PS12-SEF	12 V	Chassis Mount	CB CE	29 A	70 °C	-10 °C	86 %	350 W	361 W		3.33 "		208.3 mm	1.75 in	8.2 in	1	62368-1	Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input	3000 V	Enclosed	ITE (Commercial)	84.5 mm	44.5 mm
