391-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Read Out	Number of Rows [custom]	Contact Material	Contact Finish	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Contact Type	Number of Positions	Gender	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Pitch	Pitch	Features	Flange Feature [diameter]	Flange Feature [diameter]

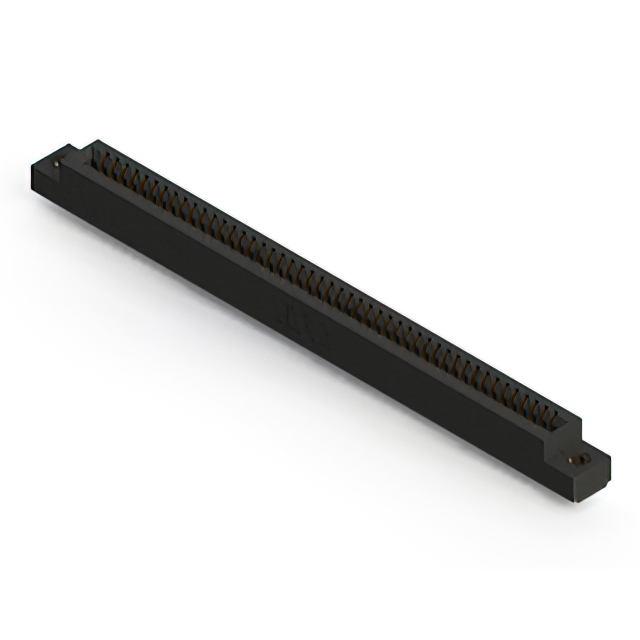

EDAC Inc. 391-094-520-207	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm
EDAC Inc. 391-094-556-202	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Card Extender	3.25 mm	0.128 "
EDAC Inc. 391-094-560-204	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Card Extender	3.96 mm	0.156 "

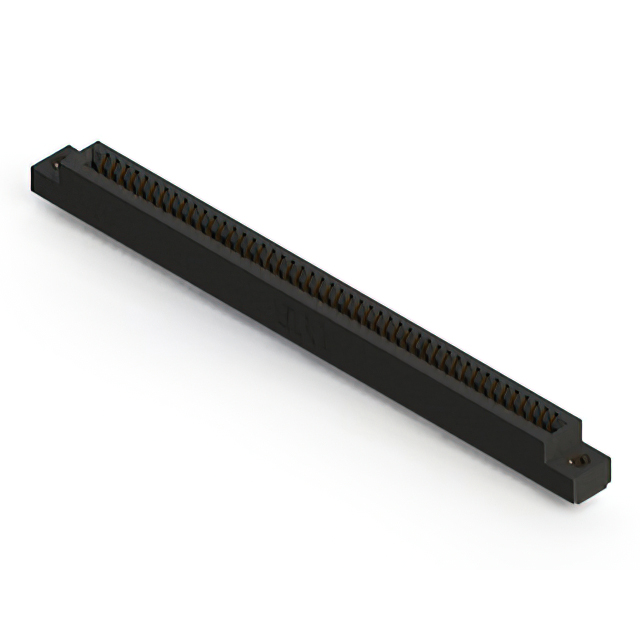

EDAC Inc. 391-094-524-207	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm
EDAC Inc. 391-094-521-201	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin		0.1 "	2.54 mm
EDAC Inc. 391-094-520-208	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm
EDAC Inc. 391-094-555-201	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder Eyelet(s)	Semi Bellows	94	Female	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin		0.1 "	2.54 mm	Card Extender
EDAC Inc. 391-094-524-203	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.1 "	2.54 mm		2.95 mm	0.116 "
EDAC Inc. 391-094-522-204	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm		3.96 mm	0.156 "
EDAC Inc. 391-094-524-202	Polyester Thermoplastic	2	Dual	2	Copper Alloy	Gold	47	-40 C	105 ░C	Non Specified - Dual Edge	Solder	Semi Bellows	94	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm		3.25 mm	0.128 "
