PES1-S24 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 15V 1W

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Applications	Standard Number	Type	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Min]
CUI Inc. PES1-S24-S15-M-TR	SCP	105 C	-40 °C	81 %	15 V	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	8-SMD Module 5 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	1	EN UL	26.4 V	67 mA	Surface Mount	21.6 V

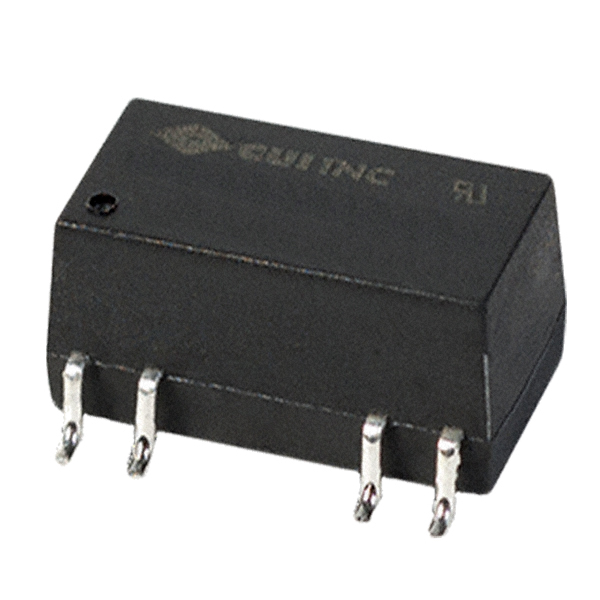

CUI Inc. PES1-S24-D12-M-TR	SCP	105 C	-40 °C		12 V	0.29 "	0.33 in		12.7 mm			8-SMD Module 6 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	2	CB Scheme EN IEC UL	26.4 V		Surface Mount	21.6 V	-12 V	42 mA	7.3 mm	8.3 mm	12.7 mm
CUI Inc. PES1-S24-D5-M-TR	SCP	105 C	-40 °C		5 V	0.29 "	0.33 in		12.7 mm			8-SMD Module 6 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	2	CB Scheme EN IEC UL	26.4 V		Surface Mount	21.6 V	-5 V		7.3 mm	8.3 mm	12.7 mm	100 mA	100 mA
CUI Inc. PES1-S24-S5-M-TR	SCP	105 C	-40 °C	80 %	5 V	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	8-SMD Module 5 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	1	EN UL	26.4 V	200 mA	Surface Mount	21.6 V
CUI Inc. PES1-S24-S24-M	SCP	105 C	-40 °C	80 %	24 V	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	8-SMD Module 5 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	1	EN UL	26.4 V	42 mA	Surface Mount	21.6 V
CUI Inc. PES1-S24-S5-M	SCP	105 C	-40 °C	80 %	5 V	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	8-SMD Module 5 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	1	EN UL	26.4 V	200 mA	Surface Mount	21.6 V
CUI Inc. PES1-S24-S24-M-TR	SCP	105 C	-40 °C	81 %	24 V	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	8-SMD Module 5 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	1	EN UL	26.4 V	42 mA	Surface Mount	21.6 V
CUI Inc. PES1-S24-D15-M-TR	SCP	105 C	-40 °C		15 V	0.29 "	0.33 in		12.7 mm			8-SMD Module 6 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	2	CB Scheme EN IEC UL	26.4 V	33 mA	Surface Mount	21.6 V	-15 V		7.3 mm	8.3 mm	12.7 mm			33 mA

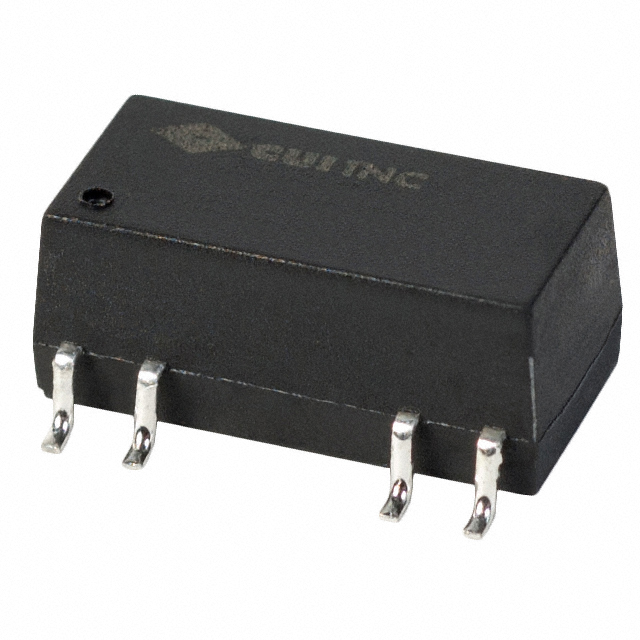

CUI Inc. PES1-S24-D24-M-TR	SCP	105 C	-40 °C		24 V	7.3 mm	8.3 mm	0.6 "	15.2 mm	0.29 in	0.33 "	8-SMD Module 6 Leads	ITE (Commercial)	55024 55032 Class A 60950-1	Isolated Module	3000 V	2	CB Scheme EN IEC UL	26.4 V		Surface Mount	21.6 V	-24 V	21 mA
