UTL01 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN CIRC RCPT 4POS GOLD CRIMP

Part	Applications	Mounting Feature	Color	Cable Opening	Ingress Protection IP Rating	Ingress Protection Description	Shielding	Fastening Type	Features	Connector Type	Contact Finish - Mating	Number of Positions	Position Types	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Shell Material	Mounting Type	Material Flammability Rating - Level	Material Flammability Rating	Material Flammability Rating - Code	Shell Size - Insert Length	Shell Size - Insert Width	Insert Material	Primary Material	Contact Finish Thickness - Mating	Termination	Contact Type	Contact Size	Type	Orientation	Housing Color	Note	Contact Shape

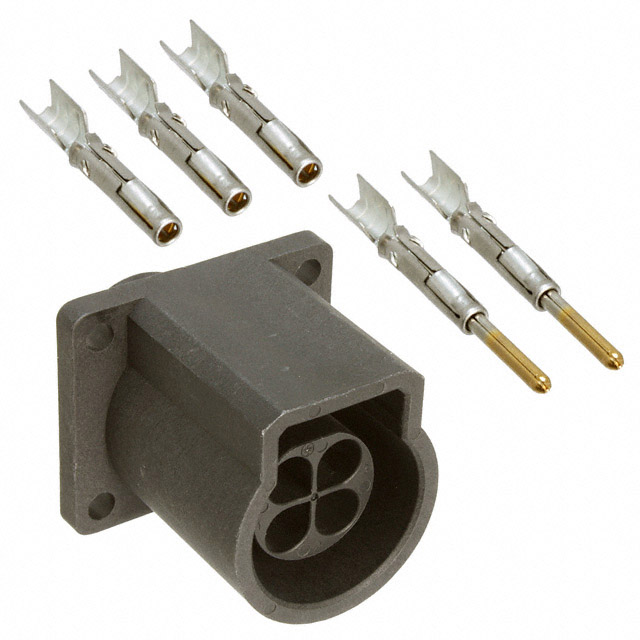

Amphenol Aerospace Operations UTL0103G1S20AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp

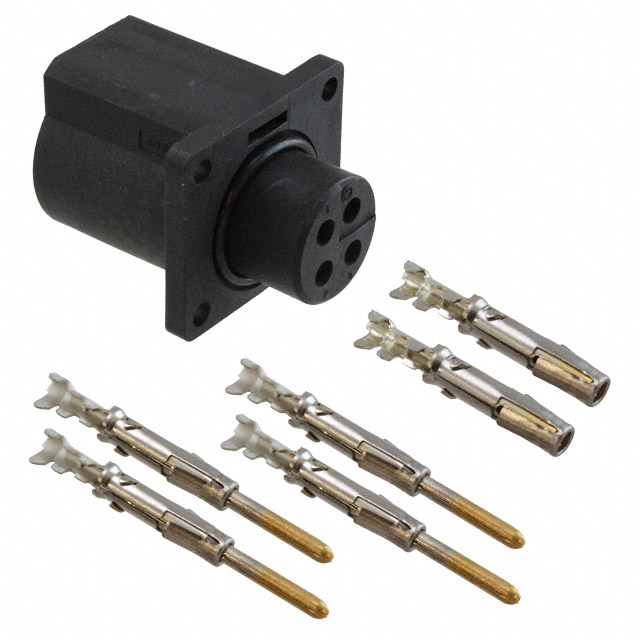

Amphenol Aerospace Operations UTL0103G1P20AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp

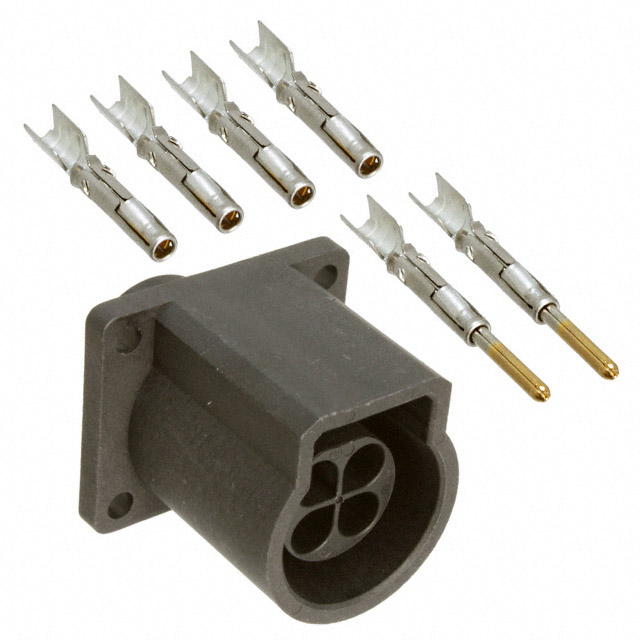

Amphenol Aerospace Operations UTL0103G1S14AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp

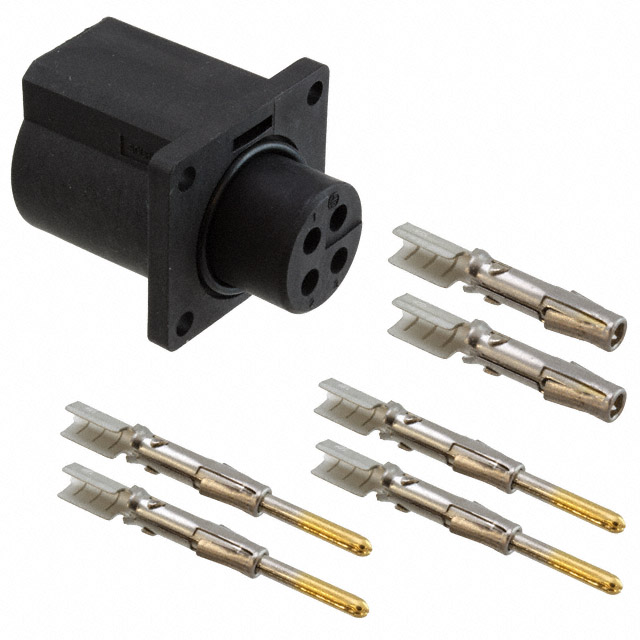

Amphenol Aerospace Operations UTL0103G1P16AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp
Amphenol Aerospace Operations UTL0103G1P03		Flange			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock		Receptacle Housing		4	PE	-40 °C	105 °C		Glass Reinforced Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic				Crimp	16 S	For Female Sockets and Male Pins	Keyed	Gray	Contacts Not Included	Circular

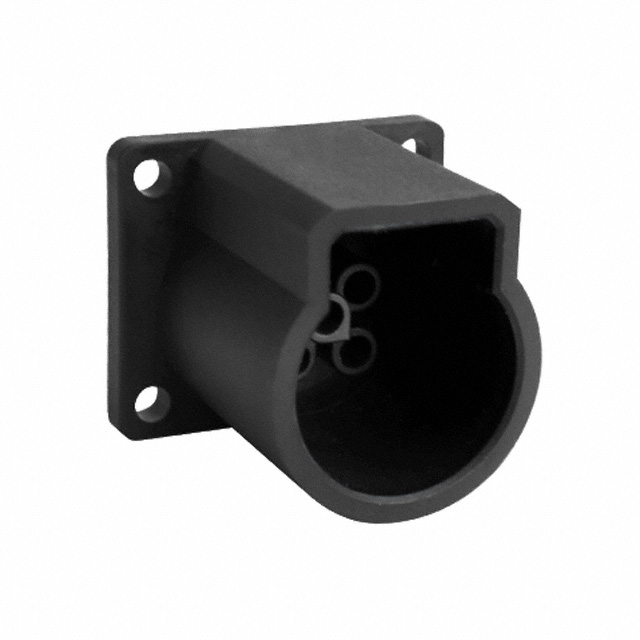

Amphenol Aerospace Operations UTL0103G1P		Flange			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock		Receptacle Housing		4	PE	-40 °C	105 °C		Glass Reinforced Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic				Crimp	16 S	For Female Sockets and Male Pins	Keyed	Black	Contacts Not Included	Circular

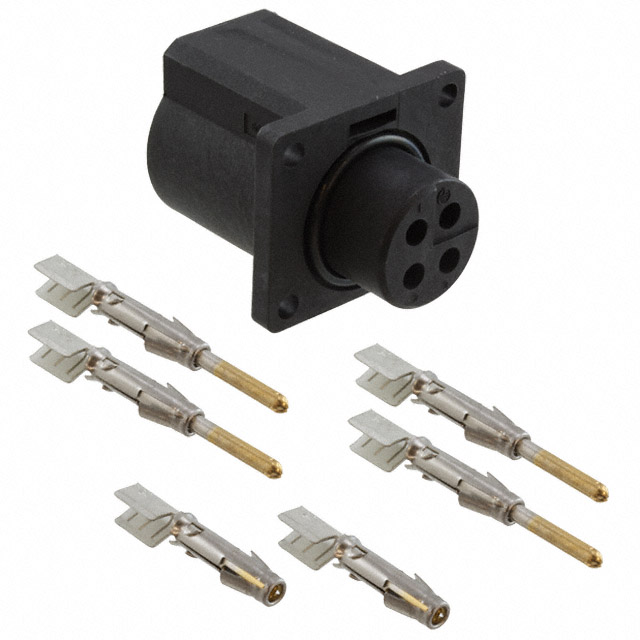

Amphenol Aerospace Operations UTL0103G1P14AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp

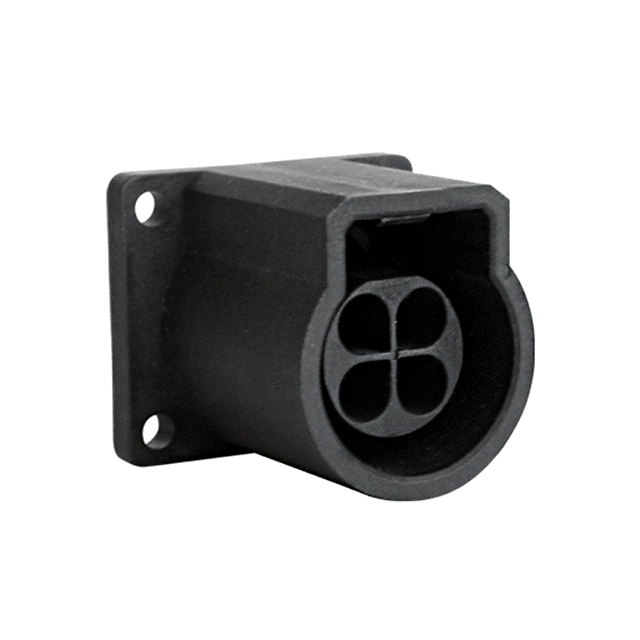

Amphenol Aerospace Operations UTL0103G1S		Flange			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock		Receptacle Housing		4	PE	-40 °C	105 °C		Glass Reinforced Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic				Crimp	16 S	For Female Sockets and Male Pins	Keyed	Black	Contacts Not Included	Circular

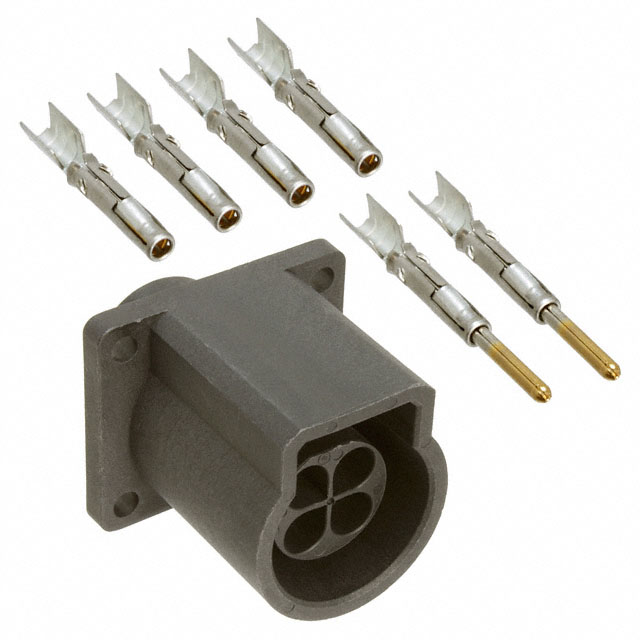

Amphenol Aerospace Operations UTL0103G1S16AWG	Industrial	Flange	Black	0.709 in	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock	UV Resistant	Female Sockets Male Pins Receptacle	Gold	4	PE	-40 °C	105 °C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic	Plastic	Flash	Crimp
Amphenol Aerospace Operations UTL0103G1S03		Flange			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Unshielded	Latch Lock		Receptacle Housing		4	PE	-40 °C	105 °C		Glass Reinforced Nylon Polyamide (PA)	Panel Mount	5	UL94 5VA	UL94	10 mm	3 mm	Thermoplastic				Crimp	16 S	For Female Sockets and Male Pins	Keyed	Gray	Contacts Not Included	Circular
