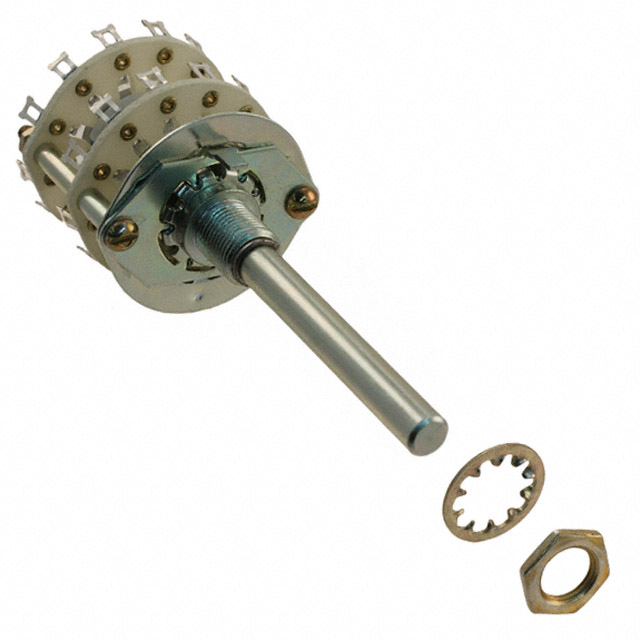

D4G0211 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-11POS 500MA 115V
| Part | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Contact Finish | Circuit per Deck | Actuator Length [x] | Voltage Rating - AC | Number of Positions [Max] | Number of Positions [Min] | Number of Decks | Mounting Type | Angle of Throw | Actuator Type | Actuator Type [diameter] | Termination Style | Contact Material | Index Stops | Contact Timing | Depth Behind Panel [z] | Voltage Rating - DC | Number of Poles per Deck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 1.5 A 500 mA | Silver | SP11T | 47.63 mm | 115 V | 11 | 2 | 2 | Panel Mount | 30 ° | Round | 0.25 in | Solder Lug | Brass | Adjustable | Non-Shorting (BBM) | 28.55 mm | 28 V | 1 |
