086 Series

Catalog

RF CABLE ASSEMBLIES HFLEX BL CA SMR/SM 12" ROHS

Part	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	Cable Type	Overall Impedance	1st Connector	Style	Frequency - Max [Max]	2nd Connector	Color	1st Contact Gender	Length [x]	Length [x]	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Feature	Style [Max]	Style [Min]	2nd Connector	1st Connector	Length	Length
Mini-Circuits 086-12SMRSM+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug Right Angle	SMA to SMA	18 GHz	SMA Plug	Blue	Male	304.8 mm	12 in	Male	Free Hanging (In-Line)

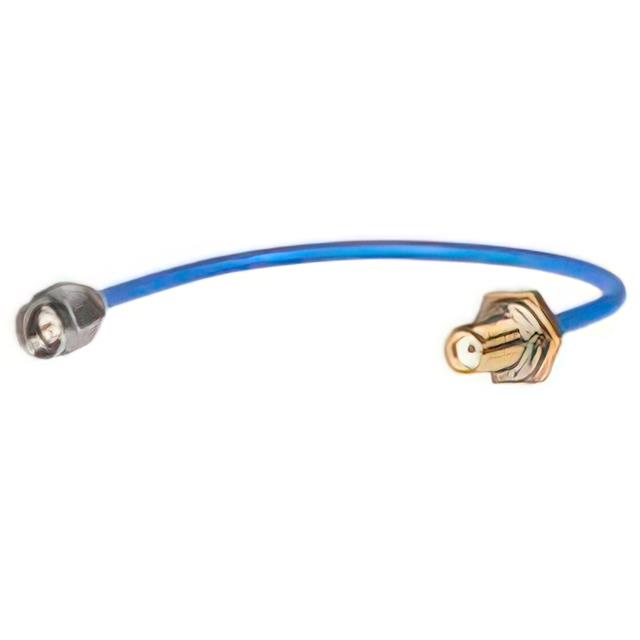

Mini-Circuits 086-6SBSM+	-55 C	105 ░C	Panel Mount	Hand Formable .086	50 Ohms	SMA Jack	SMA to SMA	18 GHz	SMA Plug	Blue	Female	152.4 mm	6 "	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut
Mini-Circuits 086-4KM+	-55 C	85 °C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms			40 GHz		Blue	Male	101.6 mm	4 "	Male	Free Hanging (In-Line)		2.92 mm	2.92 mm	2.92 mm	2.92 mm

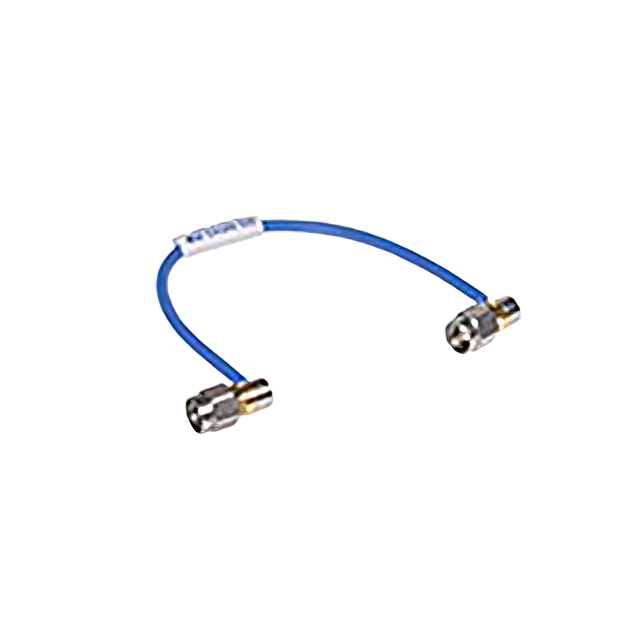

Mini-Circuits 086-3SMRC+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug Right Angle	SMA to SMA	18 GHz	SMA Plug Right Angle	Blue	Male			Male	Free Hanging (In-Line)						3 in	76.2 mm

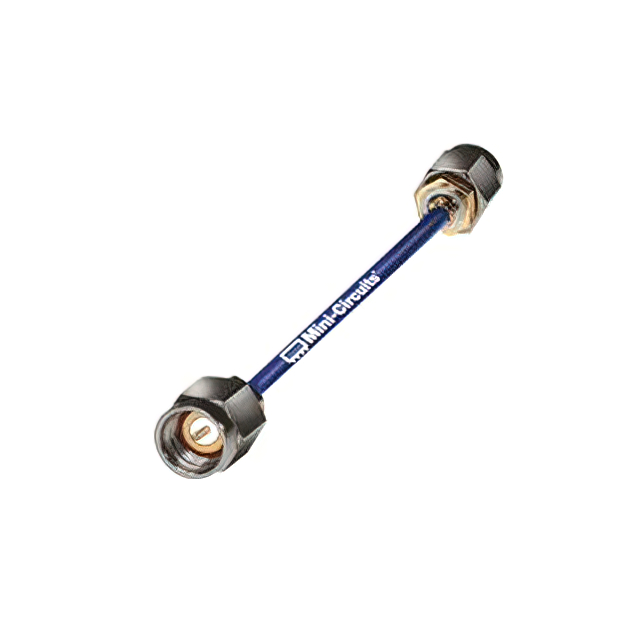

Mini-Circuits 086-36SM+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug	SMA to SMA	18 GHz	SMA Plug	Blue	Male			Male	Free Hanging (In-Line)						36 in	91.44 cm

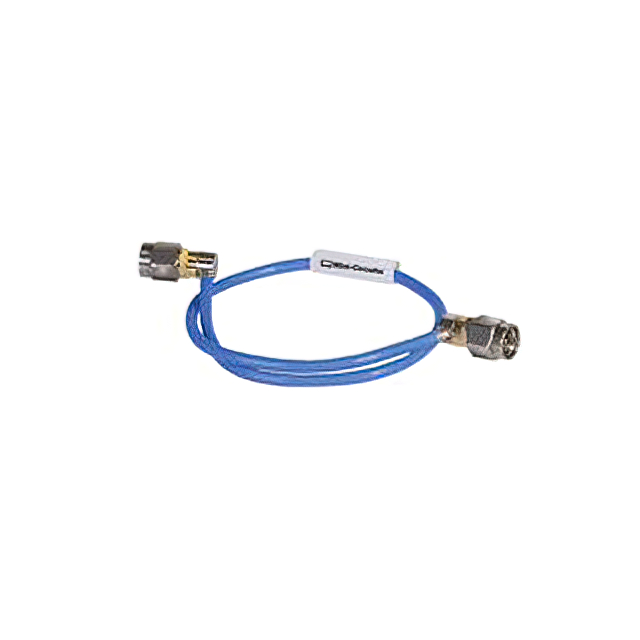

Mini-Circuits 086-2SMR+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug Right Angle	SMA to SMA	18 GHz	SMA Plug Right Angle	Blue	Male			Male	Free Hanging (In-Line)						2 in	50.8 mm
Mini-Circuits 086-18KM+	-55 C	85 °C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms			40 GHz		Blue	Male			Male	Free Hanging (In-Line)		2.92 mm	2.92 mm	2.92 mm	2.92 mm	18 in	457.2 mm
Mini-Circuits 086-2SM+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug	SMA to SMA	18 GHz	SMA Plug	Blue	Male			Male	Free Hanging (In-Line)						2 in	50.8 mm
Mini-Circuits 086-8SMPSM+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug	SMA to SMP	18 GHz	SMP Jack	Blue	Male			Female	Free Hanging (In-Line)						8 in	203.2 mm

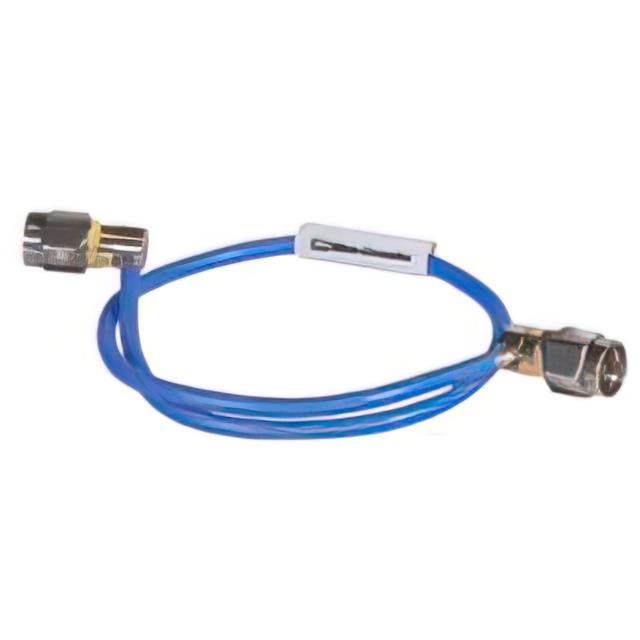

Mini-Circuits 086-9SMR+	-55 C	105 ░C	Free Hanging (In-Line)	Hand Formable .086	50 Ohms	SMA Plug Right Angle	SMA to SMA	18 GHz	SMA Plug Right Angle	Blue	Male			Male	Free Hanging (In-Line)						9 in	228.6 mm
