CVH201610A Series
Manufacturer: Bourns Inc.
Beta
⌘K

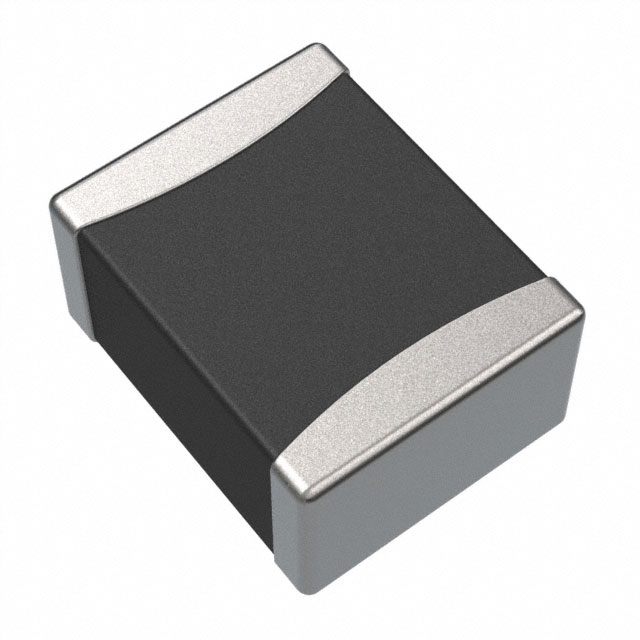

POWER INDUCTORS - SMD IND,2X1.6X.9MM,2.2UH±20%,1.2A,SHD,SMD
| Part | Inductance | DC Resistance (DCR) [Max] | Type | Material - Core | Inductance Frequency - Test | Supplier Device Package | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Frequency - Self Resonant | Ratings | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2.2 µH | 137.5 mOhm | Multilayer | Ferrite | 1 MHz | 0806 | 0806 (2016 Metric) | -55 C | 125 °C | Surface Mount | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 20 % | 50 MHz | AEC-Q200 | 0.039 in | 1 mm | 1.2 A | Shielded |
