ALCOSWITCH HCP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BASIC / SNAP ACTION SWITCHES HCP10A, LGT FORCE,0.250 TERM. SMT ROLLER

...

Part	Current Rating (Amps)	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Differential Travel	Differential Travel	Operating Force	Switch Function	Pretravel	Pretravel	Voltage Rating - AC	Mounting Type	Electrical Life	Operating Position	Operating Position	Overtravel [custom]	Overtravel [custom]	Actuator Type	Release Force

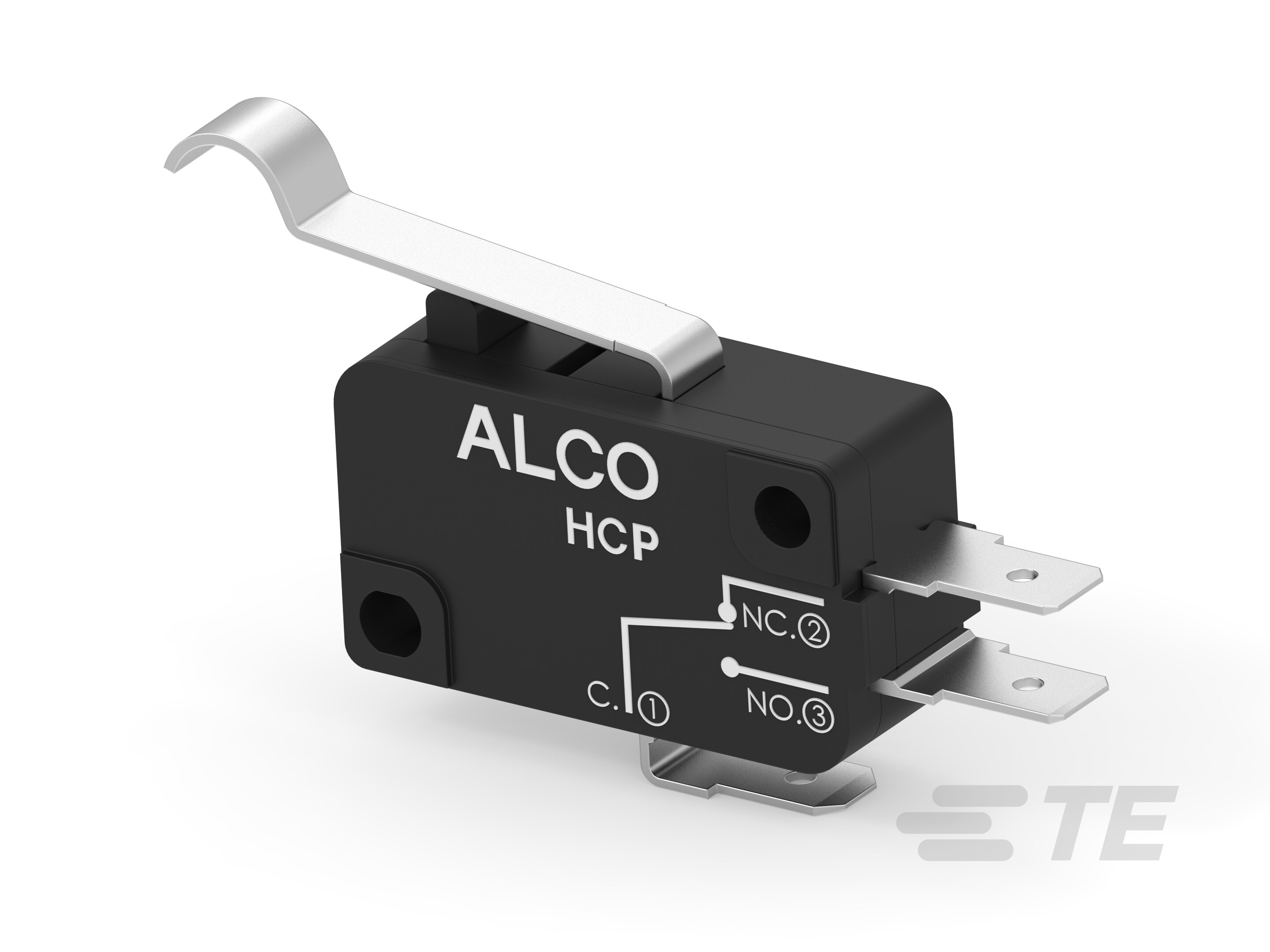

TE Connectivity AMP Connectors HCP10DTE4L04	10 A	Quick Connect - 0.250" (6.3mm)	SPDT	125 °C	-40 C	10000000 Cycles	1.1 mm	0.045 in	90 gf	On-Mom	0.218 in	5.5 mm	125 V	Chassis Mount	10000 Cycles	0.736 in	18.7 mm	1.9 mm	0.075 in	Lever Simulated Roller

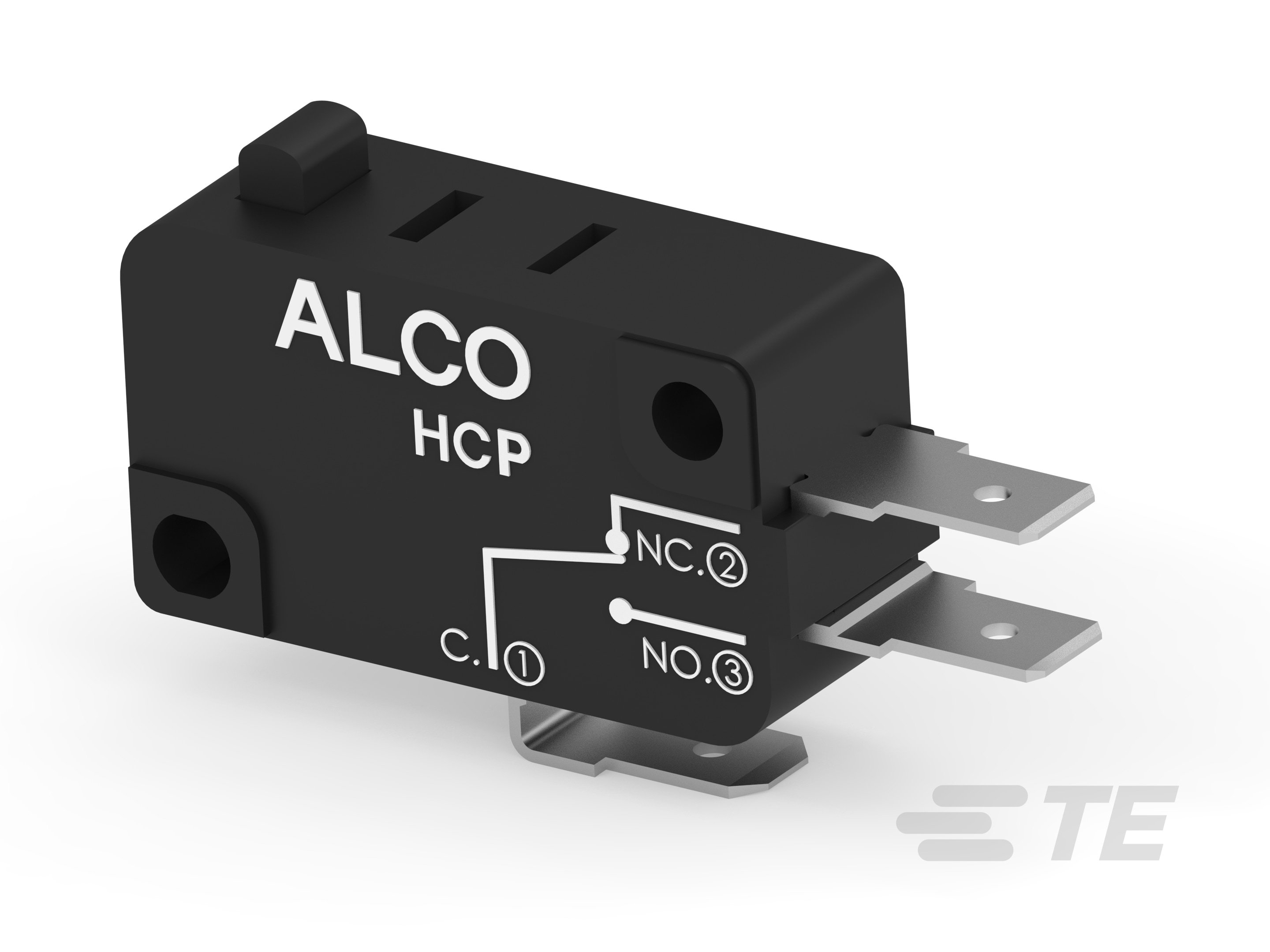

TE Connectivity AMP Connectors HCP20DTD0H04	20 A	Quick Connect	SPDT	125 °C	-40 C	10000000 Cycles	0.4 mm	0.016 in	300 gf	On-Mom	0.075 in	1.9 mm	125 V	Chassis Mount	10000 Cycles	0.579 in	14.7 mm	1 mm	0.039 "	Round (Pin Plunger)
TE Connectivity AMP Connectors HCP16DTE1L04	16 A	Quick Connect - 0.250" (6.3mm)	SPDT	125 °C	-40 C	10000000 Cycles	0.5 mm	0.02 in	150 gf	On-Mom	0.11 in	2.8 mm	125 V	Chassis Mount	10000 Cycles	0.602 in	15.3 mm	1 mm	0.039 "	Lever Straight
TE Connectivity AMP Connectors HCP16DTD1S04	16 A	Quick Connect	SPDT	125 °C	-40 C	10000000 Cycles	0.5 mm	0.02 in	190 gf	On-Mom	0.11 in	2.8 mm	125 V	Chassis Mount	10000 Cycles	0.602 in	15.3 mm	1 mm	0.039 "	Lever Straight
TE Connectivity AMP Connectors HCP16DTE4S04	16 A	Quick Connect - 0.250" (6.3mm)	SPDT	125 °C	-40 C	10000000 Cycles	1.1 mm	0.045 in	120 gf	On-Mom	0.218 in	5.5 mm	125 V	Chassis Mount	10000 Cycles	0.736 in	18.7 mm	1.9 mm	0.075 in	Lever Simulated Roller

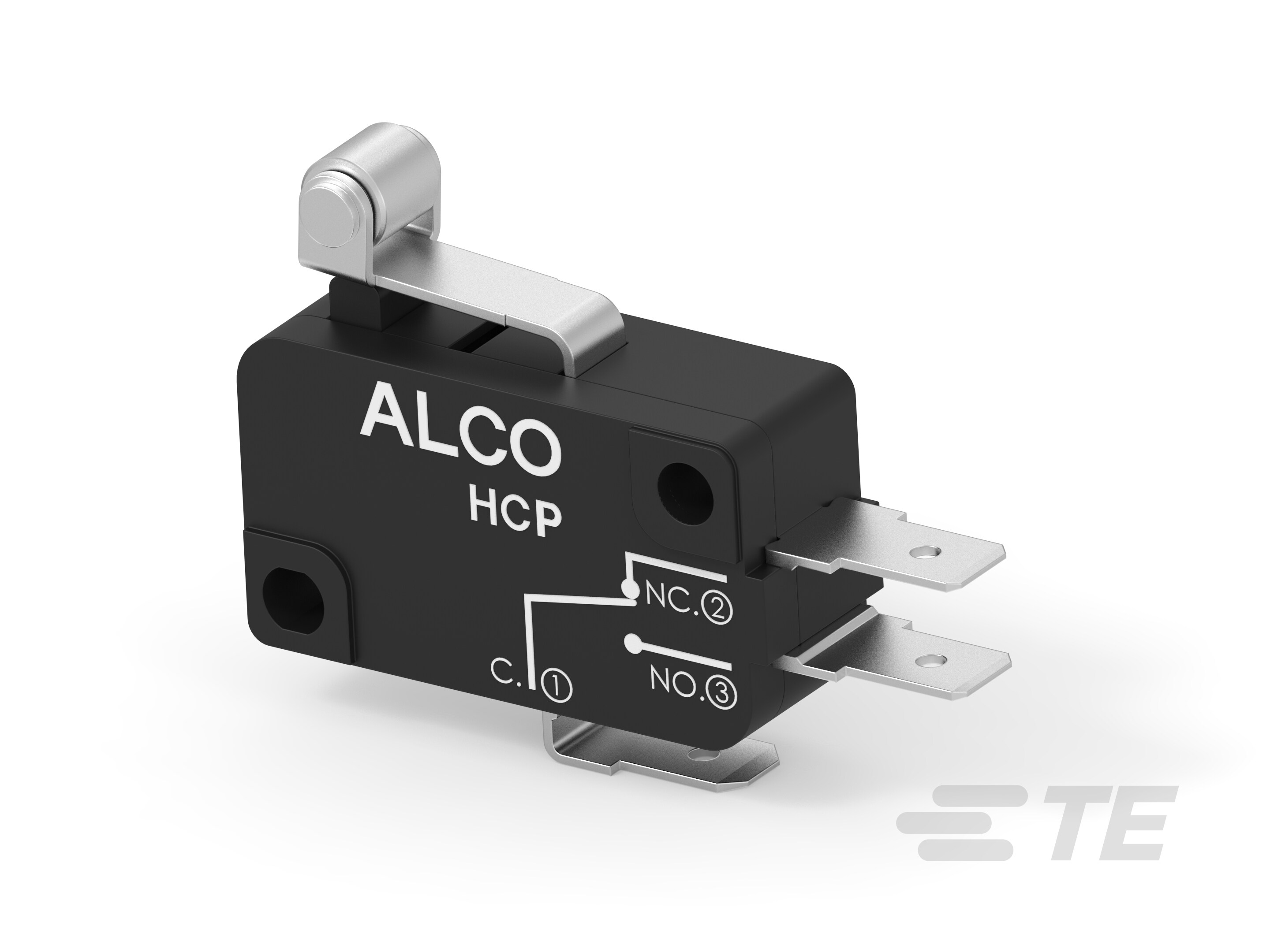

TE Connectivity AMP Connectors HCP26DTD5Q04	26 A	Quick Connect	SPDT	125 °C	-40 C	10000000 Cycles	0.45 mm	0.018 in	375 gf	On-Mom	0.106 in	2.7 mm	125 V	Chassis Mount	10000 Cycles	0.815 in	20.7 mm	1.1 mm	0.045 "	Lever Roller
TE Connectivity AMP Connectors HCP16DTD4L04	16 A	Quick Connect	SPDT	125 °C	-40 C	10000000 Cycles	1.1 mm	0.045 in	90 gf	On-Mom	0.218 in	5.5 mm	125 V	Chassis Mount	10000 Cycles	0.736 in	18.7 mm	1.9 mm	0.075 in	Lever Simulated Roller
TE Connectivity AMP Connectors HCP16DTD3L04	16 A	Quick Connect	SPDT						50 gf		0.366 in	9.3 mm	125 V			0.602 in	15.3 mm			Round (Pin Plunger)	5 gf

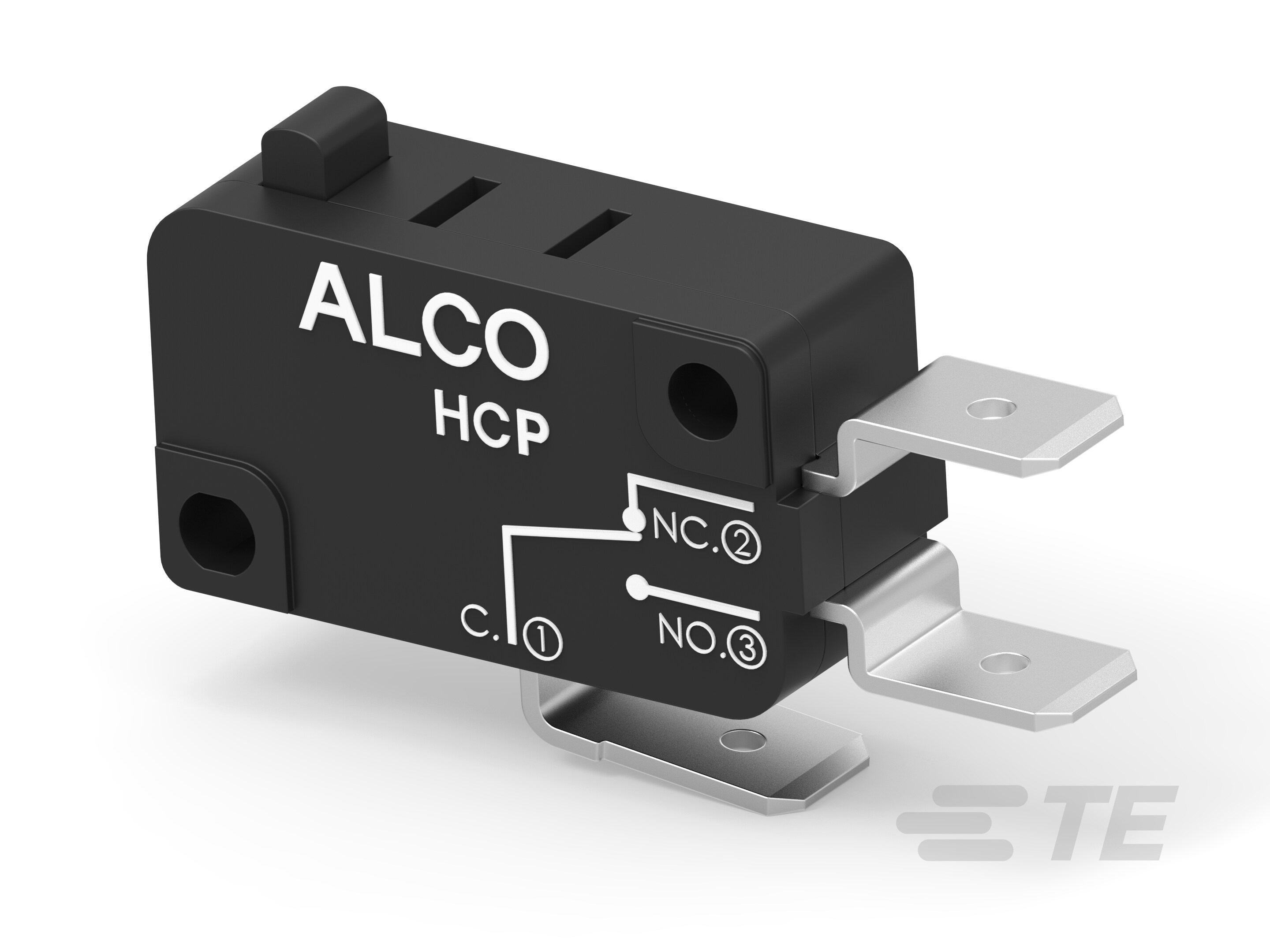

TE Connectivity AMP Connectors HCP10DTE0L04	10 A	Quick Connect	SPDT	125 °C	-40 C				150 gf		0.075 in	1.9 mm	125 V			0.579 in	14.7 mm	1 mm	0.039 "	Round (Pin Plunger)	25 gf
TE Connectivity AMP Connectors HCP10DTE4S04	10 A	Quick Connect - 0.250" (6.3mm)	SPDT	125 °C	-40 C	10000000 Cycles	1.1 mm	0.045 in	120 gf	On-Mom	0.218 in	5.5 mm	125 V	Chassis Mount	10000 Cycles	0.736 in	18.7 mm	1.9 mm	0.075 in	Lever Simulated Roller
