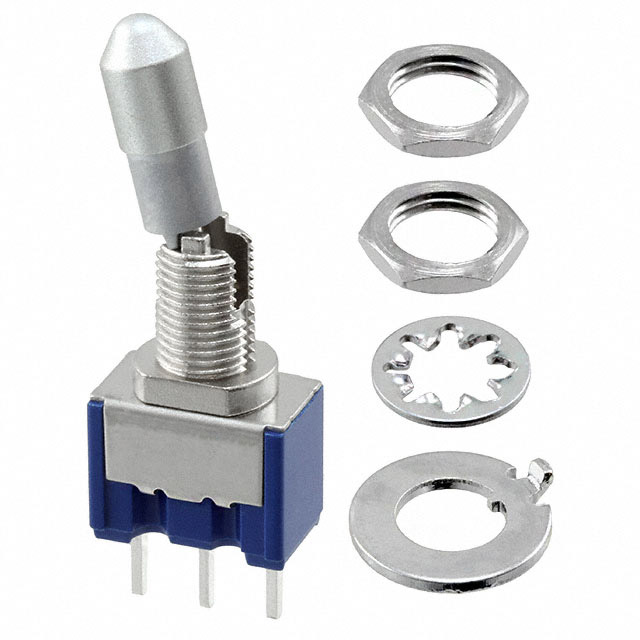

8E1012 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Termination Style | Voltage Rating - AC | Illumination | Circuit | Switch Function | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Length [x] | Mounting Type | Actuator Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | PC Pin | 125 V | Non-Illuminated | SPDT | On-On | 6.5 mm | 4 A 6 A | 16.5 mm | Panel Mount | Locking Lever | 30 V | 85 °C | -30 ░C | 1/4-40 | Sealed - Flux Protection |
