PRASD3 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

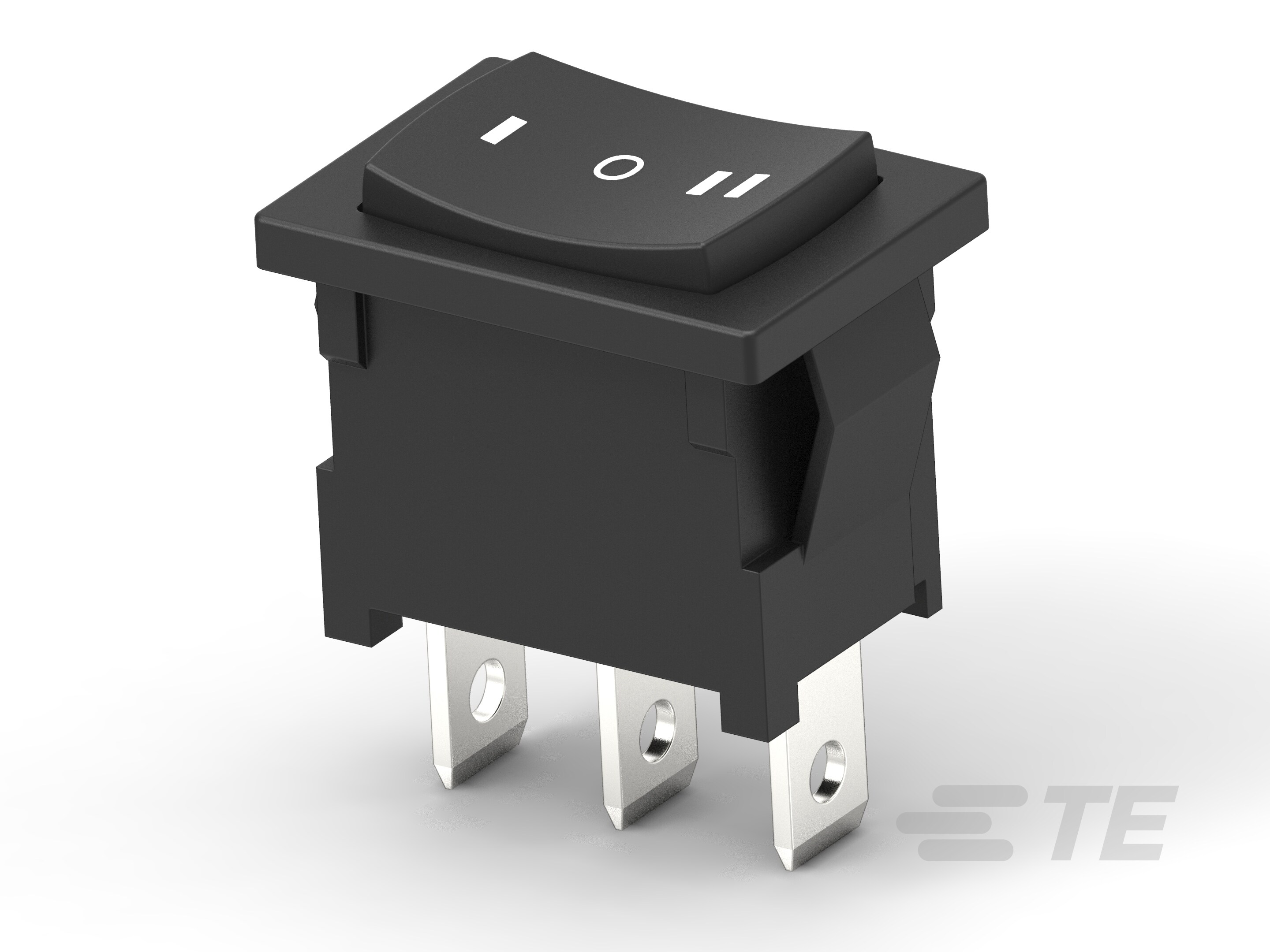

SWITCH ROCKER SPDT 16A 125V
| Part | Electrical Life | Mechanical Life | Approval Agency | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Actuator Marking | Actuator Type | Ingress Protection | Switch Function | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | ENEC UL VDE | Panel Mount Snap-In | 19.2 mm | 13 mm | Black | - O = | Concave (Curved) | Dust Proof | On-Off-On | 125 V | 85 °C | -20 ░C | SPDT | 16 A | Quick Connect |
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | ENEC UL VDE | Panel Mount Snap-In | 19.2 mm | 13 mm | Black | I O II | Concave (Curved) | Dust Proof | On-Off-On | 125 V | 85 °C | -20 ░C | SPDT | 16 A | Quick Connect |
