9104-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

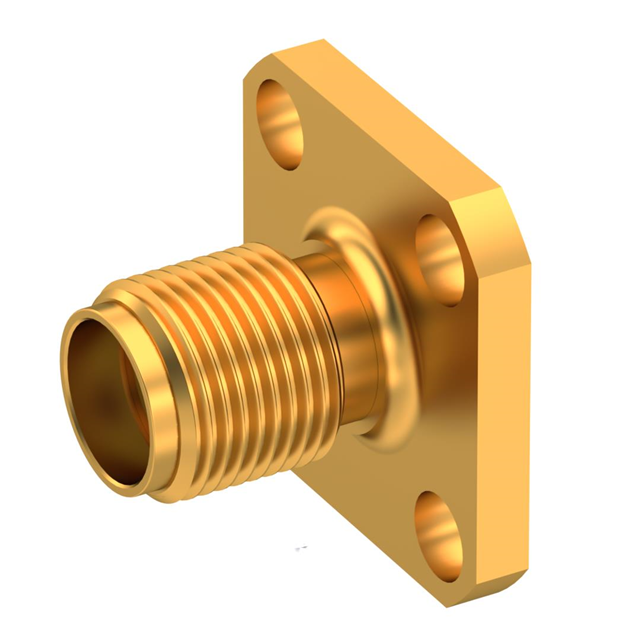

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Body Finish | Center Contact Plating | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shield Termination | Impedance | Frequency - Max [Max] | Connector Type | Housing Color | Contact Termination | Connector Style | Center Contact Material | Mounting Feature | Fastening Type | Mounting Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | 50 Ohms | 18 GHz | Female Socket Jack | Gold | Solder Tab | SMA | Beryllium Copper | Flange | Threaded | Panel Mount Through Hole | 1 |
