TL3313 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Outline [y]	Outline [x]	Illumination	Mounting Type	Switch Function	Actuator Orientation	Circuit	Termination Style	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Force

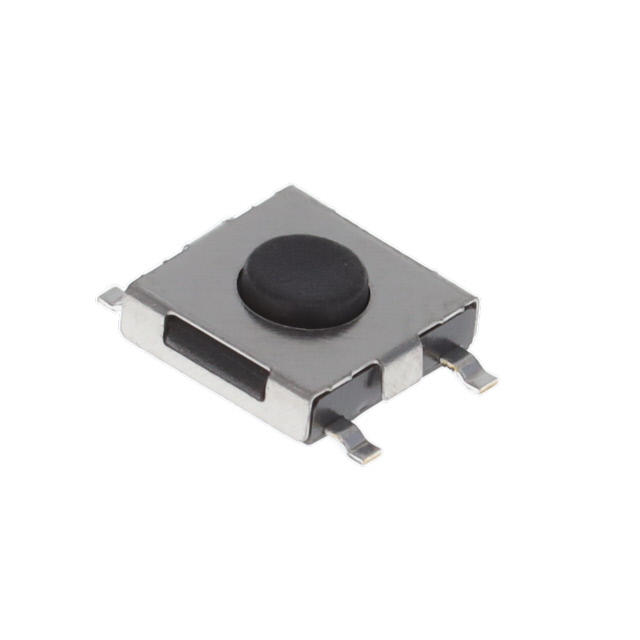

E-Switch TL3313AF250QG	0.25 mm	100000 Cycles	-20 ░C	70 °C	Standard	4.8 mm	4.8 mm	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	SPST-NO	Gull Wing	0.05 A 12 VDC	1.5 mm	0.25 kgf

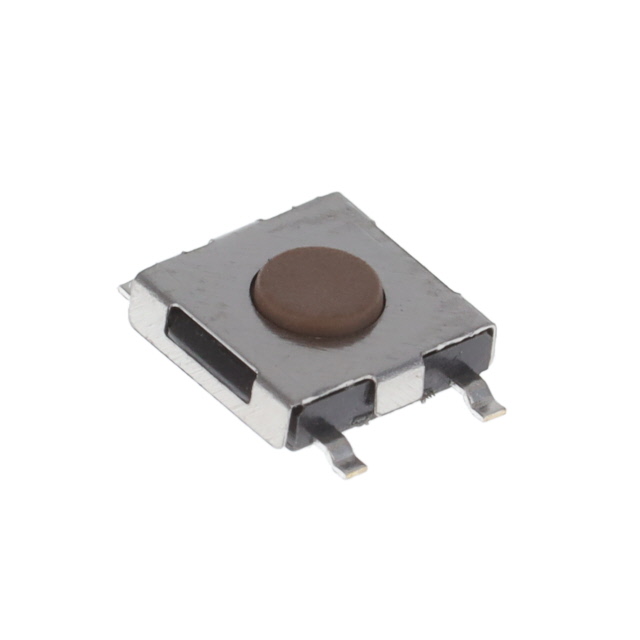

E-Switch TL3313AF100QG	0.25 mm	100000 Cycles	-20 ░C	70 °C	Standard	4.6 mm 4.8 mm	4.6 mm 4.8 mm	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	SPST-NO	Gull Wing	0.05 A 12 VDC	1.5 mm	100 gf

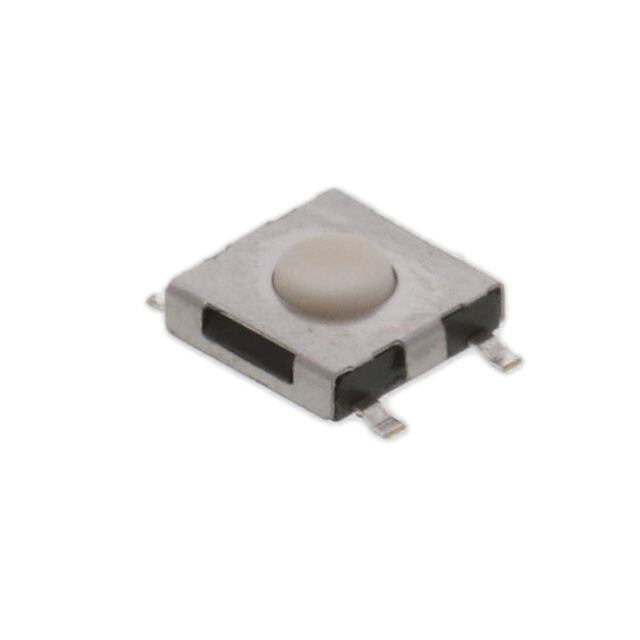

E-Switch TL3313AF160QG	0.25 mm	100000 Cycles	-20 ░C	70 °C	Standard	4.8 mm	4.8 mm	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	SPST-NO	Gull Wing	0.05 A 12 VDC	1.5 mm	160 gf
