U32D Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated	Package / Case	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Tolerance	Lifetime @ Temp.	Polarization	Tolerance [Min]	Tolerance [Max]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]
Chemi-Con E32D451CSN123MFM9U	-40 C	105 ░C	12000 µF	450 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	8.661 in	220 mm	3.504 in	89 mm	1.252 in	31.8 mm	20 %	2000 Hrs	Polar
Chemi-Con E32D400LPN513UDE3U	-40 C	105 ░C	51 mF	40 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	5.63 in	143 mm	2.5 in	63.5 mm	1.126 "	28.6 mm		2000 Hrs	Polar	-10 %	75 %

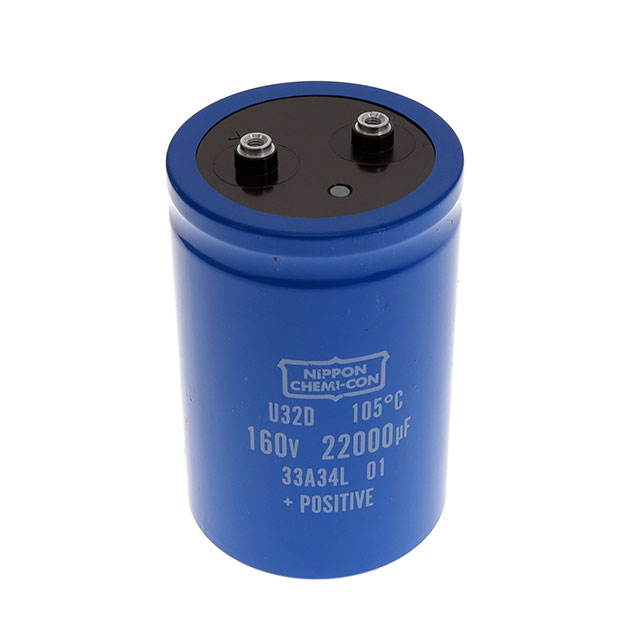

Chemi-Con E32D161HPN223MEB7U	-40 C	105 ░C	22000 µF	160 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	4.625 in	117.48 mm	3 in	76.2 mm	1.25 in	31.75 mm	20 %	2000 Hrs	Polar			24.09 A	32.0397 A	11.3 mOhm
Chemi-Con E32D750HPC253UEA5M	-40 C	105 ░C	25000 µF	75 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	4.125 in		3 in	76.2 mm	1.25 in	31.75 mm		2000 Hrs	Polar	-10 %	75 %				104.78 mm
Chemi-Con E32D630HPN683MCE3M	-40 C	105 ░C	68000 µF	63 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	5.625 in	142.88 mm	2 in	50.8 mm	0.875 "	22.22 mm	20 %	2000 Hrs	Polar			30.31 A	33.9472 A	6 mOhm
Chemi-Con E32D500HPN184MEB7M	-40 C	105 ░C	180000 µF	50 VDC	Radial Can - Screw Terminals	General Purpose	Chassis Mount	4.625 in	117.48 mm	3 in	76.2 mm	1.25 in	31.75 mm	20 %	2000 Hrs	Polar			38.22 A	42.8064 A	6.5 mOhm
Chemi-Con E32D201CPN223MEE3U	-40 C	105 ░C	22000 µF	200 VDC	Radial Can - Screw Terminals	General Purpose	Chassis Mount	5.63 in	143 mm	3 in	76.2 mm	1.252 in	31.8 mm	20 %	2000 Hrs	Polar			26.29 A	34.9657 A	9.8 mOhm
Chemi-Con E32D500HPN333TED0U	-40 C	105 ░C	33000 µF	50 VDC	Radial Can - Screw Terminals	General Purpose	Chassis Mount	5.118 "	130 mm	3 in	76.2 mm	1.252 in	31.8 mm		2000 Hrs	Polar	-10 %	50 %
Chemi-Con E32D150HPN863UDE3U	-40 C	105 ░C	86 mF	15 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	5.63 in	143 mm	2.5 in	63.5 mm	1.126 "	28.6 mm		2000 Hrs	Polar	-10 %	75 %
Chemi-Con E32D101HPN183MCB7M	-40 C	105 ░C	18000 µF	100 V	Radial Can - Screw Terminals	General Purpose	Chassis Mount	4.625 in	117.48 mm	2 in	50.8 mm	0.875 "	22.22 mm	20 %	2000 Hrs	Polar			20.13 A	24.5586 A	9.8 mOhm
