17982-5P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

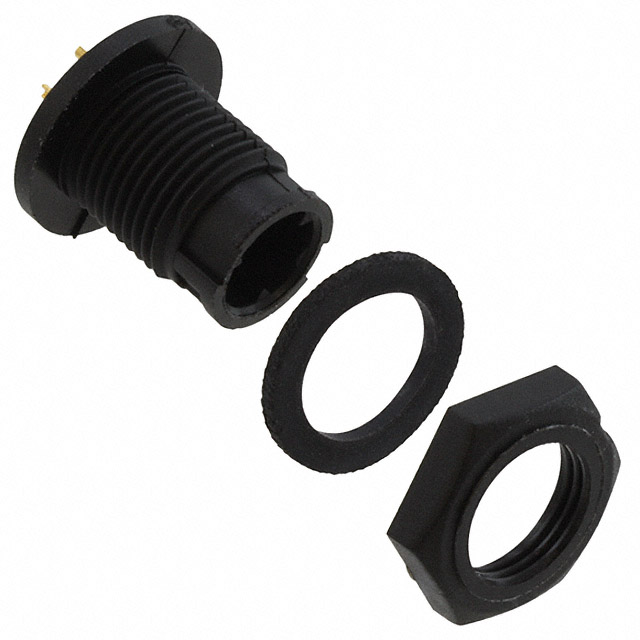

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, PANEL MOUNT RECEPTACLE, 5 CONTACTS, SOLDER PIN, BAYONET
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Color | Fastening Type | Number of Positions | Current Rating (Amps) | Contact Material | Ingress Protection | Mounting Type | Voltage Rating | Shielding | Mounting Feature | Applications | Contact Finish - Mating | Primary Material | Orientation | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 85 °C | -40 C | UL94 HB | Black | Bayonet Lock | 5 | 4 A | Copper Alloy | IP67 - Dust Tight Waterproof | Panel Mount | 600 VAC | Unshielded | Bulkhead - Front Side Nut | Data Industrial Instrumentation Medical | Gold | Plastic | B | Receptacle Male Pins |
