MON Series

Catalog

ANTENNAS ANTENNA MON WIFI6/6E SWIVEL SMA

Part	VSWR	Return Loss	Power - Max [Max]	Frequency (Center/Band)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Gain	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Antenna Type	Frequency Group	RF Family/Standard	Applications

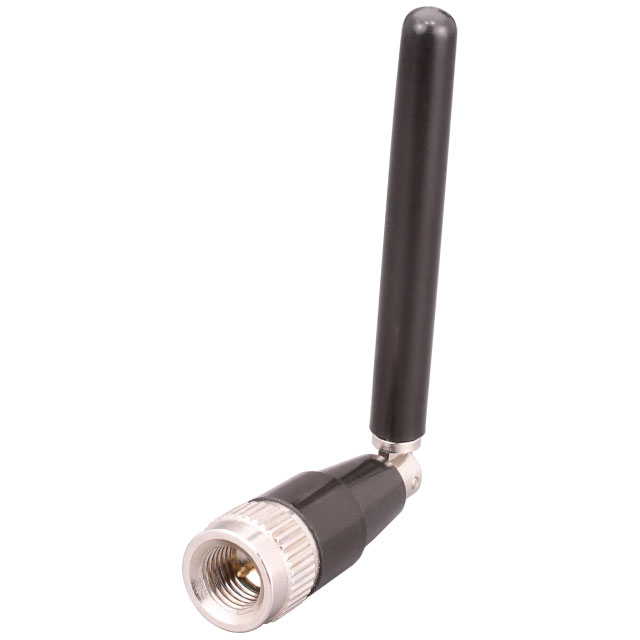

TE Connectivity AMP Connectors ANT-W63-MON-SMA	2 2.3 2.4	-9.5 dB -8.1 dB -7.7 dB	5 W	2.4 GHz 5 GHz 6 GHz	72 mm	2.835 in	Connector Mount	3.2 dBi 3.4 dBi 4.2 dBi	5.85 GHz 7.125 GHz 2485 MHz	2.4 GHz 5.15 GHz 5.925 GHz	3	Tilt/Swivel Whip	Wide Band	WiFi

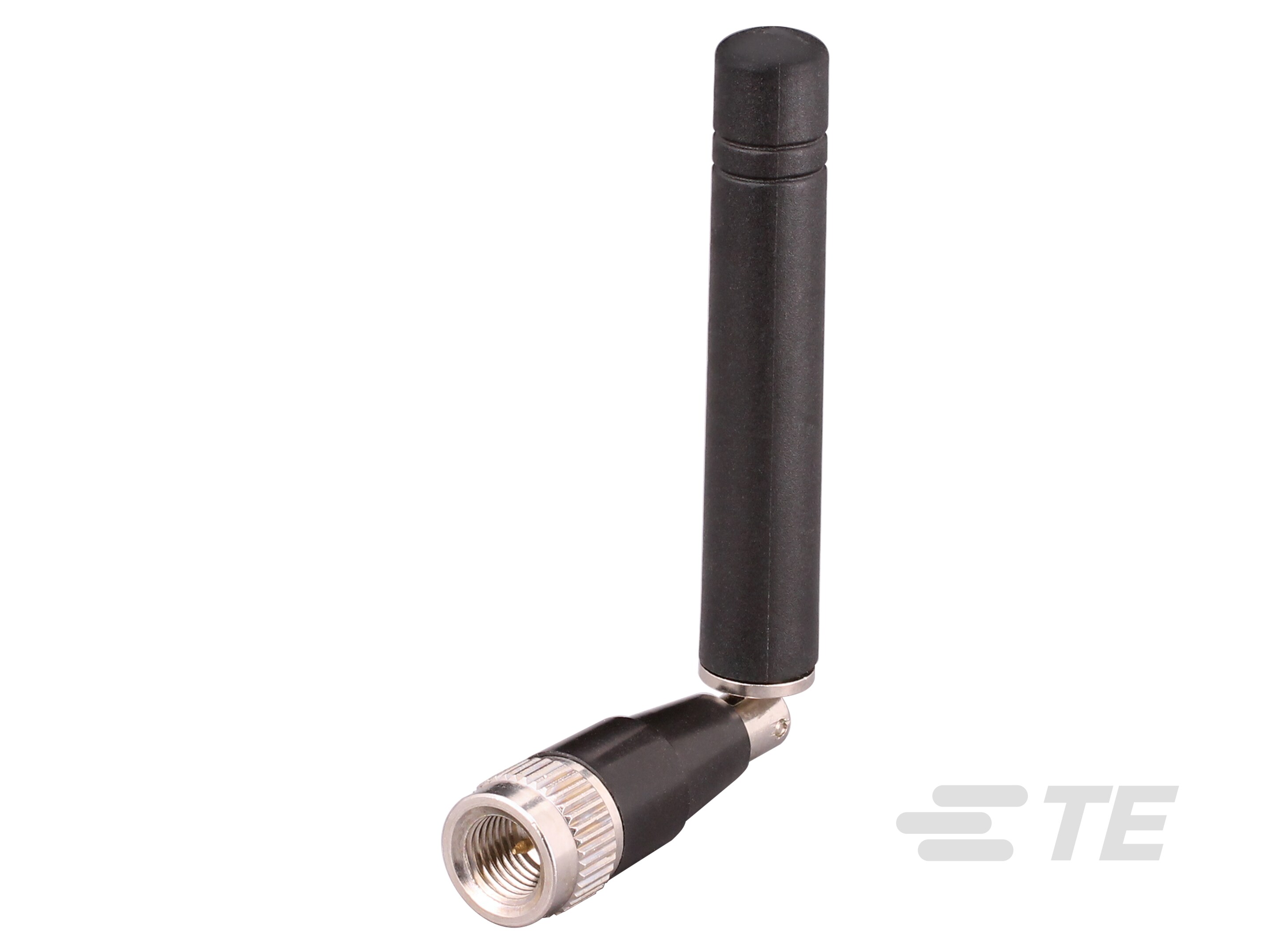

TE Connectivity AMP Connectors ANT-LTE-MON-SMA-L	1.9 2.2 2.3 2.6 3.2 3.3	-10.1 dB -8.5 dB -8.1 dB -7 dB -5.6 dB -5.3 dB	10 W	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 3.3 GHz 3.5 GHz 3.7 GHz 600 MHz 700 MHz 800 MHz 850 MHz 900 MHz	78.74 mm	3.1 in	Connector Mount	3.4 dBi 3.9 dBi 4.1 dBi 4.6 dBi 4.8 dBi 5 dBi	2.2 GHz 2.4 GHz 2.7 GHz 3.8 GHz 698 MHz 803 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 3.3 GHz 617 MHz 698 MHz 791 MHz	7	Tilt/Swivel Whip	Wide Band	Cellular General ISM	4G CAT-M1 CBRS Cellular GSM LPWA LTE LTE-M NB-IoT UMTS
