GST18U12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

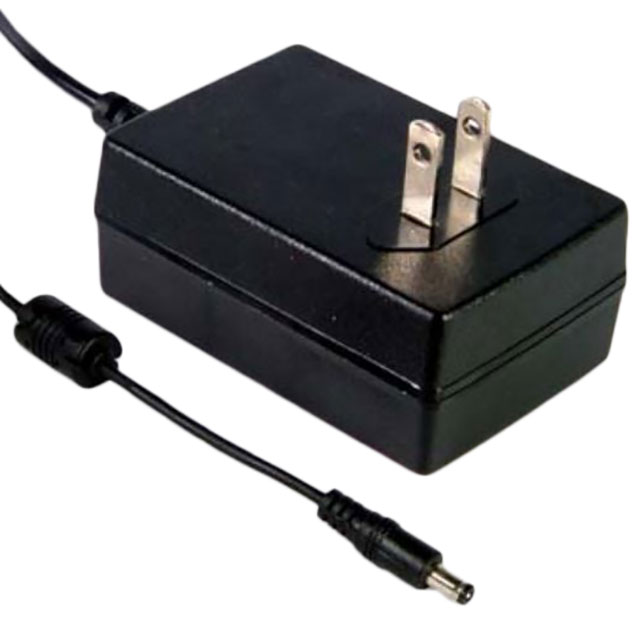

AC/DC WALL MOUNT ADAPTER 12V 18W
| Part | Applications | Efficiency | Form | Input Connector | Input Type | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | No Load Power Consumption | Output Connector [diameter] | Output Connector | Output Connector [x] | Cord Length | Cord Length | Current - Output (Max) [Max] | Region Utilized | Voltage - Output | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | Level VI | Wall Mount | NEMA 1-15P | Fixed Blade | 18 W | BSMI CB cULus EAC | -30 ░C | 70 °C | 75 mW | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 1.2 m | 47.2 in | 1.5 A | North America | 12 V | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Positive Center |
