NYW06025012 Series
Manufacturer: YS TECH USA
Beta
⌘K

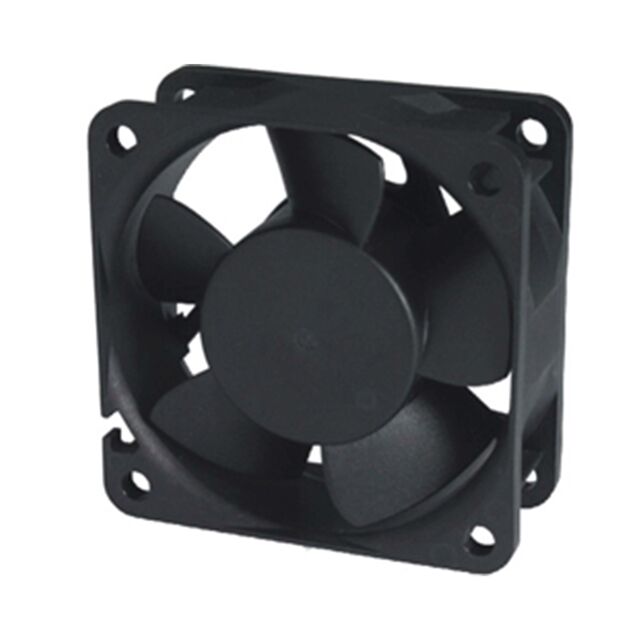

FAN AXIAL 60X25MM 12VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Width [y] | Air Flow | Air Flow | Fan Type | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Termination | Static Pressure | Static Pressure | Bearing Type | Voltage - Rated | RPM | Noise | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | Polybutylene Terephthalate (PBT) | 190 mA | 65000 Hrs | 7 V | 13.2 VDC | 25 mm | 0.873 m³/min | 31.2 CFM | Tubeaxial | 2.28 W | 60 mm | 60 mm | 2 Wire Leads | 124.5 Pa | 0.5 in H2O | Ball | 12 VDC | 6500 RPM | 41 dB | |
YS TECH USA | Polybutylene Terephthalate (PBT) | 120 mA | 75000 Hrs | 7 V | 13.2 VDC | 25 mm | 0.685 m³/min | 24.5 CFM | Tubeaxial | 1.44 W | 60 mm | 60 mm | 2 Wire Leads | 91.2 Pa | Ball | 12 VDC | 5100 RPM | 36 dB | 0.366 in H2O |
