0395-2 Series

Catalog

CONN PIN RCPT .065-.082 SWAGE

Part	Board Thickness	Board Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall	Length - Overall [x]	Contact Finish
Mill-Max Manufacturing Corp. 0395-2-15-15-07-27-10-0	1.57 mm	0.062 "	-55 C	125 °C	0.096 in	2.44 mm	Swage	2.08 mm	0.082 "	0.065 "	1.65 mm	3.73 mm	0.147 in	Turret	30 Áin	0.76 Ám	Beryllium Copper	0.375 "	9.53 mm	2.72 mm	0.107 in	16.18 mm	0.637 in	Gold

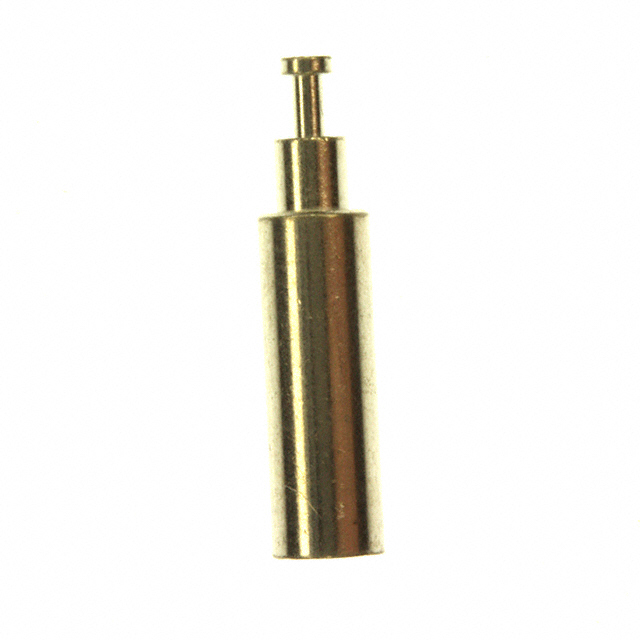

Mill-Max Manufacturing Corp. 0395-2-15-01-07-14-10-0	1.57 mm	0.062 "	-55 C	125 °C	0.096 in	2.44 mm	Swage	2.08 mm	0.082 "	0.065 "	1.65 mm	3.73 mm	0.147 in	Turret	10 Áin	0.25 Ám	Beryllium Copper	0.375 "	9.53 mm	2.72 mm	0.107 in	16.18 mm	0.637 in	Gold
Mill-Max Manufacturing Corp. 0395-2-15-01-07-27-10-0	1.57 mm	0.062 "	-55 C	125 °C	0.096 in	2.44 mm	Swage	2.08 mm	0.082 "	0.065 "	1.65 mm	3.73 mm	0.147 in	Turret	30 Áin	0.76 Ám	Beryllium Copper	0.375 "	9.53 mm	2.72 mm	0.107 in	16.18 mm	0.637 in	Gold
