SV4FW3 Series
Manufacturer: E-Switch
Beta
⌘K

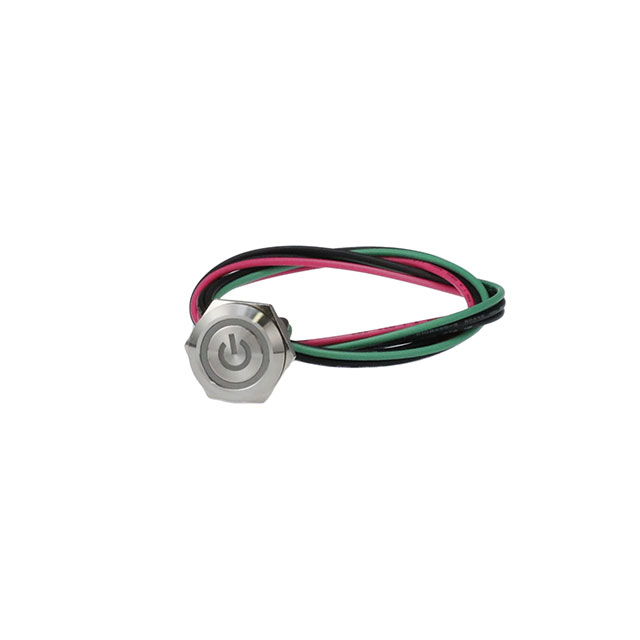

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON)
| Part | Electrical Life | Ingress Protection | Illumination Type, Color | Current Rating (Amps) | Mounting Type | Voltage Rating - DC | Actuator Marking | Type | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) | Color - Actuator/Cap | Switch Function | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | IP67 - Dust Tight Waterproof | Blue LED | 2 A | Panel Mount Front | 36 VDC | No Marking | Anti-Vandal Illuminated | SPST-NO | 19 mm | -20 ░C | 70 °C | 3.1 VDC | Silver | Off-Mom | Button Flush Round | Wire Leads |
 E-Switch | 200000 Cycles | IP67 - Dust Tight Waterproof | Blue LED Red | 2 A | Panel Mount Front | 36 VDC | No Marking | Anti-Vandal Illuminated | SPST-NO | 19 mm | -20 ░C | 70 °C | 2 VDC 3.1 VDC | Silver | Off-Mom | Button Flush Round | Wire Leads |
