8469 Series
Manufacturer: Belden Inc.
Beta
⌘K

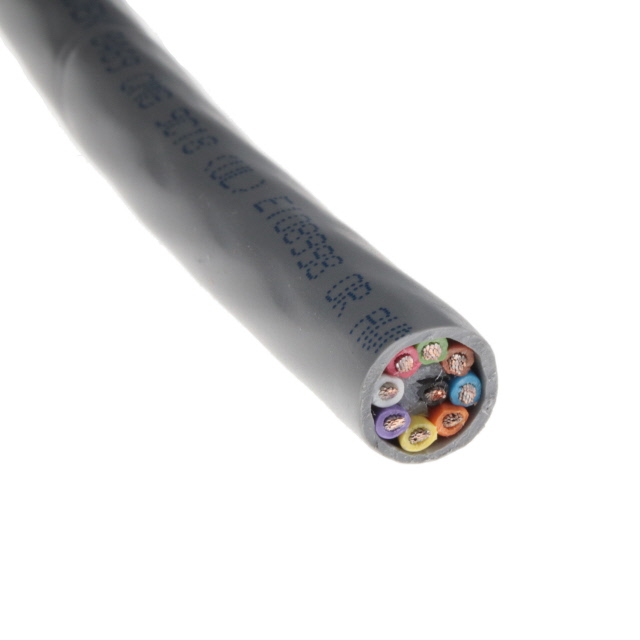

CABLE 9COND 18AWG CHROME
| Part | Length | Length | Wire Gauge | Voltage | Number of Conductors | Ratings | Jacket (Insulation) Material | Conductor Insulation | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 76.2 m | 250 ft | 18 AWG | 300 VDC | 9 | UL Style 2598 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Chrome | -20 ░C | 60 °C | Copper Tinned | Audio Control Instrumentation | 0.94 mm | 0.037 in | 30 AWG | 19 | Multi-Conductor | ||
Belden Inc. | 18 AWG | 9 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Chrome | -20 ░C | 60 °C | Copper Tinned | Audio Control Instrumentation | 0.94 mm | 0.037 in | 30 AWG | 19 | Multi-Conductor | 100 ft | 30.5 m | ||||
 Belden Inc. | 304.8 m | 1000 ft | 18 AWG | 300 VDC | 9 | UL Style 2598 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Chrome | -20 ░C | 60 °C | Copper Tinned | Audio Control Instrumentation | 0.94 mm | 0.037 in | 30 AWG | 19 | Multi-Conductor |
