UCC252 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MODULE FOR UCC25230-754
| Part | Outputs and Type [custom] | Outputs and Type [custom] | Supplied Contents | Power - Output | Board Type | Voltage - Output | Contents | Regulator Topology | Utilized IC / Part | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Frequency - Switching | Main Purpose | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

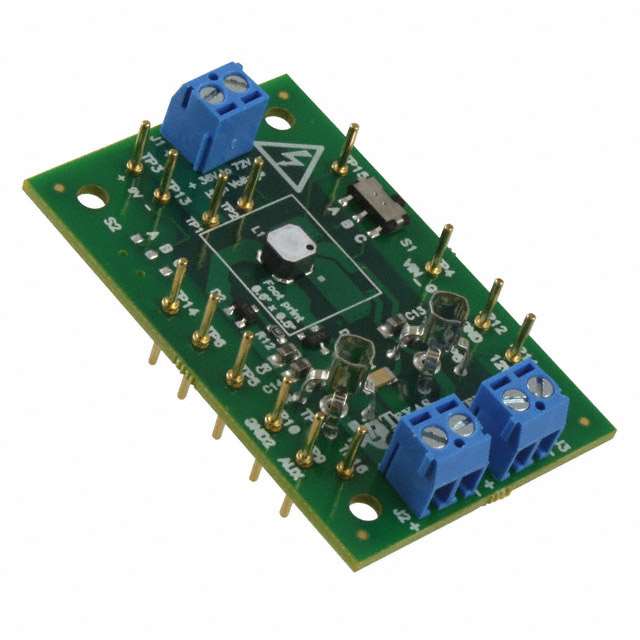

 Texas Instruments | 1 | 1 | Board(s) | 1.5 W | Fully Populated | 12 V | Board(s) | Buck | UCC25230 | 65 mA | 36 V | 72 V | 1 Isolated Output 1 Non-Isolated Output | 380 kHz | DC/DC Step Down | |

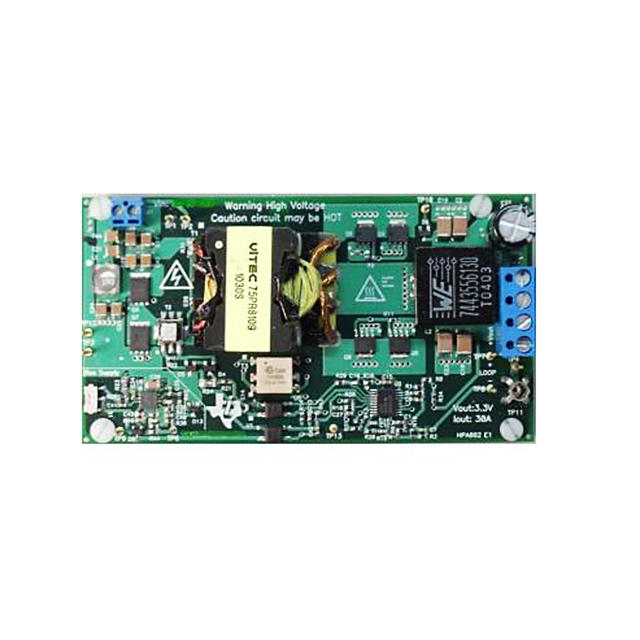

 Texas Instruments | Board(s) | 100 W | Fully Populated | 3.3 V | Board(s) | Buck | UCC25230 UCC28250 | 30 A | 36 V | 72 V | 1 Isolated Output Isolated | 200 kHz | DC/DC Step Down | 1 |
