9432-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

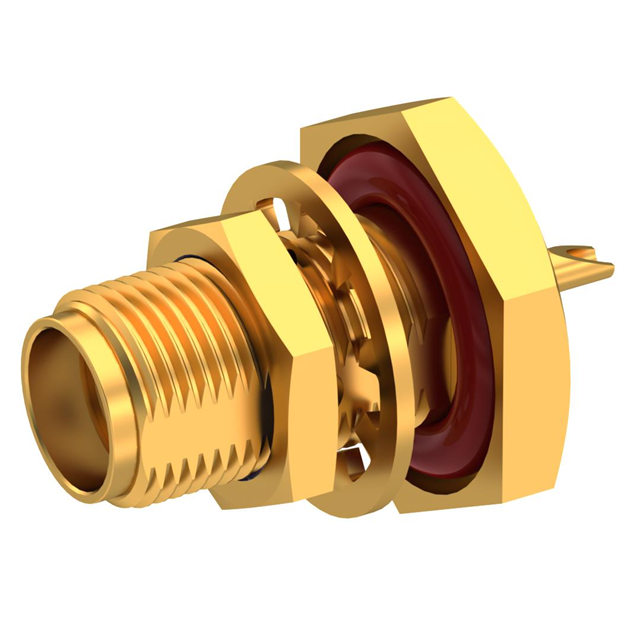

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Body Finish | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Mounting Feature | Mounting Type | Frequency - Max [Max] | Number of Ports | Connector Style | Contact Termination | Housing Color | Shield Termination | Fastening Type | Center Contact Material | Connector Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Stainless Steel | Bulkhead - Front Side Nut | Panel Mount | 18 GHz | 1 | SMA | Solder | Gold | Solder | Threaded | Beryllium Copper | Female Socket Jack | 50 Ohms |
